Schmartboard 1.27mm Pitch Soic !!smt Protoshield Arduino!! Diy! Makers!

US $6.98

Kountze, Texas, United States
Feb 25th

Open on mobile:
QR code

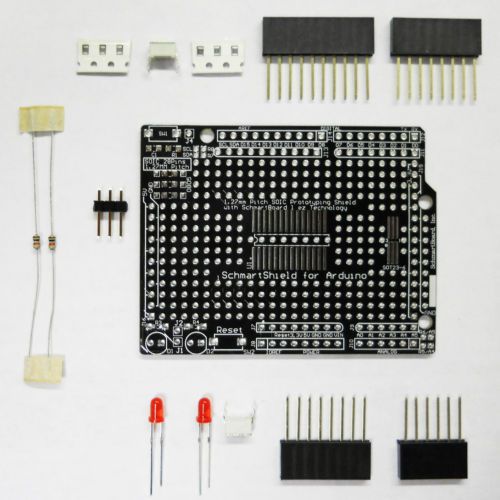

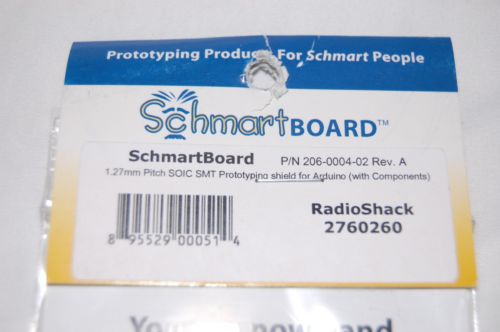

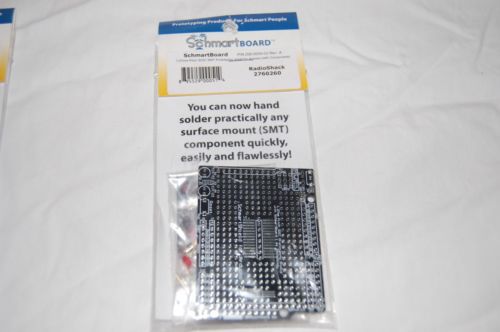

Welcome to SchmartBoard! SchmartBoard is the destination for people who want to hand solder surface mount (SMT) components. Are you an engineer, technician, educator, student or DIY hobbyist who has avoided utilizing SMT components? Those days are officially over, because with SchmartBoard practically anyone can hand solder SOIC, QFP, PLCC, QFN, BGA and discrete surface mount components. Forget all of those difficult hand soldering techniques and special surface mount soldering tools. With SchmartBoard hand soldering surface mount components is even easier than hand soldering through hole. Instead of denying yourself the most current chip technology or paying a fortune for prototyping, you can now use today’s most advance chip technologies in your circuits. SchmartBoard|ez makes hand soldering SMT parts fast, easy and flawless. 206-0004-02 1.27mm Pitch SOIC Surface Mount Prototyping shield for Arduino Uno (Kitted with Components) Schmartboard has made surface mount components available to Arduino users. These boards utilize our "EZ" soldering technology to assure fast, easy and flawless soldering. 1.27mm pitch SOIC footprint for prototyping SOT23-6 footprint for prototyping Onboard reset button for the Arduino IC Additional Push-Button switch circuit 5V/GND rail for easy connection 3.3V/GND rail for easy connection 2 General purpose LEDs Optional Pull-up resistors footprints (Through-Hole or SMD) for I2C Spare 0805 footprint x3 Surface Mount bypass footprints available on the bottom side Kit Includes: Standard Components Qty 1 – PCB, Surface Mount Prototyping Shield for Arduino Qty 2 – 1x1 Single pin male header, Through-Hole Qty 2 - LED red color, Through-Hole Qty 2 - 1x8 0.1" spacing stackable female header, Through-Hole Qty 1 - 1x6 0.1" spacing stackable female header, Through-Hole Qty 1 - 1x10 0.1" spacing stackable female header, Through-Hole Qty 2 - Resistor 1k ohm, Through-Hole Qty 1 - Push-button Switch, Through-Hole Optional Reset Circuit Components Qty 1 - Push-button Switch, Through-Hole Qty 1 - Capacitor 0.1uF 0805, Surface Mount Qty 1 - Resistor 1k ohm 0805, Surface Mount --- (BLACK COLOR CODED) Qty 1 – 1x1 Single pin male header, Through-Hole Bill of Material (pdf) Schematic (pdf) Assembly Instructions (pdf) Product Review 1 Product Review 2 Product Review 3 Product Review 4 Mechanical Dimensions (pdf) Brochure (pdf) Hi-Res Product Photo

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	schmartboard
Model	206-0004-02
