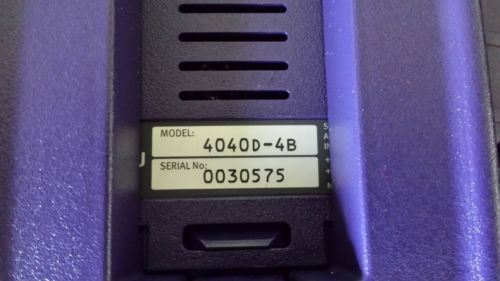

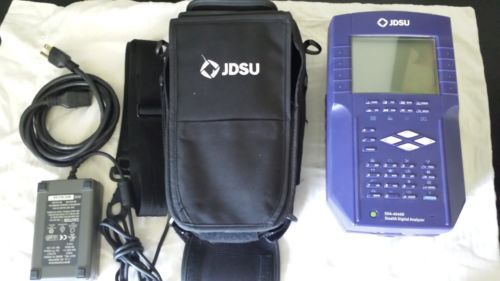

Sda-4040d/opt4b

US $700.00

  • Vista, California, United States
  • Jan 29th
Operational Specifications •Level Measurement •Range: -40 to +60 dBmV •Resolution: 0.1 dB •Accuracy: +/- 1.0 dB from -20 to +50°C 1,2 •Signal types: single carrier, video (single or dual audio), audio •Additional uncertainty: +/- 1.8 dB for digital (QAM, QPR, QPSK, VSB, CAP-16), TDMA (zero-span spectrum mode)  Tilt Measurement •Up to 9 pilot carriers or video channels •Hi-Lo s Resolution: 0.1dB  Scan Mode •All video, audio, pilot carrier, and digital channel levels displayed. Sweep Mode •Frequency range: 5-1000 MHz •Display span: user definable •Display scale/range: 6 vertical divisions 1, 2, 5, or 10 dB/division •Stability: +/- 0.5 dB, normalized (dependant on stability of referenced carriers) Carrier to Noise Measurement Non-scrambled channels only. No preselection required for 78 channels at +10 dBmV input level. •Resolution: < 0.5 dB •Range: 52 dB maximum1 Hum Measurement •(carrier > 0 dBmV) Non-scrambled channels only •Range: 0 to 10% •Resolution: <0.2% •Accuracy: +/- 0.7%  Depth of Modulation •Assumes presence of white reference on any VITS line. •Non-scrambled channels only. •Range: 80 to 100% •Resolution: <0.5% at 85% •Audio demodulation of AM and FM carriers  Spectrum Mode •Spans: 3, 5, 10, 20, and 50 MHz •(750 ms to 1.75 depending on span) •Sweep Rates: ~1 second updates with spans of 50, 20 , 10 & 5 MHz; ~1.7 second updates with 3 MHz span •Display Scaling and Range: 0.5, 1, 2, 5, and 10 dB/div. •6 vertical divisions •Dwell: programmable 0-25 ms •Spurious-Free Dynamic Range: 60 dB 1 •Sensitivity: o-40 to +60 dBmV w/o preamp o-50 to +50 dBmV w/ preamp o-55 to +50 dBmV typical for f<50 MHz. oZero-Span Mode •Video BW: >1MHz, 100 kHz, 10 kHz, 100 Hz •Resolution BW: 280 kHz, 30 kHz •Measurement BW compensation: programmable 1 khz-99 MHz •Pulse measurement accuracy: nominal level in 10 µs +/- 2 dB from nominal in 5 µs (>1 MHz VBW, 280 kHz RBW) •Sweep times: 100 µs to 20 s (1,2,5 settings) Intermodulation Distortion (CSO/CTB) •Range: 60 dB maximum •Resolution: 0.4 dB  Frequency •Range: 5 to 1,000 MHz •Accuracy: @ 25°C +/- 10 ppm oDrift Over Temp +/- 10 ppm oAging +/- 3 ppm/year •Resolution Bandwidths: 30, 280 kHz, 2 MHz •Tuning Resolution: 10 kHz Data Storage •Files stored: autotests, scan, Sweepless Sweep®, spectrum mode (regular with max hold, zero-span or CSO/CTB), tilt, channel plans; Allocated on demand. •Storage capability: (simultaneous- more of one file type can be traded’ for less of another) (typical 78-channel plan) (all files stored as database, not screen picture) 8 channel plans 100 sweep references/traces; 60 spectrum displays; 20 autotests  Serial Interface •Serial, RS232; Epson, IBM Printers  General •Log Linearity: +/- 0.5 dB1 •Flatness: +/- 0.5 dB3 •Dimensions: 6”x11”x3.5” •Weight: 2.3 kg (4.9 lbs.) •Operating Temperature Range: -20 to +50°C; -4 to 122°F •Power Sources •Battery: 12V /3.5A-hr replaceable; 6 hours cont. use on a single charge •Charger: oInput: 90-265VAC, 47-63 Hz oAux out: 16V @ 750 mA oCharge: 15V @ 750 mA
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Acterna
