Sei Rap47 Low Energy Gamma Leg Scintillation Detector Probe - New

US $395.00

Stuart, Florida, United States
Jan 29th

Open on mobile:
QR code

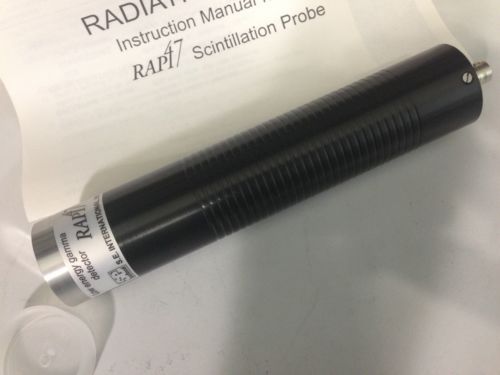

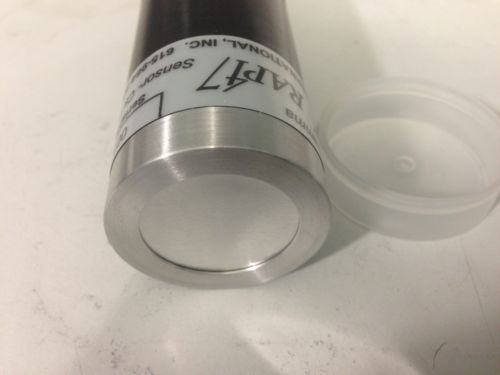

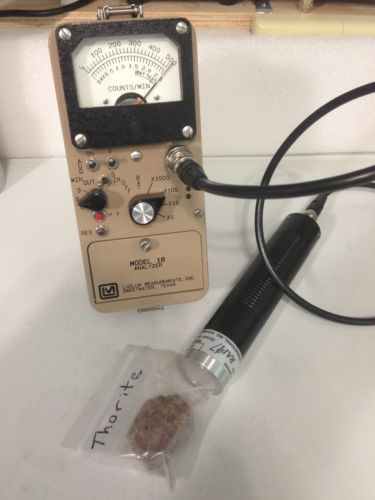

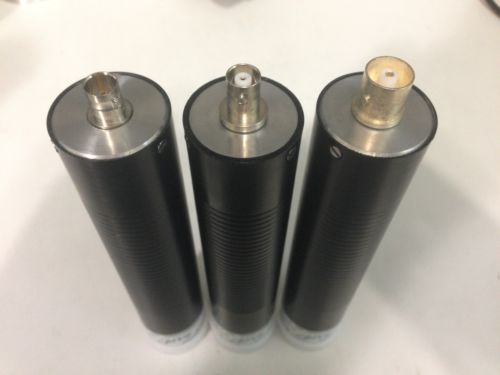

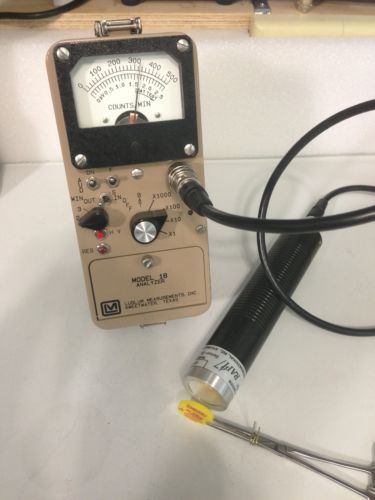

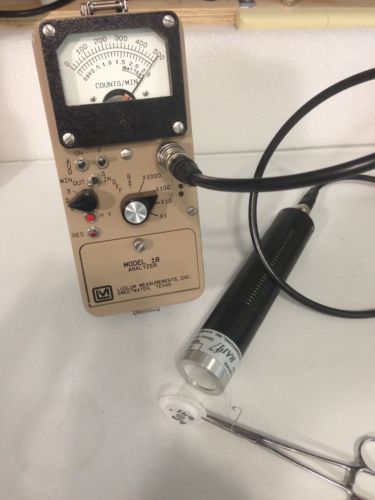

Made in USA / $600 value New SE International RAP47 LEG Gamma Detector Probe with instruction manual. 1" X .04" (24.4mm X 1mm) CsI(Tl) crystal with thin entrance window. Responds to a very wide range of gamma energy and hard Betas, but responds especially well to Low Energy Gammas and X-Rays. A thin entrance window allows very low energy gamma rays to enter (8keV- 1000 keV). Manufactured with a High Quality Hamamatsu R268 PMT with 120MegOhms dynode string. Compatible with most Survey Meters with single cable input and adjustable HV. Will run at a wide range of voltages (from 600v to 1100v), and is shown running at 900 volts on a Ludlum Model 18 Meter (see pictures). The meter was tested on my Ludlum Model 500 Calibrator for accuracy. Besides background counts, the detector is shown detecting a small Cs137 sample, a Low Energy Gamma Sample, and a Thorite mineral sample. As designed, the detector highly favors the Low Energy Source, but detects other sources quite well also. The RAP 47 ships by default with a MHV connector. Upon request, I can change the connector out to a BNC or a Ludlum style C connector for no-charge. Just let me know with a follow-up email immediately following your purchase. The last picture shows the default MHV connector on the middle detector, the optional BNC connector on the left, and the optional Ludlum style C connector on the right. Detector: Type-CsI (Tl) crystal (Cesium Iodide / Thallium Doped) - 1.0" dia. x .04" thick (25.4 x 1.0mm) Radiation Detected - gamma 8 keV to >1 MeV. Typical Absorption 100% at 47keV, 80% at 100 keV Probe Construction - Anodized aluminum housing. Approximate size: length 7-7.5 inches, diameter 1.5 inches. Connectors - Standard MHV (optional BNC or C upon request). Temperature Range -25°C to 40°C (-4°F to 104°F). Humidity Range - 0 to 90% Relative Humidity. Weight - RAP47-Approx. 178 g (6.3 oz.) without cable. I ship very fast, same day if early enough for USPS, next day otherwise (except Sundays and holidays). I guarantee the packaging will be safe and secure and no DOA, with a 30 day satisfaction guarantee or return to get a refund of your purchase price. Only one scintillator detector is included in this listing. No other items shown, including test equipment, meters, test sources, or tools are included. Comparable to: Bicron / Saint-Gobain, Scionix Holland, Ludlum, Ortec, Canberra, Eberline, Harshaw, and other quality scintillation detectors and scintillator probes. Better than a GM Geiger Counter. For Nuclear Radiation Detection and Contamination Survey.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country/Region of Manufacture

United States
