Self Contained Compact 3 Ton 36k Cool 77k Heat R134a 3 Ph A/e32c-45a Heat Pump

US $9700

Jacksonville, Florida, United States
Jan 29th

Open on mobile:
QR code

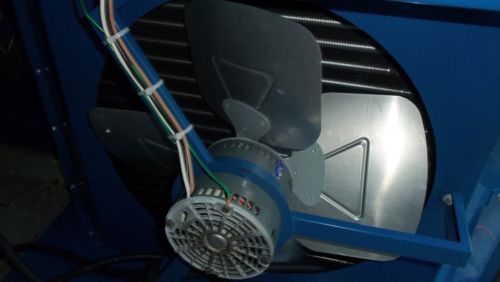

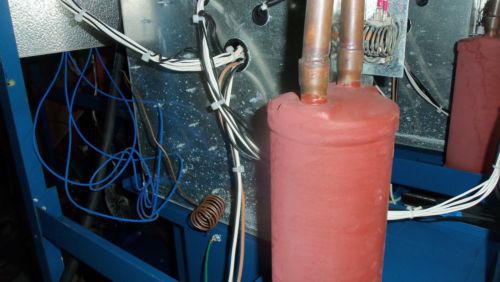

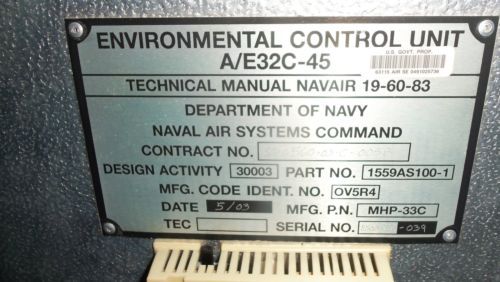

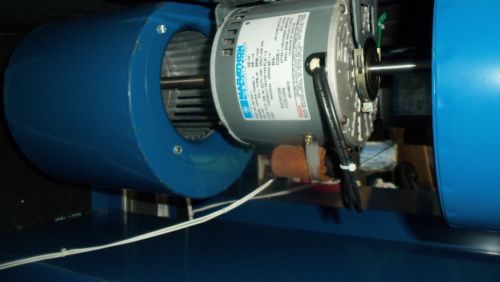

Snowbird Environmental Systems Corp A/E 32C-45A 36K BTU / 3 Ton Heat Pump 208 Volt 50/60 HZ AC HVAC These units were to be used for HVAC training and have never been deployed. They currently cost $11,508.94 each and we have three units available, you could install all three for much less than the cost of one. These are top of the line R134a compact self contained units with Copeland Scroll Compressors and per the manufacturer are capable of lowering the temperature of a 125 degree room down to 45 degrees or raise the temperature of a minus 32 degree room to 90 degrees. These units are complete with the exception of the sheet metal covers that are NOT included, you can ether order them from the manufacturer ( http://www.snowesc.com/product8.htm ) or make your own, very easy because of the frame design. We are also including the wiring, service and parts manuals electronically (we will e-mail them to the winning buyer). There are a few minor scratches on the frame where they were loaded onto pallets, other than that these units are real clean. You get exactly what is in the pictures. You will need to supply your own thermostat. These are R134a units. These would also be perfect for an HVAC training school as there completely self contained upright units that can be floor or wall mounted. Shipping quote via Freightquote or send your own trucking company or local pickup is free. Packing and palletizing is $100 per unit unless you pick them up locally, and then there is not shipping, packing or loading charges. EQUIPMENT DESCRIPTION The Snowbird A/E 32C-45A is a lightweight, self-contained unit in a weatherproof aluminum case with a built-in heat pump designed to provide a high capacity heat-cool environmental control system. The ECU will control the temperature of an adequately enclosed compartment within the variable range of 7° C to 32° C (45° F to 90° F) in ambient temperatures of -32° C to 52° C (-25° F to 125° F). The temperature is controlled by a cool-heat control thermostat. The ECU works as a heat pump in one of the three cycles; a heating cycle, a cooling cycle, or defrosting cycle. The ECU is a vertical compact ECU with a nominal cooling capacity of 36,000 British Thermal Units per hour (BTU/hr). It has a nominal heating capacity of 77,000 BTU/hr with supplementary heaters, and 36,000 BTU/hr without supplementary heaters when supplied with a 208-VAC, 3 phase, 50/60 Hz, 3-wire power. The supplemental heating unit is a two-stage assembly; each stage contains 6-KW heaters capable of dispersing a total of 41,000 BTU/hr. Over-heating protection is controlled by a 160° F (71° C) cutout (thermoguard) located in the return plenum over the indoor coil (See technical manual for details). The unit contains air-cooled indoor and outdoor finned tube coils. Supplementary heating elements are protected by two fail-safe, fuse links in each stage set to open at 306° F (152° C). The first supplemental heating stage is controlled through the second stage of the indoor thermostat. The second stage of the supplemental heating is controlled by an outdoor thermostat (See technical manual for details). Dimensions Height........................................................................... 72.5 inches Width............................................................................ 39.2 inches Depth............................................................................ 14.8 inches Net Weight....................................................... Max 500 pounds Power Requirements.................................................. 208 VAC, 3-phase, 50/60 Hz Cooling Capacity.................................................... 36,000 BTU/HR @ 60 Hz Heating Capacity.................................................... 76,000 BTU/HR @ 60 Hz Standard rating (45°F)............................................... 36,000 BTU/HR @ 60 Hz Application rating (20°F).......................................... 25,000 BTU/HR @ 60 Hz Supplementary Heaters............................................ 41,000 BTU/HR (2-steps, 6 KW each) Maximum input (total unit-................................... 17,400 watts varies with ambient) Outdoor Thermostat.............................. Adjustable range -10° to 40°F (-23° to 4.4°C) (Factory set to 40°F (4.4°C) Compressor Type.............................................................................. Sealed hermetic Power requirements.................................... 200-220 VAC, 3-phase, 50 Hz 200-230 VAC, 3-phase, 60 Hz RPM............................................................... 3,500 at 60 Hz; 2,900 at 50 Hz High pressure cutout.................................................. 375 psig ± 5 psig Low pressure cutout................................................... 7 psig ± 5 psig Lubricant charge........................................................ at factory Refrigerant................................................ R-134A – 7 lbs, 5 oz Suction Pressure............................................. 35 PSIG ± 10 PSIG @ 90°F Discharge Pressure......................................... 150 PSIG ± 10 PSIG @ 90°F Indoor Blower HP.................................................................. 1.0 Power Requirements............................... 208-220 VAC, 50/60 Hz, 6.6 amps Phase............................................................................ 1-phase RPM.............................................................................. 1,625 CFM (nom.) cooling................................................... 1,400 CFM (nom.) heating.................................................. 1,410

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Snowbird Environmental Systems Corp
Country of Manufacture	United States
MPN	A/E 32C-45A
