Serial 13.56 Mhz Rfid Read /write Module, Arduino Compatible,supports Iso 14443a

US $22.78

??, ???, China
Mar 8th

Open on mobile:
QR code

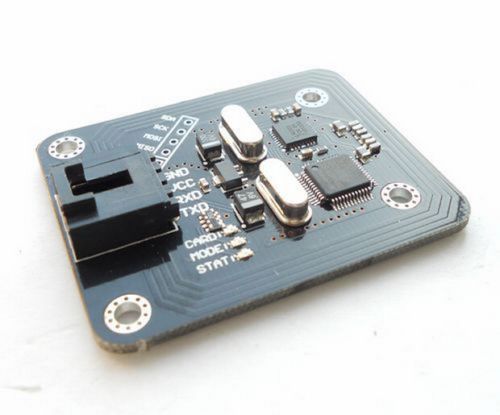

Serial 13.56 MHz RFID read / write module, Arduino compatible, supports ISO 14443A / MIFARE Product Introduction: The RFID module is based MFRC522 design. It is a highly integrated contactless communication reader, the operating frequency of 13.56MHz. Supports ISO 14443A / MIFARE Classic and MIFARE mode mode (for example, the standard MIFARE) products. The case of two-way communication, based on non-contact high-speed transfer rate of up communications MIFARE 848 kbit / s? We embedded a MUC on the module. By simply sending serial commands, you can easily use it, and the operation is very simple? Most functions are accomplished through the MCU. In addition to the serial port, the board comes with SPI communication interface, which is the MFRC of SPI. You can also access directly through this interface MFRC? RFID With a variety of host interface module: SPI Interface RS232 Serial ports Features: Highly integrated analog demodulation, decoding circuit Stand by ISO 14443A/MIFARE Operating distance for ISO 14443A / MIFARE standards, typical read / write mode is 40 ~ 50mm In read / write mode, encryption support MIFARE Classic ISO 14443A supports high-speed transfer rate of communication, the fastest up to 848kbit / s Available serial control: Baud rate 2400bps ~ 115200bps, the default baud rate is 9600bps When using ISO14443A chip, supports MIFARE standard encryption algorithm Power-down, the configuration program is still stored in the EEPROM Built 8k EEPROM, you can easily read and write by sending commands Easy to use, users simply send a simple command can read the cards High levels of electromagnetic compatibility Lead-free design Relevant parameters: Supply voltage:4.5V~5.5V,Criteria:5V Interface: Serial(5V TTL),SPI(3.3V TTL) Size: 40mmx50mm Use: Baud rate range:2400~115200 default setting: Baud Rate:9600 Parity: None Start Bit:1 Data bits:8 Stop bits:1 Two kinds of command mode: basic commands and compress command. All commands are in hexadecimal form? The module is connected to the Arduino and fairly simple. By Arduino expansion board, plug and play? Size: Software: We customize the latest PC software program for the module? It can: Have a basic command receiving and sending window Looking card Reads the card's serial number Added or removed from the list of authorized cards Verification card list RFID card reader Read EEPROM Documentation, software resources, data, after receiving the products, please contact us, we put resources software program sent to your mailbox Full serial control, powerful, the IC card can read and write, it is suitable for playing Arduino, you absolutely do not want to control how RFID works, what needs to be configured, you only need to follow our simple commands, you can get the desired result Manual, Arduino test instructions and code by email upload. Because of different nationality, language communication difficulties. We only provide English manual does not provide remote technical support. Thank you Shipping list:(Map) RFID Modules x1 MIFARE1 S50 suqare white card x1 MIFARE1 S50 key card x1 FM110 suqare white card (compatible with MF1 S50) 4-pin wire x1 . Accept credit or debit card and bank payments safely and easily with PayPal. •We ONLY accept payment via PayPal, other payment is not acceptable. •We ONLY ship the item to PayPal's Confirmed Address, please make sure it is correct when you pay. •Dear friends; After we receive your payment, we ship in 48 hours; Please be assured; Thank you Shipping information •Normally We would ship the product within 1-3 working days upon receipt of payment, our goal is: ship it as fast as we can. ?it takes 10-20 working days to USA, and 13-20 working days to Asia Countries, and 15-25 working days to Australia / Canada, and 12-25 days to South America, and 15-30 working days to Europe. Sometimes, it takes a little longer days to other remote cities than normal region. ? If the transport time is more than 30 days, and still have not received the items.You can contact your local post office to query the project location. If you have not receive a reply. Please contact us,the customer service staff will quickly solve the problem for you. •But sometimes international delivery is highly depended on the courier company and local customs/duties. If you do not receive your item on time, please contact us immediately for further assistance. •Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Please check with your country customs office to determine what these additional costs will be prior to bidding/buying. •We also provide international Expressed delivery such as EMS, DHL and UPS, extra shipping fees is needed, please contact us for the detail. Feedback: ? Customer satisfaction is very important to us; is your recognition of our work and support; This is our pursuit; thank you. ? We hope after you receive the commodity, you can leave us a positive feedback. Certainly we will also leave you a positive feedback too! ? We hope you will give us FIVE STARS ????? (5 score) on all of the Detailed Seller Ratings ? Negative feedback is not the solution to the problem; any dissatisfied please contact me, communication. Please be assured; we must strive to resolve; Return Policy • We do not responsible for any custom duty or import tax. • Returns for exchange are permitted and must be initiated by the buyer within 14 days of receipt. • All return items must be in their original condition. Return shipping and handling charge will be at the buyer's expense, Exchange & Refund will be processed after original products are returned (Shipping & handling fees are non-refundable).

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Other
Country/Region of Manufacture	China
Model	13.56 MHz
