Shear Bolt Xm13-8 (13-8ph) Ams5629 5/8-18 X 6" Long P/n Ld111-0020-1074 New

US $13.95

Los Angeles, California, United States
Jan 29th

Open on mobile:
QR code

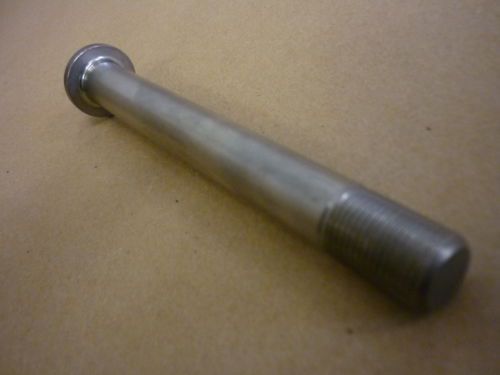

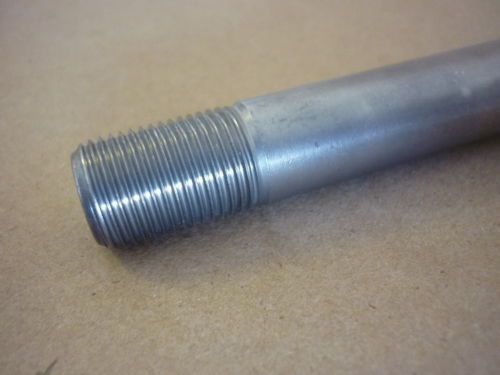

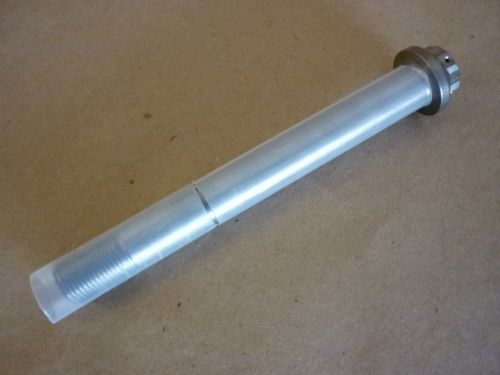

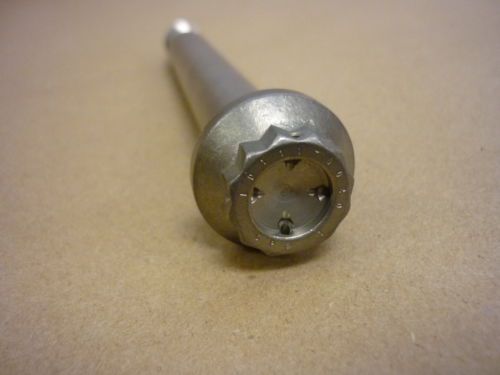

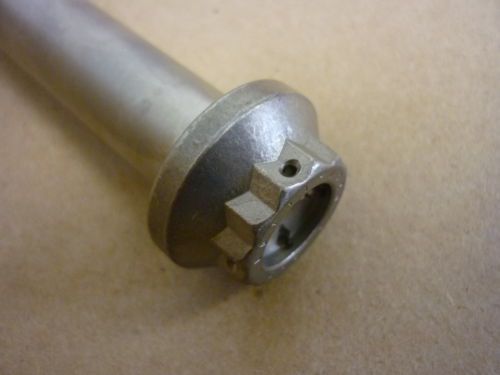

New Military Surplus 12 Point Stainless Steel XM13-8 AMS5629 5/8-18 x 6" Long Shear Bolt NSN 5306-01-330-5204 Part# Ld111-0020-1074 high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. Ship To Lower 48 States Item# 206 Technical Characteristics NSN 5306013305204 Requirement Reply THREAD SERIES DESIGNATOR UNJF SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL MATERIAL STEEL COMP XM-13 OVERALL HARDNESS RATING 50.0 ROCKWELL C MAXIMUM OVERALL THREAD QUANTITY PER INCH 18 NOMINAL THREAD DIAMETER 0.625 INCHES EXTENDED WASHER THICKNESS 0.150 INCHES NOMINAL WIDTH BETWEEN FLATS 0.690 INCHES MAXIMUM SURFACE TREATMENT PASSIVATE OVERALL MATERIAL DOCUMENT AND CLASSIFICATION AMS5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL HARDNESS RATING 46.0 ROCKWELL C MINIMUM AND MINIMUM TENSILE STRENGTH 220000 POUNDS PER SQUARE INCH GRIP LENGTH 4.636 INCHES MAXIMUM GRIP LENGTH 4.615 INCHES MINIMUM AND GRIP DIAMETER 0.6240 INCHES MAXIMUM GRIP DIAMETER 0.6235 INCHES MINIMUM AND EXTENDED WASHER DIAMETER 1.050 INCHES MAXIMUM EXTENDED WASHER DIAMETER 1.040 INCHES MINIMUM AND WIDTH BETWEEN FLATS 0.679 INCHES MINIMUM AND HEAD STYLE C10 DOUBLE HEXAGON WITH HOLE FASTENER LENGTH 5.580 INCHES MINIMUM AND HEAD HEIGHT 0.494 INCHES NOMINAL FASTENER LENGTH 6.010 INCHES MAXIMUM THREAD LENGTH 0.970 INCHES NOMINAL THREAD DIRECTION RIGHT-HAND THREAD CLASS 3A

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“New Military Surplus NSN 5306013305204”
