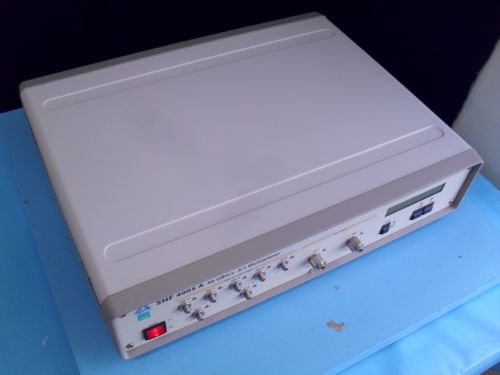

Shf 4005a - 40 Gbit/s 4:1 Multiplexer

US $12,000.00

  • Seoul, Korea, South
  • Jan 29th
Open on mobile:
QR code

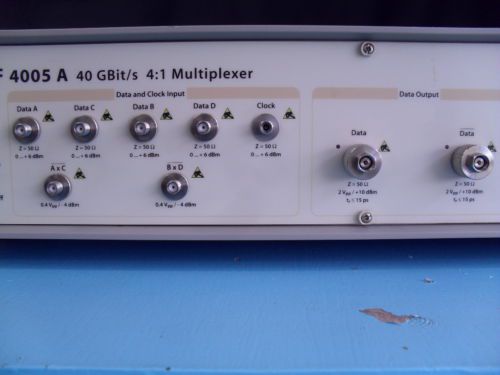

  SHF 4005A - 40 GBit/s 4:1 Multiplexer                                                                                                                                   Product Overview The 40 GBit/s 4:1 multiplexer SHF 4005 A uses three 2:1 multiplexers to generate a 40 GBit/s data signal from four 10 GBit/s signals which are multiplexed to two 20 GBit/s signals. A 20 GHz clock input signal drives the output multiplexer while the two input multiplexers are driven by a 10 GHz clock signal generated by a 20 GHz divide by two circuit. Key Features   Preliminary Technical Data - Bitrate : max. 40 GBit/s - Input DATA A, B, C, D : 10 GBit/s max. 0.8 Vpp /50 W (0.4 Vpp min.) - Input return loss A, B, C, D : > 10 dB - Maximum input power : + 10 dBm - Input Clock : 20 GHz max. 0.8 Vpp /50 W (0.4 Vpp min.) - 40 GBit/s out @ 20 GHz clock - Electrical delay range Clock 20, Clock 10 : 160 ps max. - Output DATA : 40 GBit/s >2.5 Vpp/50 W - Output inverted DATA : 40 GBit/s >2.5 Vpp/50 W - Output return loss : >15 dB < 1 GHz, > 10 dB < 38 GHz - Rise time @ output : < 15 ps - Overshoot @ output : 8 % typ. ( < 12 %) - Input connectors : SMA / 2.9 mm female - Output connectors : 2.0 mm male (compatible to V and 2.4 mm) - Power supply : 90 V ... 135 V / 180 V ... 270 V 47 - 63 Hz - Dimensions (W x H x D) : 472 x 110 x 365 mm Options / Remarks     Conditions   Used. In good working and cosmetic condition. Warranty   30 days warranty Payment   Paypal Shipping   We can ship worldwide! Buyer pays for all shipping costs. We will let you know the shipping costs after we receive your shipping address. We also accept any international courriers like DHL,FedEx, UPS....
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand SHF
Country/Region of Manufacture Germany
Model 4005A
