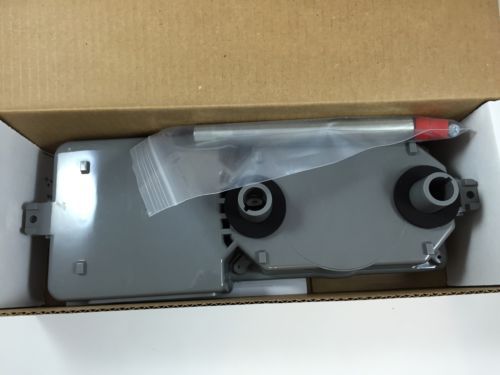

Siemens Fdbz492 Fire Alarm Duct Housing Addressable Smoke Detector S54319-b22-a1

US $88.00

New York, New York, United States
May 6th

Open on mobile:
QR code

ARCHITECT AND ENGINEER SPECIFICATIONS Four (4) models available Addressable and conventional (with and without relays) Compatible with Siemens Fire Safety conventional and addressable fire-alarm control panels (FACPs) Magnet test feature with the Model OP121 conventional detector Design for air-velocity range of 100 to 4,000 feet-per-minute (fpm) FDBZ-series of air-duct housings (FDBZ492, FDBZ492-HR, FDBZ492-R and FDBZ492-RP) Watertight housing Self-contained model available with ‘on-board’ power supply for conventional detectors Expanded temperature range Relay models available UL268A Listed, ULC-S529 Listed; FM (#3010), CSFM (#3240-0067:0265) Approved Robust, compatible conventional remote indicator test switch that incorporates tri-color light-emitting diode (LED) Clear housing cover with smoke test port on cover for quick identification of detector type Removable with four (4) captive-thumb screws (no tools required) Includes a smoke / aerosol detector test port Optional NEMA 4X-reinforced, stainless-steel and watertight enclosure available, Model FDBZ-WT No tools required for cover removal, sampling and exhaust-tube installations Trouble-event activation upon front-cover removal Alarm LED visible from front Remote alarm indicator (Model FDBZ492-RTL) The Siemens Fire Safety Model ‘FDBZ’-series of air- duct-detector housings are designed to be used with the Siemens Model ‘H’-series, ‘FD’-series and the Model OP121detectors. Designedforinstallationdirectlyto heating, ventilating and air-conditioning (HVAC) duct systems, the Model ‘FDBZ’-series complies with National Fire Protection Association Standard (NFPA) No.’s 72 and 90A, and is Underwriters’ Laboratories Listed. When equipped, the air-duct detector housing will signal the presence of smoke being carried through the duct system. Air-duct detectors are not intended to be substituted for open-area detection. Notes: Mostconventionaltime-controlequipment guarantee only one (1) detector per zone when the detector’s operated relay function is critical. The connection of a remote lamp and a remote relay per detector is allowed. Refer to the installation manual for the respective conventional fire system. Notes (cont.’d): With either the Desigo® series or FireFinder® XLS series of FACPs, up to 252-addressable detectors with relays per circuit may be used. The connection of an intelligent remote lamp (ILED) and a remote relay is allowed for each detector simultaneously. Specifications The Model ‘FDBZ’-series of air-duct housings are uniquely designed to use with the photoelectric detector. Sensitivity of Models PE-11, PE-11C and OP121 detectors can be verified for calibration via LED visual status or a Model RSAW-11, Model RSAC-11 or Model FDBZ492-RTL multi- color remote lamp. A green flash indicates the detector has passed its self test. Amber indicates a Trouble condition, and red indicates an Alarm event. Sensitivity range for Models HFP-11, FP-11, SFP-11, HFPO- 11, SFPO-11, FDO421, FDOOT441 and FDOOTC441is verified from the multi-color LED of the respective detector, or its sensitivity reading may be printed by command from the corresponding FACP to an optional printer.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Siemens
MPN	500-649708
Model	Fire Alarm Air Duct Housing Smoke Detector
