Siemens Touch Panel Op177b Blue Mode 6av6 642-0dc01-1ax1 Simatic Hmi 6" Dp T/k

US $799.00

Celje, Slovenia
Jan 29th

Open on mobile:
QR code

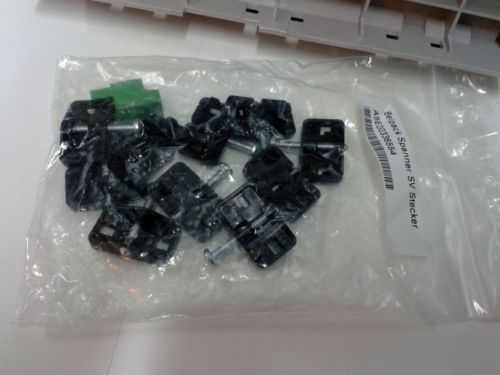

1pcs. Siemens Touch Panel OP177B Blue Mode 6AV6 642-0DC01-1AX1 Simatic HMI 6" DP T/K – 6 MSTN - New with Mounting Clips and Power Supply Connector (Beipack A5E00336554) Condition: New – no original packing Zustand: Neu – ohne OVP What you see in pictures is what comes with item Shipp: worldwide (priority int.shipping) Versand: Welweit (Einschreiben-priority) If you want to select a different shipping method please contact us! What you see in pictures is what comes with item See also our other Automation items Ebay ubernehmen wir, Verpackung und versicherten Versand der Kaufer sowie alle anfallenden gebuhren ( Zolle und Steuern ) die mit dem Artikel und deren Zahlung ( PayPal -, Bankuberweisungsgebuhren ) in Verbindung stehen. SIMATIC OP177B 6" DP BLUE MODE STN DISPLAY TOUCH AND KEYS MPI-/PROFIBUS-DP PROTOCOL RS485-/RS422-/USB- INTERFACE PRINTER INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005 Overview Touch/Key Panel with comprehensive functions for operator control and monitoring of machines and plants Content of message buffer is retained even when panel is disconnected, without batteries Pixel-graphics STN blue-mode/color display with analog touch screen and additional 32 function keys Interfaces for communication with Siemens SIMATIC S7 (e.g. MPI, PROFIBUS DP) are on-board Ethernet is on-board in the color version Drivers are also available for non-Siemens PLCs Installation compatible with OP17 Technical specifications 6AV6 642-0DC01-1AX1 OP 177B Bluemode Display Size 5.7" (120 mm x 90 mm) Display type STN, 4 blue levels Resolution (pixels) Resolution (WxH in pixel) 320 x 240 Backlighting MTBF backlighting (at 25 °C) about 50,000 hours Control elements Control elements Membrane keyboard Function keys, programmable 32 function keys, 26 with LEDs Connection for mouse/keyboard/barcode reader USB / USB / USB Keyboard fonts Numeric/alphabetical input Yes / Yes Touch operation Touch screen Analog, resistive Supply voltage permissible range +20.4 V to +28.8 V DC Supply voltage 24 V DC Input current Rated current 0.24 A Processor Processor ARM, 200 MHz Memory Type Flash / RAM Usable memory for user data 2048 KB usable memory for user data Type of output LED colors Green Time of day Clock Type Hardware clock, synchronizable, no battery backup Interfaces Interfaces RS232 optional, 1 x RS422, 1 x RS485 (max. 12 Mbit/s) USB port 1 x USB PC card slot No CF card slot No Multimedia card combined Industrial Ethernet Industrial Ethernet interface No Protocols Protocols (terminal link) Sm@rtAccess Yes Ambient conditions Operating temperature Operation (vertical installation) 0 °C to +50 °C Operation (max. tilt angle) 0 °C to +40 °C Storage/transport temperature Transport, storage -20 °C to +60 °C Relative humidity max. relative humidity 90 % Mounting position vertical maximum permissible angle of inclination without external ventilation +/- 35 ° Degree and class of protection Front IP65, NEMA 4x, NEMA 12 (when installed) Rear IP20 Standards, approvals, certificates Certifications CE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX Zone 2, EX Zone 22, C-TICK, NEMA 4x, NEMA 12 FM Class I Div. 2 Yes GL Yes ABS Yes BV Yes DNV Yes LRS Yes PRS No Gost-R No Suitable for safety functions No Use in hazardous areas EX zone 2 Yes EX zone 22 Yes Operating systems Operating system Windows CE Configuration Configuration software Configuration tool WinCC flexible Compact Version 2005 or higher (to be ordered separately) Languages Online languages Number of online/runtime languages 5 Languages Languages D, GB, F, I, E, CHN "traditional", CHN "simplified", DK, FIN, GR, J, KP / ROK, NL, N, PL, P, RUS, S, CZ / SK, TR, H Functionality under WinCC flexible Applications/options Sm@rtService, Sm@rtAccess Task planner Yes Help system Yes Status/control With SIMATIC S7 With alarm logging system (incl. buffer and acknowledgment) Number of messages 2 000 Bit messages Yes Analog messages Yes Message buffer Ring buffer (n x 256 entries), retentive, maintenance-free Recipes Recipes 100 Data records per recipe 200 Entries per data record 200 Recipe memory 32 KB integrated Flash, expandable Number of process images Process images 500 Variables 1 000 Limit values Yes Multiplexing Yes Image elements Text objects 2,500 text elements Graphics object Bit maps, icons, icon (full-screen), vector graphics dynamic objects Diagrams, bar graphs, sliders, analog display, invisible buttons Lists Text lists 300 Graphics list 100 Libraries Yes Security Number of user groups 50 Passwords exportable Yes Number of user rights 32 Data carrier support PC card No CF card No Multi Media Card Yes Logging Recording/Printing Alarms, report (shift report), hardcopy Printer driver ESC/P2, PCL3/PCL6 Character sets Keyboard fonts US English Character sets Tahoma, Courier New, WinCC flexible Standard, ideographic languages, 2 additional character sets can be loaded, all freely scalable Transfer (upload/download) Transfer of configuration MPI/PROFIBUS DP, serial, USB, by means of external storage medium, automatic transfer recognition Process coupling Connection to controller S5, S7-200, S7- 300/400, Win AC, SINUMERIK, SIMOTION, Allen Bradley (DF1), Mitsubishi (FX), Telemecanique (ADJUST), Modicon (Modbus), for further non-Siemens drivers, see section on "System interfaces" Expandability/openness Open Platform Program Yes I/O I/O devices Printer Dimensions and weight Dimensions Front of enclosure (W x H) 243 mm x 212 mm Mounting cutout/device depth (W x H 229 mm x 196 mm / 45 mm device depth Weight Weight 1 kg

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“new, no original packing, with Mounting Clips and Power Supply Connector, item from images”
