Signalcrafters Model 60 Impedance Magnitude Meter

US $150.00

  • Brighton, Colorado, United States
  • Jun 9th
Open on mobile:
QR code

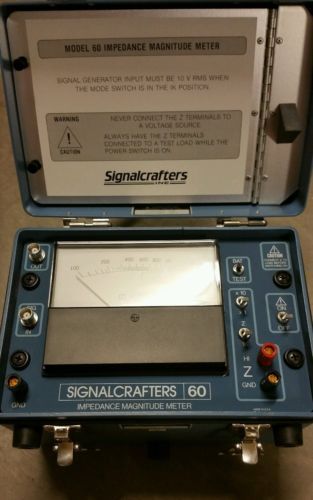

In like new condition. Battery is in good working condition. Includes leads and Owners Manual. Tune Line Traps Quickly And Accurately PLC Design—Specifically designed for Line Trap work; operates from 30kHz -500kHz, the correct frequency range for most traps. Direct Measurement—No calculations required, directly measures and displays the Magnitude of Impedance for the circuit under test. Makes resonant frequency determination quick & simple. Easy-to-read—Measurements are displayed on a large 4" taut-band, ruggedized, fluid-damped, hermetically sealed analog meter. Dual Range—Select either 0.1-4k ohm or 1.0-40k ohm scales for either finding impedance over a band or locating peak impedance resonant frequencies. DC Output—0 to +2 Vdc at a convenient BNC port for driving an Oscilloscope or X-Y Plotter. Field Portable—Weighs in at under 5 lbs., battery operated, housed in a rugged .060" thick aluminum case. Battery Saver—Closing the lid automatically turns the instrument off. Technical Specifications Frequency Range: 30 kHz-500kHz Impedance Magnitude: x 1 Range: 100 to 4,000 ohms   10 Range: 1,000 to 40,000 ohms   Connector: Banana jack binding post pair Accuracy At 20° C: Meter Readings Of: 100 to 1.2k ohms; 10%   1.2k ohms to 4k ohms; 20% Test Load Drive Voltage: 10Vrms Display: Meter: 4 " taut band, ruggedized fluid   damped, shock mounted   Scales: 100 to 4k ohms, infinity, battery check Input Signal Requirements: Level: 10Vrms from 50 ohms, or less   Input   Impedance: X1 range: 200 ohms   X10 range: 2000 ohms   Connector: BNC Output: 0 to +2.0 volts, dc, behind 1.91 k ohms.   (0 to 1.0 mA into 100 ohm recorder) Power Supply: 2 NEDA 1604 9V batteries Size: 23 cm (9")x 15cm (6")x 21.5cm (8.5") high   Weight-2.3kg (5lb) less connecting cables
