Sikama Falcon 5x5 Multi-purpose Reflow Soldering System/solder Furnace 5-zone

US $11,249.99

Phoenix, Arizona, United States
Jan 30th

Open on mobile:
QR code

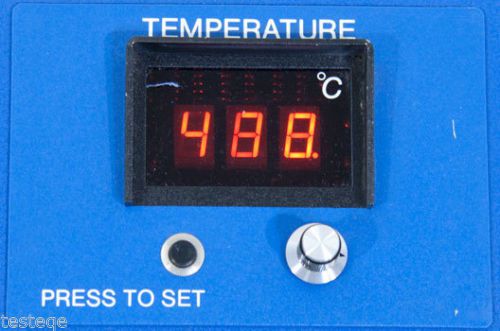

Sikama Falcon 5x5 (Five) Multi-Purpose SMT/Hybrid Reflow Soldering/Curing System Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Sikama and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit was tested to full temperature at each zone which is 480°C and the sweeper bars were sweeping. This particular conveyor moves Left-to-Right. It is guaranteed to work. The Unit's Serial Number Tag Reads: Model Number: Falcon 5X5 Serial Number: 95-20-174 Power Requirements: 208 V, 3-Phase, 50-60 Hz, 20 A Link to the Reflow System Datasheet: Sikama Falcon 5x5 Reflow System Datasheet Link to the Inert Gas Hood Datasheet: Sikama Inert Gas Hood Datasheet Description: Sikama's multi-purpose, table-top unit can be used either as a solder reflow system or as a linear oven for curing and drying applications. The system is ideally suited for all SMT and hybrid reflow soldering applications. Double-sided boards may be processed with fixtures. When used as an epoxy cure system, the Sikama 5x5 achieves rapid cure times with excellent adhesion and low volume resitivity in conductor materials. The Falcon 5x5 comes fully equipeed and ready to operate with 208/230 V, 50/60 Hz power. Single or three phase is available (this unit is 3-phase). Process flow may be left-to-right or right-toleft (this unit is left-to-right). The system may be specified with three, four or five individually controlled heating zones (this unit is 5-zones), each with digital display and always maintaining better than ±2°C of set temperature. Microprocessor control provides an over/under temperature alarm, process obstruction alarm and available RS232C serial port (I don't see any connections for a computer so this may be a stand-alone unit or can be upgraded). Heating/curing temperatures to 420°C are standard, (higher temperature capabilities may be specified from the factory - I tested this unit to 480°C). Process is always visible and acessible. Falcon Systems accept a wide range of substrate materials including ceramic, glass/epoxy, paper-based phenolic, flex circuits, "green tape", silicon, porcelainized metals, etc. The system's microprocessor controller and an optioanl computer software program (not included) provide process profile storage, retrieval and hard copy prinout of status and time. Specifications: Substrate Materials: Ceramic, Glass/Epoxy, Paper-based Phenloic, Flex Circuits, "Green Tape", Silicon Wafers, and Procelainized Metals. Maximum Substrate Size: 5" x 5.5" (13 cm x 14 cm) Platen Size: 5" x 6.5" (13 cm x 16.5 cm) Temperature: From room temperature to 420°C in 2°C Steps (This unit goes to 480°C) Heating Zones: 5 (Individually controlled) Processing Modes: Time or Speed Speed Mode: 0-50 in./Minute (0-127 cm./Minute) Time Mode: 1-60 Minutes/Zone, 1-60 Seconds/Zone Heating Zones: 5 Max. Cooling Zones: 1 min. Parts Flow: Left-to-Right Alarm Temperature: 10°C Above/Below Set Point Alarm: When stopped or jammed Input/Output to Computer: Through RS 232 Port (I Did not see this) Power: 208/230 V, 3-Phase, 50-60 Hz, 4000 Watts Warm-up: 20 minutes to 300°C Cooling Zone: Cooling by fan Size: 45" L x 18" W x 4.2" H (114.3 cm L x 46 cm W 11 cm H) Weight: Approx. 75 lbs. (34 kg.) For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Right Side View Picture 4 - Left Side View Picture 5 - 1 of the Zones - Showing Max Temp Reached. Picture 6 - Serial Number Tag $75.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. If you have any questions please email us at: ebay@mhzelectronics.com or call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 06/15/12 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. On Oct-31-13 at 21:11:23 PDT, seller added the following information: Click Here. Double your traffic. Get Vendio Gallery - Now FREE!
