Single Punch Manual Tables Press Machine, Pills Press Machine Free Shipping Cn-0

US $1,420.00

Rosemead, California, United States
Jan 31st

Open on mobile:
QR code

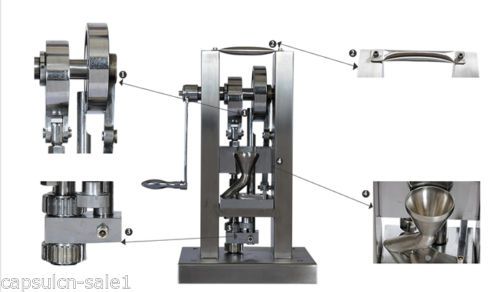

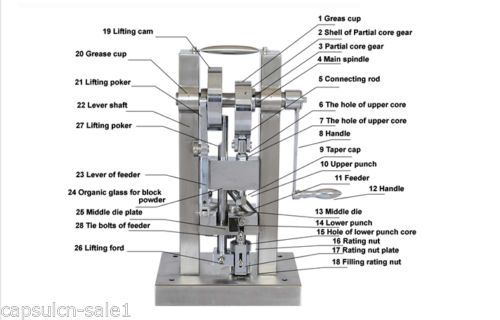

detail POLICY FAQ CONTACT Search Categories General Description This machine is a manual type single punch tablet press with the capacity to produce round tablets of less than 12mm in diameter and is applicable to pharmacies, the chemical industry, the food service industry and medical establishments amongst others. Specifications The main technical parameters and production capabilities are as follows: Max. Pressure 1.5Kn Max. Dia of Tablet 12mm Max. of Tablet 6mm Max. Depth of Filling of Tablet 16mm Production Capacity 20-40pcs/min Machine Weight 24KG Overall Machine Dimensions 300mm*190mm*480mm Structure The main body of this machine is a gantry-type cast in carbon steel. The main spindle junction connects with thepartial core gear and the cam. The rocker arm and the hand shank are found to the right of the spindle. When turning the main spindle manually, it causes the partial core gear, cam, lifting lever feeder to turn also but with a different lifting movement. Procedure 1. feeds in materials 2. punches tablets; 3. ejects tablets. These three procedures work continuously and each program can be adjusted to form tablets to different specifications. Physical Features small in size light weight pleasing overall design compact structure operator friendly versatile – comes with different die portable Operation, Adjustment and Guidelines SETTING UP THE DIE MOLDS (2) STEP 1 Dismantle the hopper by unscrewing the large spring loaded nut under the mold platen. Loosen the small nut (2) on the plunger under nut (1). NOTE When inserting the lower punch the triangle should face towards you. During insertion swing the handle gently backwards and forwards to facilitate positioning of the lower punch. STEP 2 Loosen the small nut (1) on the face of the mold platen Insert the middle mold into the hole in the mold platen. STEP 3 Loosen the large nut over the middle mold. Insert the upper punch. After inserting the upper punch use the handle to carefully lower the large nut onto the upper punch. It will stop by itself. Using two fingers push the upper punch upwards until it will not go any further. You will now need one spanners and a pair of pliers. Tighten the large nut but it must not reach the nut above it. Use one spanner to hold the upper nut in place and the pliers to tighten the lower nut. STEP 4 Turn the machine round. To refit the hopper, refit the spring loaded nut under the platen using two hands to make sure the shaft goes into the hole in the moving plate above the platen. The die mold is now set. NOTE Before using the machine turn the handle a few times to make sure the moving parts run smoothly. DISMANTLING THE MOLD DIES (2) STEP 1 Dismantle the hopper as before by unscrewing the large spring loaded nut under the mold platen. Loosen the large nut over the middle die mold. Turn the handle anti clockwise until it reaches its highest position to raise the upper punch to its highest position. Using a pair of pliers, grip and remove the upper punch with a downward movement. If it is tight, tap your pliers with another tool. Loosen the screw (1) on the face of the mold platen. Insert a long handled Allen key into the space under the die mold and push the die out. Loosen screw (2) under screw 1. Remove the lower punch by gripping it with a pair of pliers and raising it by turning the handle. The mold die is now dismantled. SETTING UP THE DIE MOLDS (1) STEP 1 Dismantle the hopper by unscrewing the large spring loaded nut under the mold platen. Loosen the nut under and on the left of the platen. Grip the mold platen at the rear and lift it out. Loosen screw (2). Insert the lower punch into the hole in the die mold making sure the triangle on the lower is facing forward. Tighten screw (2). Loosen screw (1) on the dismantled mold platen Insert the middle die mold into the cavity on the dismantled mod platen. Tighten screw (1). Reinstall the mold platen The lower punch should be aligned with the hole in the die mold. Loosen the large nut over the die mold. Use the handle to raise the large nut and insert the upper punch into the hole in the nut. Tighten the large nut but it must not reach the nut above it. Use one spanner to hold the upper nut in place and the pliers to tighten the lower nut. With great care fix the mold platen into position so that the upper punch is aligned perfectly with the hole in the die mold. Lower the upper punch into the hole in the die mold. Replace the nut under the mold platen and tighten with a spanner. Replace and tighten the nut at the other side. Swing the hopper back into position and align the screw holes. Turn the machine round. To refit the hopper, refit the spring loaded nut under the platen using two hands to make sure the shaft goes into the hole in the moving plate above the platen. Setting the die molds is now complete. NOTE Before using the machine turn the handle several times to check all the moving parts run smoothly. DISMANTLING THE DIE MOLDS (1) Dismantle the hopper by unscrewing the large spring loaded nut under the mold platen. Loosen the large nut over the middle die mold. Turn the handle anti clockwise until it reaches its highest position to raise the upper punch to its highest position. Using a pair of pliers, grip and remove the upper punch with a downward movement. If it is tight, tap your pliers with another tool. Loosen the nut under and on the left of the mold platen. Turn the machine round and loosen the nut on the other side. Grip the mold platen at the rear and lift it out. Loosen screw (1) on the facve of the mold platen. Push out the die mold from underneath. Loosen screw (2) under screw (1). Lift out the lower punch. Dismantling the die molds is now complete. CapsuLCN International Co.,Ltd TEL: 0086-577-65155517 Fax: 0086-577-65155517 Cell phone: 0086-15967727000 ( China time 8:00-23:00) PAYMENT SHIPMENT RETURN NOTICE 1. We accept Paypal payment only. (Other methods of payment, please contact me) 2.Payment must be made within 14days after you bid it. Non-payment may result in a UPI(Unpaid Item) on your account .As ebay have charged me for the final fee if you didn’t pay. 3.Items unpaid after 14days will be subject to an unpaid item dispute. If there is a problem with your payment, please contact us firstly. Once your payment has been received, we will automatically close the dispute. Bidding on an ebay item is a contractual agreement between the buyer the seller. 1. All our packages are sent by DHL, EMS or ePacket with 1-2 business days for handling time,after receiving the payment except customs item. 2. Shipment time: DHL: 3-4 days EMS:7-10 days ePacket: 7-15 days Please note: An exact delivery day varies by different countries.Sometimes take a little longer, due to local dispatch or other reasons. It might goes more than 10days, if you cannot get within 20 days since we ship out, please email me. 3. We only ship to eBay address. Please make sure your address in ebay is matched with your shipping address before you pay. 4. We do not bear any customs duty or tax. All the items will be declaired as a low price to make you be easy to get through from the customs check. 5. If you have any other questions, please email us at any time. Please include the ebay Item number with your email. We accept returns by permission only - returning goods without consultation does not guarantee acceptance of the goods or a refund. To arrange return of goods, please email us or call us on 0086-577-65155515. Please check the package if there is any damage or shortage before you sign your name on the airway bill. Or you can take a photo as witness with the courier. Otherwise we will not refund you after the item is signed-for. Thank you so much for your understanding & support, we appreciate it very much. For any further information, please do not hesitate to contact us!

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“new capsule machine Model CN-0, send from US”
