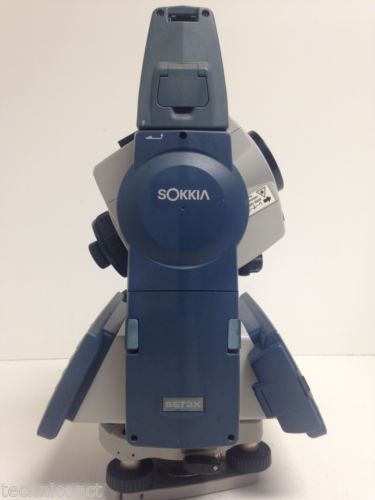

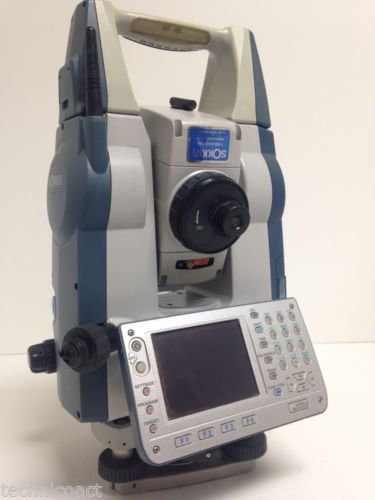

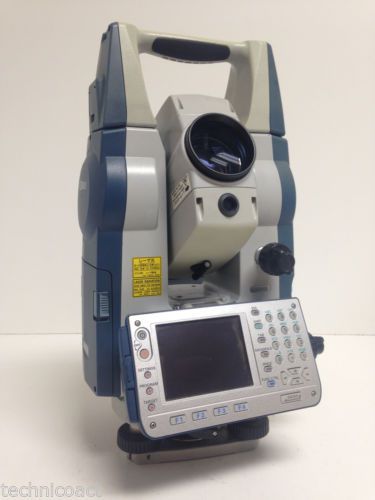

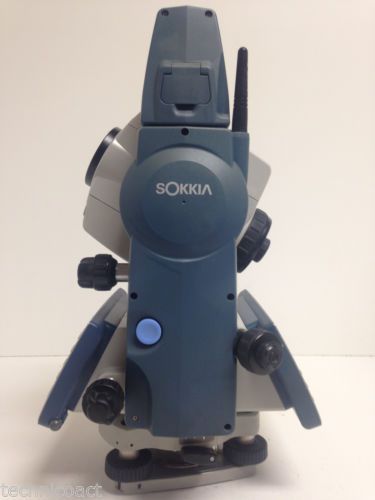

Sokkia Set5x Prismless Wireless 5" Total Station Windows Ce Touch Screen Survey

US $6,000.00

Wesley Chapel, Florida, United States
Jan 30th

Open on mobile:
QR code

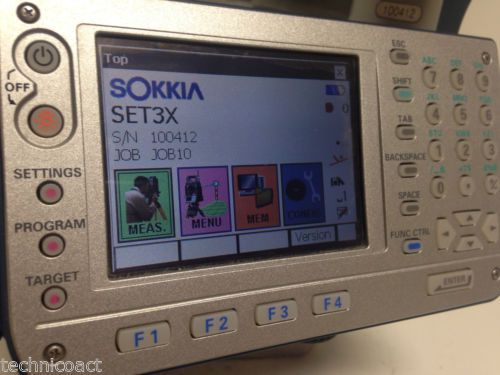

Total Stations Robotic Total Stations GPS Levels Data Collectors Tripods Rods Batteries / Chargers Cables Prisms / Reflectors Prism Poles Parts / Accessories For Technical assistance and Sales: (813)-907-3700 For general help call Nick: (813)-866-8000 Or email at: nick@usasurveying.com You’re bidding one brand new SET5X 5” wireless, prismless total station with following features and specs Windows CE. Expandable Windows CE installed SET X has an easy-to-see color LCD touch screen display and its operability puts it in a class of its own. SDR Program On-board SDR program is Windows CE-based data collection software that increases functionality by providing powerful surveying programs with an easy-to-follow workflow, customizable settings and a graphic interface. Highest in its Class for Environmental Protection SET X offers the highest in environmental protection for Windows CE total stations*. SET X has an IP65 rating, meaning it is able to withstand the harshest conditions in the most demanding jobsites. SET X maintains its IP65 rating even with the external battery connected. RED-tech EX – High Precision Reflectorless Measurement Using Revolutionary Digital Signal Processing Technology RED-tech EX EDM is acclaimed for pinpoint accuracy using an ultra-narrow red laser beam and for the flexibility to measure from the industry's shortest distance of 30cm (1ft.) up to 500m (1,640ft.). RED-tech EX performs accurate reflectorless measurement of building corners, telephone/electrical wires, manholes, and even through fences. Measuring beam spot size (Reflectorless mode) Distance 2m (6.6ft.) 10m (33ft.) 40m (131ft.) Measuring beam spot size (height x width) 5 x 7mm (0.2 x 0.28in.) 7 x 9mm (0.28 x 0.35in.) 14 x 14mm (0.55 x 0.55in.) Distance 100m (328ft.) 300m (984ft.) 500m (1640ft.) Measuring beam spot size (height x width) 29 x 24mm (1.14 x 0.95in.) 76 x 56mm (2.99 x 2.2in.) 123 x 89mm (4.84 x 3.5in.) Single Optimized Beam RED-tech EX uses only one laser beam for distance measurement and pointing, meaning it exactly measures the red laser point. The laser beam diameter and output level are automatically optimized according to the target type providing stability that you have never experienced before. Long Distance Measurement Measure distances up to 6,000m (19,680ft.) using a single AP prism and 500m (1,640ft.) using reflective sheet targets. Advanced Angle Measurement System SET X features SOKKIA's original absolute encoders that provide long-term reliability in any work-site conditions. SET1X and SET2X feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement. Trigger Key SET X features an ergonomically placed trigger key that greatly facilitates taking measurement while looking through the telescope and even while turning the fine motion screws. Measurement can be taken at any time with just the push of a button. Bluetooth® Wireless Technology Enjoy a wireless connection with your data collector or tablet PC for expanded data collection possibilities and seamless data handling. Class 1 Bluetooth wireless technology provides license-free prism-side communication of up to 200m. Multiple Memory Options SET X has 1MB of internal memory, CF card slot and USB ports. A 1GB SD card can also be used with an adapter. SFX SOKKIA's original SFX technology provides convenient data transfer anywhere in the world using an internet-capable mobile phone. Guide Light An easy-to-see guide light assists in setting out measurements. Green and red LED's visually guide the prism-side operator SET1X SET2X SET3X SET5X Windows CE Reflectorless Total Stations Model SET1X SET2X SET3X SET5X Laser output Reflectorless mode: Class 3R (max. 5W) Prism / Sheet mode: Class 1 equivalent (max. 0.22W) Measuring range Reflectorless*1 0.3 to 500m (1 to 1,640ft.) With reflective sheet target*2 RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) With 1 AP prism 1.3 to 5,000m (4.3 to 16,400ft.), to 6,000m (19,680ft.) under good conditions Distance accuracy Reflectorless*1 (3 + 2ppm x D)mm: 0.3 to 200m (1 to 650ft.) (5 + 10ppm x D)mm: over 200m to 350m (over 650 to 1,140ft.) (10 + 10ppm x D)mm: over 350m to 500m (over 1,140 to 1,640ft.) With reflective sheet target*2 (3 + 2ppm x D)mm With prism (1.5 + 2ppm x D)mm*3 (2 + 2ppm x D)mm Angle accuracy H&V 1" / 0.3mg 2" / 0.6mg 3" / 1mg 5" / 1.5mg Display resolutions (selectable) 0.5" / 1", 0.0001 / 0.0002gon, 0.002 / 0.005mil 1" / 5", 0.0002 / 0.001gon, 0.005 / 0.02mil Operating system Windows CE Data storage Internal memory 64MB (more than 1MB available for data) Memory card drive Compact Flash Type II (3.3V, max. 4GB) SD card (with CF adapter, max. 1GB) Interface Serial RS-232C (baud rate: 1,200 to 38,400bps), USB1.1 Host (Type A), Client (Type mini B) Bluetooth wireless modem Ver.2.0, Class 1 (Models without Bluetooth modems are available as factory options) Laser-pointer function Using red laser beam for distance measurement. (does not work simultaneously with the Guide Light) Guide light Two-color LEDs, single aperture, Class 1 LED Product Dust and water protection IP65 (IEC 60529:2001) (RS-232C serial cable or external power cable connection maintains IP65) Weight with handle and battery Approx. 7.0kg (15.4lb.) With optional F2 control panel: approx. 7.1kg (15.7lb.) *1 With KODAK Gray Card White side (90% reflective). Reflectorless range / accuracy may vary according to measuring objects, observation situations and environmental conditions. *2 When the measuring beam's incidence angle is within 30° in relation to the reflective sheet target. *3 With CPS12 high precision prism system. This unit will be cleaned and calibrated for 8 calibration points (V&H collimation, Double centering, Optical Plummet, line of sight, plunge, tilt sensor, bubbles, cross hair) in our service department prior to shipping. All batteries will be checked out to confirm that they have at least more than half-life otherwise will be re-celled. EDM will be base line tested to make sure it is reading good distances according to their specs. All these adjustments and calibrations are provided to all customers at no extra charge. Units will leave here in a good cosmetic condition as well. In other words, any unit shipped out to customers is basically ready to work at field. SET3X Total Station Lithium Ion Battery (2 qty.) Charger & Power Cable Adapter for BDC46 to BDC58 size Tubular Compass Sunshade Stylus Pen (qty. 2) Lens Cap Plumb Bob Tool Kit Operations Manual Hard Carrying Case Manufacturer's 2 Year Warranty Cosmetic condition is rated 8/10 Payment is due within 7 days from auction close date. We accept PayPal (PayPal e-Check preferred). Please remit your payment to the order of: International Surveying Equipment Inc. 2311 Cypress Cove Suite#102. Wesley Chapel, Fl 33544. Add to Favorite Seller View Feedback Ask Seller a Question About Seller Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Sokkia
Country/Region of Manufacture	Japan
Model	SET5X
Certificate is provided	ISEI is equipped with Full Electronic Service Shop
