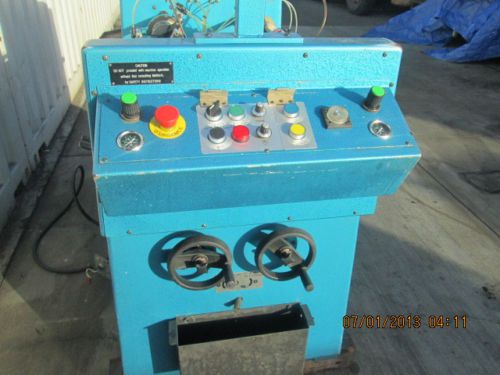

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 0

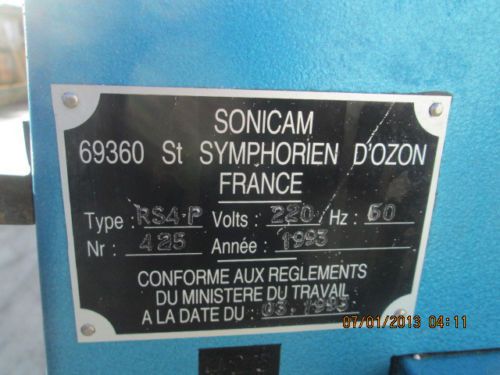

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 1

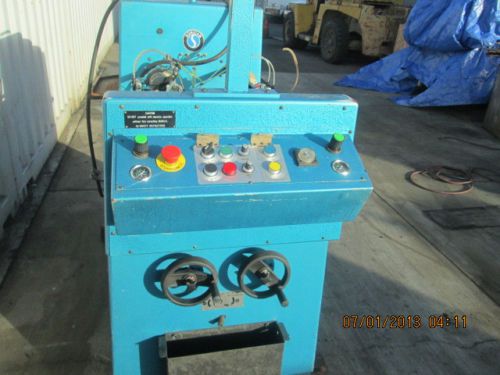

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 2

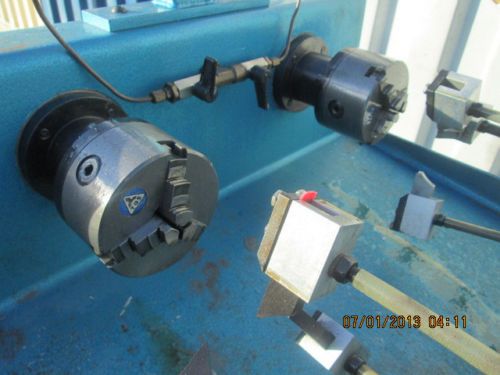

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 3

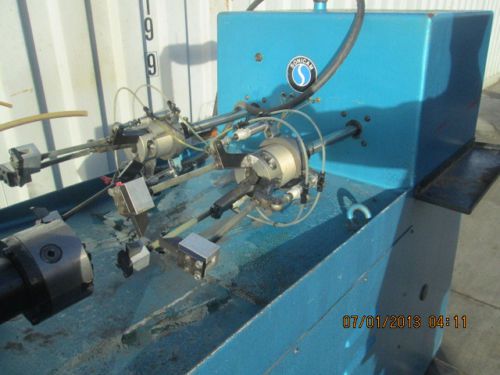

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 4

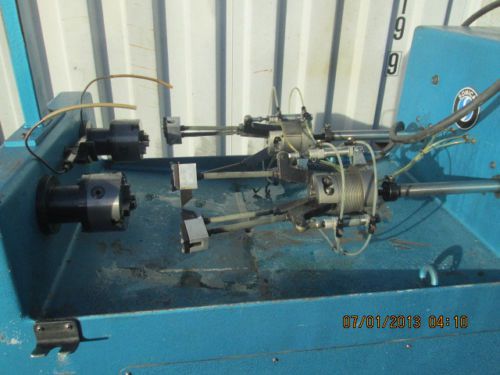

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 5

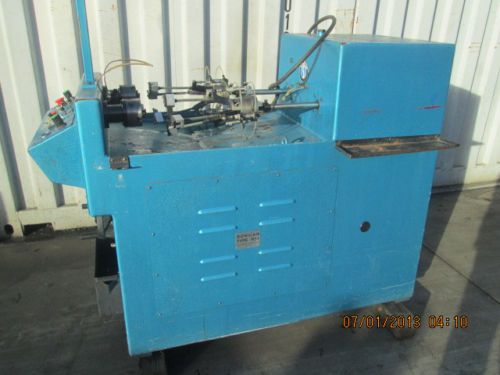

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 6

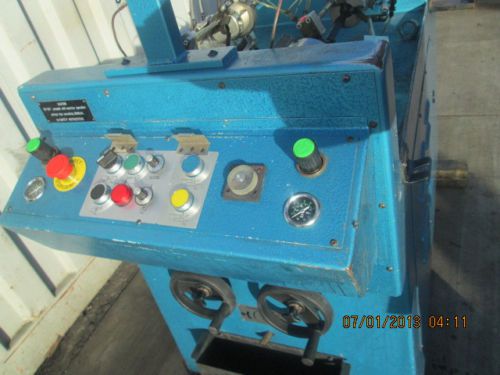

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 7

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 8

SONICAM MODEL RS4P PLUNGER POLISHING MACHINE FOR GLASS MOLDS, ETC., US $5,950.00 – Picture 9

Sonicam Model Rs4p Plunger Polishing Machine For Glass Molds, Etc.

US $5,950.00

Fountain Valley, California, United States
Jan 30th

Open on mobile:
QR code

SONICAM PLUNGER POLISHING MACHINE - TYPE RS4P The Sonicam Plunger Polishing Machine of Type RS4P operates the following way: The RS4P polishes all IS mould press & blow plungers, narrow neck and wide mouth. Plunger manufacturers can use the RS4P to finish the plungers and glass plants can use the machine for plunger maintenance. The polishing stones make a quick horizontal and longitudinal movement while the plunger rotates slowly in a chuck. The longitudinal movement of the polishing heads with the stones is completely mechanical with cranks driven by an electrical motor and variable speed-drive. The polishing heads with the stones are applied pneumatically and they open and close automatically at the end and the beginning of the cycle. A micro-compressor is incorporated in the machine. The machine has 2 sections that function simultaneously but can polish different plungers at the same time; the cycle time is set by a timer. The longitudinal speed is continuously adjustable for the 2 heads together as well as the rotating speed of the plungers. The Sonicam Plunger Polishing Machine of type RS4P offers the following advantages: Plungers of different sizes can be polished at the same time Longitudinal polishing, which is a must for the NNPB process Horizontal movement eliminates oil leaking on the chicks Possibility to polish with stones, diamond stones or felt and diamond paste The Sonicam Plunger Polishing Machine of Type RS4P is designed for: All plungers made of metallized steel, metallized cast-iron, refractory steel, cast steel or metallized tungsten-carbide alloys All used plungers NNPB process plungers and 62 process plungers Plungers of all hardness The main characteristics of the Machine Sonicam Plunger Polishing Machine of Type RS4P Machine with 2 horizontal sections Maximum stroke: 220 mm Maximum plunger ?: +/- 120 mm Stone cross section: 10 x 20 mm Electrical power: 220/230 V single 50/60 Hz Maximum pressure: 10 bar Dimensions (W x L x H): 860 x 1670 x 1440 mm, 480 kg
