Sony Dfw-vl500 Color Digital Lab Camera

US $345.00

San Francisco, California, United States
Mar 8th

Open on mobile:
QR code

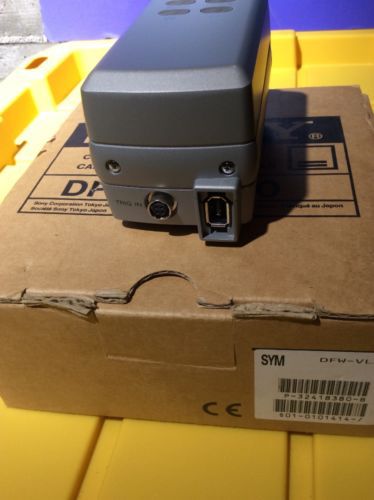

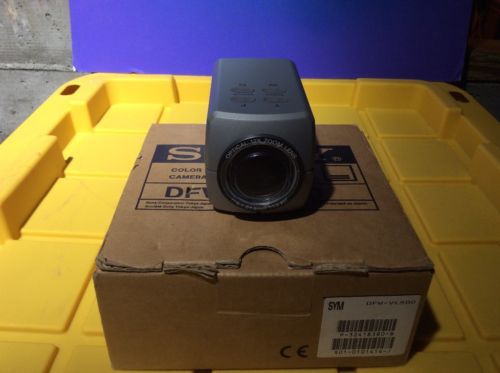

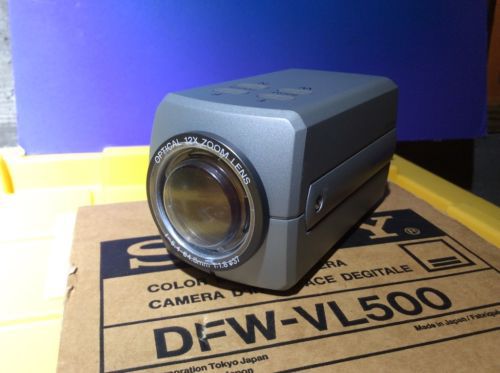

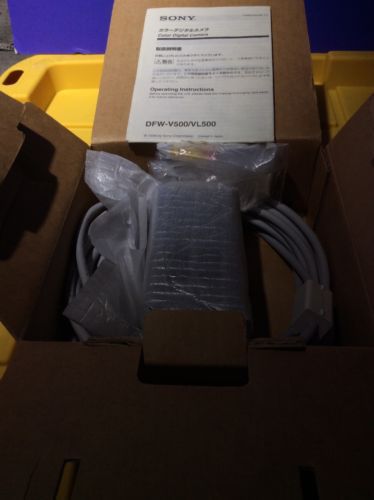

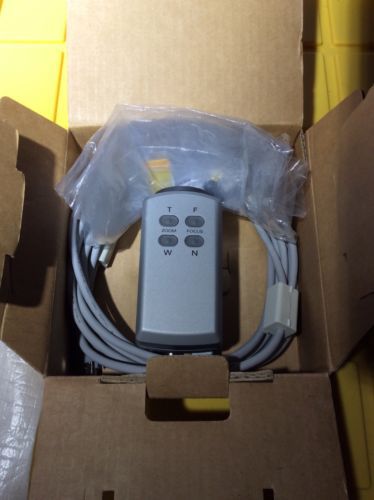

New in box with all original cables and equipment. The DFW-V500/VL500 is a color digital video camera utilizing a 1/3-type PS IT CCD. The DFW-V500 is the C-mounted type while the DFW-VL500 is a 12x zoom lens mounted type. The IEEE1394-1995 digital interface realizes a transfer speed of 400M bps and outputs VGA (640 x 480)/YUV (4 : 2 : 2)/30 fps. In addition, the DFW-V500/VL500 also adopts a primary color filter CCD to realize good color reproductivity. Furthermore, they digitally transmit the original image quality without “Analog-to-Digital conversion” on the video capture board. The square pixels eliminate the need for aspect ratio conversion in the image processor. 640 x 480 640 x 480 320 x 240 160 x 120 3.75, 7.5, 15, 30 fps and One Shot 100M, 200M, 400M bps YUV (4 : 2 : 2) YUV (4 : 1 : 1) YUV (4 : 2 : 2) YUV (4 : 4 : 4) 8 bits each Mode-3 8 bits each Mode-2 8 bits each Mode-1 8 bits each Mode-0 C-mount Built-in 12x zoom lens When the shooting distance is infinite, the focus distance Tele side is 64 mm, Wide side is 5.5 mm 0.8 m at whole MOD zoom area, 1 cm at Wide end (distance from lens tip) 17.526 mm 6 lx (F1.2) 14 lx (F1.8, Wide end) One Push (Color temperature during automatic adjustments: 2,400 K to 10,000 K)/ ATW (Color temperature during automatic adjustments: 2,800 K to 6,500 K) (Auto tracing)/ 3,200 K, 5,600 K, Manual adjustment Adjustable Adjustable Adjustable Adjustable/Manual adjustment (using the buttons on top side of the camera) Switchable between three positions ON (1/30 to 1/2,000)/OFF 5s to 1/15s, 1/30s to 1/10,000s, 1/20,000s, 1/50,000s, 1/100,000s Auto adjustment/Manual adjustment (0 to 18 dB, 1 dB/step) AGC operation range is the same as above ON/OFF DC +8 to +30 V (from IEEE1394 cable)/4 W –10 to +50°C/–20 to +60°C 60(W)x61(H)x116.7(D)mm 60(W)x61(H)x118.5(D)mm Approx. 305 g Approx. 335 g IEEE1394 cable (1), Lens mount cap (1) ... DFW-V500 Lens cap (1) ... DFW-VL500, Clamp filter (2) External trigger connector (male) (1), Operating Instructions (1) Image sensor : Number of effective pixels : Cell size : Interface format : Protocol : Data format : Frame rate : Transfer speed : Lens mount DFW-V500 : DFW-VL500 : Flange back DFW-V500 only : Minimum illumination DFW-V500 : DFW-VL500 : White balance : HUE : Saturation : Brightness : Zoom/Focus DFW-VL500 only : Gamma : CCD iris : Shutter : Gain : External trigger shutter : Supply voltage/power consumption : Operating temperature/storage temperature : Dimensions DFW-V500 : DFW-VL500 : Mass DFW-V500 : DFW-VL500 : Accessories : 1/3-type progressive scan IT CCD 659 (H) x 494 (V) 7.4 (H) x 7.4 (V) ?m IEEE1394-1995 1394-based Digital Camera Specification Version 1.20
