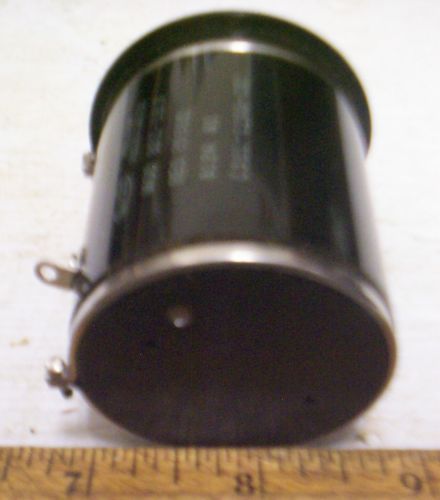

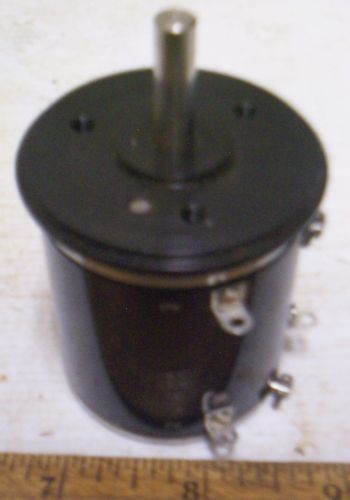

Spectoral - Precision Wire Wound Variable Resistor - P/n: 802-187

US $76

Hawthorne, Nevada, United States
Jan 29th

Open on mobile:
QR code

Genuine U.S. Military Issue Surplus Spectoral - Precision Wire Wound Variable Resistor - P/N: 802-187 P/N: 802-187 This item cross-references to the following.... BI Technologies Corporation P/N: 7609-578-0 P/N: 7709-72-1 Rockwell Collins Inc. P/N: 381-1206-000 Vishay Thin Film LLC P/N: 800-959 P/N: 802-187 NSN: 5905-00-020-2800 On the resistor it has.... 2 3 1 CW ---> Spectoral PRECISION POTENTIOMETER MOD 802-187 RES 2036? 8124 01 (381-1206-00) Characteristics Section Quantity: 1 Body Style: Cylindrical servo mounted Reliability Indicator: Not established Pilot Diameter: 1.8750 inches nominal Pilot Length: 0.0620 inches nominal Undercut Diameter: 1.812 inches nominal Undercut Width: 0.0620 inches nominal Body Diameter: 2.000 inches nominal Shaft Diameter: 0.250 inches nominal Shaft Length: 0.875 inches nominal Body Length: 1.988 inches nominal Mounting LIP Diameter: 1.8750 inches nominal Mounting LIP Depth: 0.0620 inches nominal Shaft Style: Round Actuator Type: Single shaft Effective Electrical Rotation in DEG Angular Rotation: 3620.0 nominal Maximum Starting Torque: 2.00 inch-ounces Maximum Running Torque: 1.50 inch-ounces Shaft End Play: 0.005 inches Shaft Runout: 0.002 inches Lateral Runout: 0.002 inches Pilot Diameter Runout: 0.002 inches Shaft Radial Play: 0.003 inches Terminal Location: Radially positioned over less than half the circumference Mounting Method: Clamp ring Electrical Resistance per Section: 2.036 kilohms single section Rotary Actuator Travel in Angular DEG: 3600.0 nominal Function Conformity Tolerance per Section: -0.20/+0.20 single section Power Dissipation Rating per Section in Watts: 8.0 free air single section Function Conformity per Section: Single section independent linearity Resistance Tolerance per Section in Percent: -5.0/+5.0 single section Actuator Travel Control Feature: Continuous motion Function Characteristic per Section: Single section linear Ambient Temp in DEG Celsius per Section at Full Rated Power: 125.0 single section Terminal Type and Quantity: 3 tab, solder lug Weight: 6 Oz. Similar to the one in the pictures. Unused! ***************************************************************************************************************** Please remember that the shipping cost to ship this item to a location within the United States is included in the selling price! No one can truly ship anything for free. The only difference between listings with free shipping compared to listings without free shipping is that the customer knows exactly how much the item will cost when purchasing it! ***************************************************************************************************************** We purchased a quantity of electron tubes at a yard sale recently. We had them checked out and put them in 4 catagories. Unused Used, but still working Used and not working. Unable to check. (Our tester did not have the proper equipment to test the tube.) Some of the tubes were in boxes that were not the correct box. We plan to ship the tubes in the small flat rate priority mail boxes. There should be less chance of breakage that way! ***************************************************************************************************************** ***************************************************************************************************************** Please be aware that our shipping and handling fees reflect not only the cost of shipping your purchase to you. But also the cost of packaging materials, our time and most importantly, our time hand delivering each package to the US Post Office. There is NO mail delivery or pick-up in our community, with the cost of fuel, we feel our shipping and handling costs are extremely fair! Save on shipping costs, by buying multiple items. Check out our other great items we have in our ebay store. Camo / BDU clothing Sizes from XS to 6XL!!! Items are being added weekly, so bookmark this page & return often, for you will never know what we`ll have for sale! Due to the increasing number of sales, it is taking longer for us to ship our sold items. We will make every effort to ship within 7 days from the time of purchase (payment)! Thank you for understanding this and we apologize for any inconvenience that this may cause you. If you are an international buyer, please do not ask us to mark the item as a gift on the customs form, we will not do this! ***************************************************************************************************************** Sign-up for our company's email. Receive emails with special offers and sales. Don't miss out on any of these great specials!!!! ***************************************************************************************************************** . ***************************************************************************************************************** (Ea - A) (RF - 063) (R2W S3S L3)

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“See Description”
