Spectracom 8225 Gps 5v 30db Outdoor Pole Mount Atomic Timing Receiver Antenna

US $174.00

Fairfax, Virginia, United States
Jan 29th

Open on mobile:
QR code

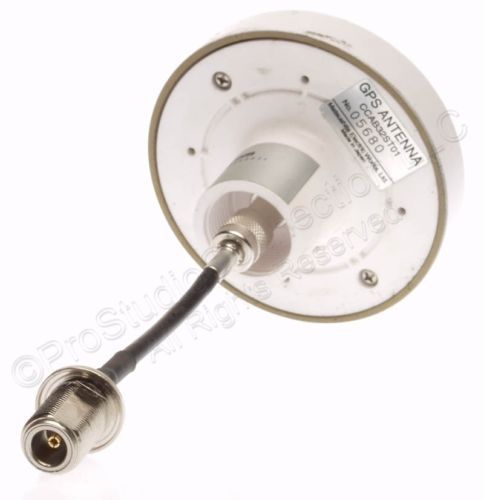

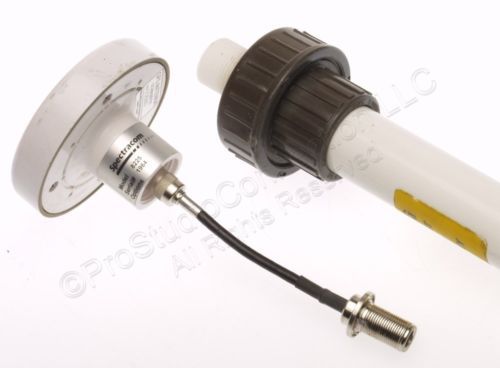

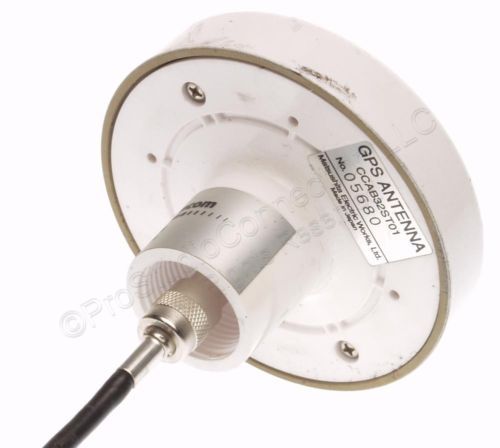

Spectracom 8225 GPS L1 30dB Outdoor Pole Mount Antenna Used, Good Condition Multiple item listing - so there will be minor cosmetic differences between units but the photos are representative of the condition of all units Product Overview The Model 8225 is an active GPS Outdoor Antenna tuned to receive 1575.42 MHz L1 band satellite transmissions. The received signals are passed through a narrow band-pass filter and a preamplifier within the antenna. The active antenna circuitry provides 30 dB of gain and requires +5 VDC at 27 milliamps (provided by a Spectracom GPS receiver over the antenna coax). Each antenna is terminated with a type “N” female connector via a BNC to N pigtail connector. Model 8225 features a weatherproof compact design measuring 3.5" in diameter. Each Spectracom antenna includes a mating two-foot PVC mast assembly that can easily be affixed to a vent pipe. ANTENNA LOCATION The GPS antenna must have an unobstructed line of sight to the sky. Rooftops that are clear of other structures or geographic features overhead, with views to the horizon, generally make good installation locations. Such a clear view allows the antenna to track the maximum number of satellites throughout the day. Installations with obstructed views may experience reduced reception quality and may not be able to track simultaneously the maximum number of satellites. When installing a GPS antenna, select a site at which the antenna will not become buried in drifting or accumulated snow. It should not be covered by foliage or placed in a position where it could become obstructed in this way. Whenever possible, avoid placing the GPS antenna in close proximity to broadcast antennas or near television or FM radio transmitters. Certain frequencies are harmonics of the GPS signal and can inhibit reception. ANTENNA CABLE & ACCESSORIES Spectracom recommends low loss coaxial cable such as Times Microwave LMR-400 for the GPS antenna cable. The attenuation characteristics of the LMR-400, or equivalent, at the L1 frequency (1575.42 MHz), limit the antenna cable length to a maximum of 300 feet (350 feet for 8100 Series). Spectracom recommends installing a lightning protection device in the antenna line to protect the receiver and connected devices. Spectracom offers a Surge Protector, Model 8226, to shunt potentially damaging voltages on the antenna coax to ground. Technical Specifications ELECTRICAL SPECIFICATIONS Type Active Frequency 1575.42 MHz Temperature range -30° to 80° C (-22° to 176°F) Gain 30 dB Connector N type, female Recommended cable Low Loss LMR-400 Equivalent Max. cable length 300 ft maximum Power 5 Volts, 27 milliamps, powered by receiver Physical & Environmental Specfications MECHANICAL Assembled length 26 inches (66 cm) Housing diameter 3.5 inches (8.9 cm) Housing material PVC Assembled weight 1.3 lbs. (.60 kg) Shipping weight 3.5 lbs. (1.6 kg) Mounting Hose clamps [not included] on vent pipe Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Used, in good condition and fully working. No unpictured cables, accessories or documents are included.”
