Spst 3 Line 4 Pos High Power Switch Up To 15,000 Va W Ac Dc Has Mount - 30 Amps

US $34.75

  • Chicago, Illinois, United States
  • Jun 9th
Open on mobile:
QR code

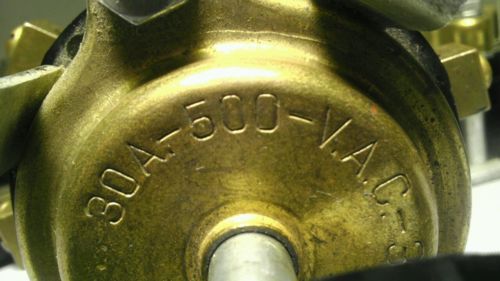

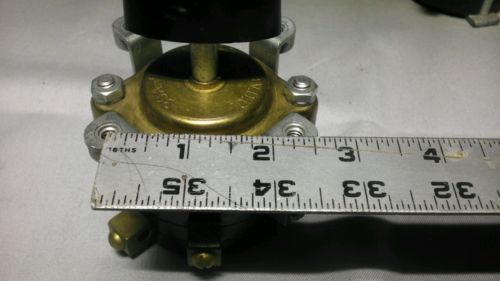

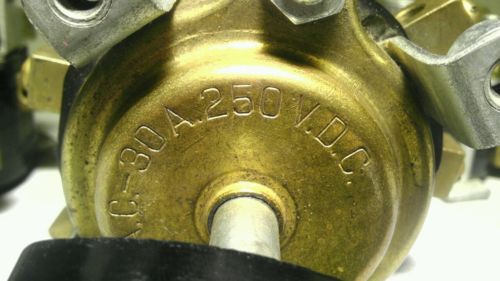

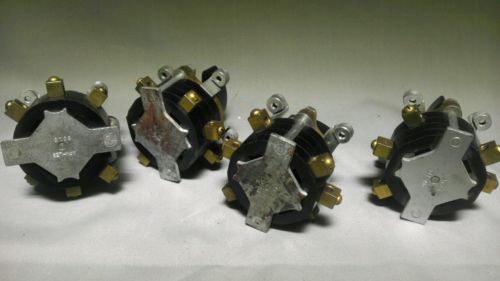

This listing is for ONE (1) very nice high power handling switch! (Truth table below!) We have 4 available (see photos) they are all in the same great condition. Almost new, they might be new old-stock but being listed as used. It had 4 screw mounts (center hole at 2.25 inches) The switch is about 3 inches tall (not counting knob/shaft) by 4 wide (from post to post) and 3.5 wide on the bottom mount) It weighs a little over 1.5 pounds each. Tested with conductivity test, works great!!! No flickers, direct on/off in ms's. Resistance when on is Equal or less then 1.5 Ohm It handles AC or DC AC: Rated for 30 Amps at 500 Volts (15,000 VA/W Max) DC: Rated for 30 Amps at 250 Volts (7,500 VA/W Max) 4 Position 3 Lines (3 In/out, with 4 options to switch to.) The truth table is as follows: Pos1 = B1, M0, T0 Pos2 = B0, M1, T1 Pos3 = B1, M0, T0 Pos4 = B0, M1, T1 Where B=Bottom Pin/Post, M=Middle Pin/Post, T=Top Pin/Post And 1=Connection, 0=Open NOTE: In Pos2 and Pos4, the M and T ARE separate lines, not connected to each other. SHIPPING NOTE: Shipping weight is 2 pounds, they do not fit in a small flat rate box, and they might get damaged in a bubble mailer. So they are being shipped medium flat rate box. Any questions or if you have another way you wish us to ship these, feel free to ask. YES if you buy all 4 (or more then 1) we should be able to combine shipping in 1 box. Any questions feel free to ask!
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “In great condition needs cleaning, lightly tarnished. Might be new old stock but being sold as used.”
