Stanford Research Srs Sr760 Fft Spectrum Analyzer

US $1,099.00

Austin, Texas, United States
Jan 29th

Open on mobile:
QR code

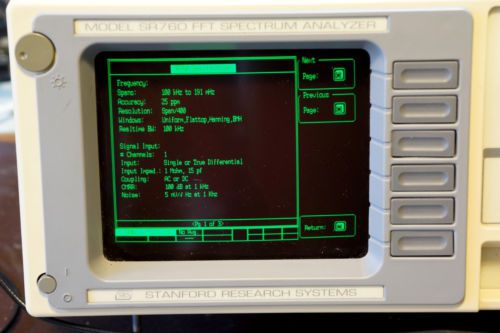

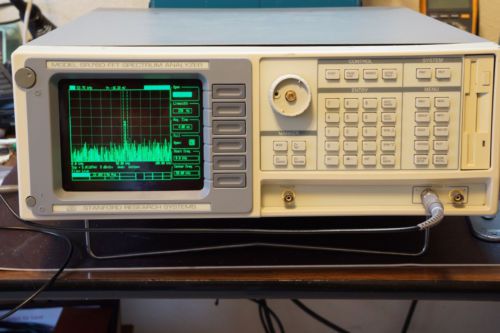

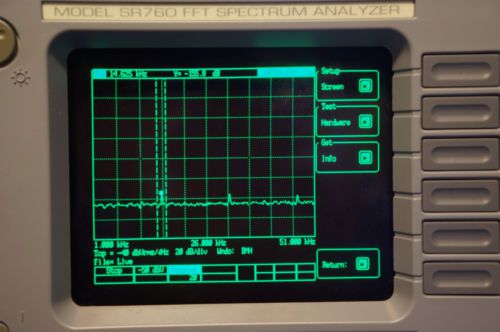

Stanford Research Systems SR760 FFT Spectrum Analyzer The SR760 is a single-channel 100 kHz FFT spectrum analyzer with a dynamic range of 90 dB and a real-time bandwidth of 100 kHz. Frequency span is from 0.191 Hz to 100 kHz. More information, including datasheets and user manuals can be found on the SRS Website About This Item This spectrum analyzer is clean and fully functional. It passes all self tests and performance tests, with the exception of the noise floor, which has a couple of small peaks at -156 dB (see photo). The average noise floor is still below the specification of -160 dB. The main knob front cover is missing, but the knob works well and turns smoothly (see photos). If you are unsatisfied with any aspect of this analyzer, you may return it under Ebay's no-hassle return program. You may also be interested in our SR770 listing, which passes all performance tests and features a built-in signal generator. Included In Sale SR760 FFT Spectrum Analyzer, S/N 14900 User Manual on CD Power Cord Specifications Inputs: 2 1MΩ inputs (1 single, or differential), plus external Trigger Input Range: -60 dBV to +34 dBV in 2dBV Steps Dynamic Range: 90 dB typical Sampling: 16 bits at 256 kHz Measure Modes: Spectrum, PSD, Time, 1/3 Octaves I/O Ports: IEEE-488, Printer, RS-232, PC Keyboard Span: 0.191 Hz to 100 KHz Accuracy: 25 ppm Resolution: Span/400 Dimensions: 20D x 17W x 7H inches Net weight: 34 pounds Perfomance Test Results *Performance tests (4) and (5) require a Fluke 5200A AC Calibrator and where not performed. 1. Self Tests: Pass 2. DC Offset: Pass Input Range Reading Upper Limit -30 dBV -95.61 dBV <-85 dBV -60 dBV -93.52 dBV <-85 dBV 3. Common Mode Rejection: Pass Input Range Frequency Reading Upper Limit -2 dBV 1.0 kHz -83.14 dBV <-80 dBV 4. Amplitude Accuracy and Flatness: Unable to test 5. Amplitude Linearity: Unable to test 6. Anti-Alias Filter Attenuation: Pass Input Frequency Reading Upper Limit 157 kHz -112.3 dB <-95 dB 7. Frequency Accuracy: Pass Input Frequency Reading Limit 10 kHz 10.00003 kHz 9.9999 kHz to 10.0001 kHz 8. Phase Accuracy: Pass Frequency Trigger Slope Reading Limit 10 kHz Rising -0.125 deg -3.0 deg to +3.0 deg 10 kHz Falling -179.5 deg +177.0 deg to-177.0 deg 9. Harmonic Distortion: Pass Fundamental Harmonic Reading Limit 24 kHz 48 kHz -84.44 dB < -80 dB 24 kHz 72 kHz -92.57 dB < -80 dB 24 kHz 96 kHz -93.25 dB < -80 dB 10. Noise and Spurious Signals: Pass Noise Floor Start Freq. Span Reading Limit 500 Hz 50 kHz -156.0 < -160 dBVrms/&sradic;Hz 50 kHz 50 kHz -161.0 < -160 dBVrms/&sradic;Hz Spurious Signals Center Freq. Span Reading Limit 200 Hz 390 Hz -135.6 dBV < -135 dBV 500 Hz 390 Hz -150.4 dBV < -140 dBV 1 kHz 1.56 kHz -143.7 dBV < -140 dBV 5 kHz 1.56 kHz -146.9 dBV < -140 dBV 10 kHz 1.56 kHz -148.1 dBV < -140 dBV 25 kHz 1.56 kHz -146.9 dBV < -140 dBV 50 kHz 1.56 kHz -147.3 dBV < -140 dBV 75 kHz 1.56 kHz -149.0 dBV < -140 dBV 99 kHz 1.56 kHz -148.3 dBV < -140 dBV Shipping We carefully pack all items to insure safe shipment We ship within 1 business day after receiving payment. Often we are able to ship the same day as payment. Payment We accept Paypal and credit cards through Paypal. Please pay within 3 days from end of auction. Terms of Sale If you are unsatisfied for any reason with your purchase, you may return it within 30 days usign Ebay's no-hassle return program. Return shipping costs are the responsibility of the buyer unless the item you receive does not match the description. About Sanook Sales Sanook Sales specializes in value-added surplus sales of test equipment and other industrial items. We have an electrical engineer on staff that tests and refurbishes as needed the equipment we sale so you can be confident the item you purchase has been accurately described and functioning as stated.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Clean, excellent condition. Passes all self tests. Passes all performance tests except for noise floor, which has a couple of little bumps 4 dB above -160 dB noise floor. See listing for complete details.”
