Star Ecas 20 Type 570 Cnc Swiss Screw Machine With Lns Express 220 Barfeed

US $75,000.00

Woodville, Wisconsin, United States
Jan 30th

Open on mobile:
QR code

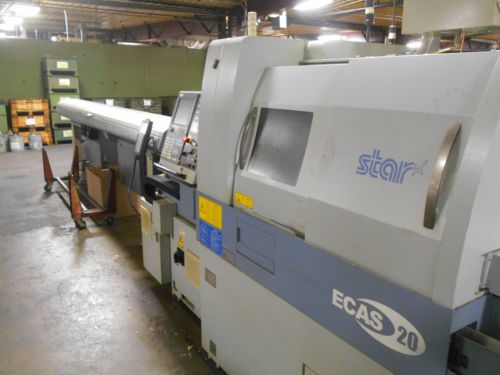

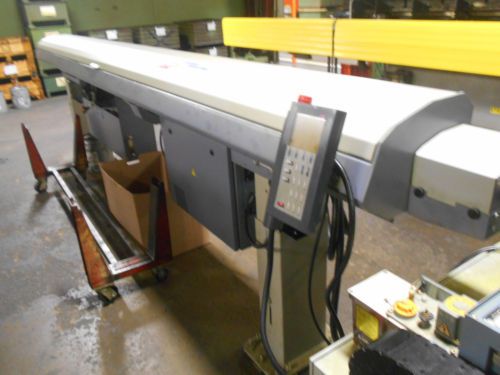

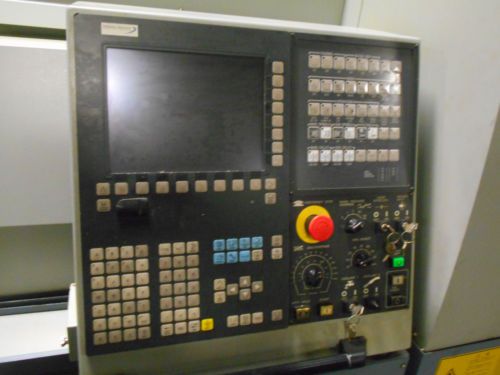

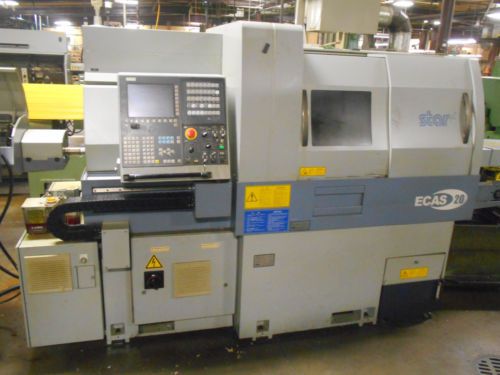

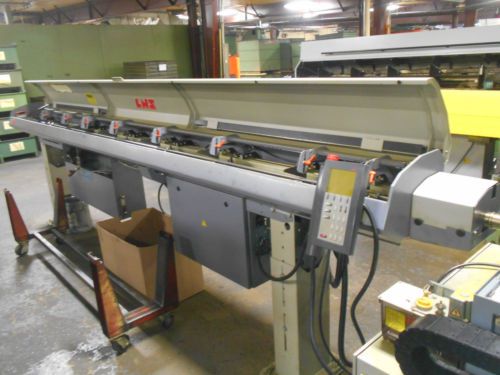

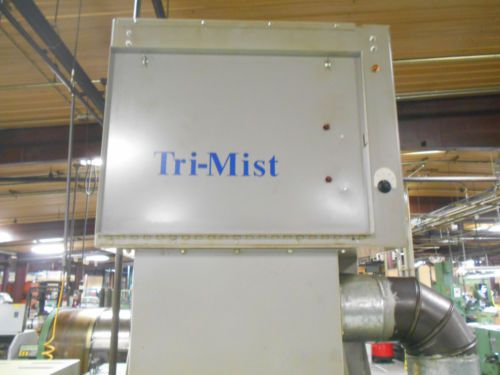

Star Ecas 20 Type 570 CNC Screw Machine with LNS Express 220 barfeed. Equipped with: Siemens Yaskawa 840DI CNC Control, X1 and Y1 Travels on front Main slide, X3, Y3, Z3 Travwls on Rear Main Slide, (6) Live Turning Tools on Main, (4) Live Rear Endworking Positions with (3) Live Holders, Sub-Spindle, C-Axis Programmable on Main and Sub-Spindles, Magic Expandable Guide Bushing and Standard Guide Bushings, (4) Position Front Endworking Block, Trimist Collector, Parts Catcher and Small Parts Conveyor, Coolant System, LNS Express 220 12' Magazine Bar Feed (S/N 135103), Program Utility Software,Guide Tube For Long Parts Ejection, Manuals. Electronics: 220 Volt, 3 Phase Main Unit Approx Weight: 7700 lbs. Main Unit Dimensions: (in inches) Length: 115" Width : 48" Height: 101" Additional Components: LNS Express 220 Bar Feed: L: 189" W: 20" H: 49" Approx weight 3000 lbs Manufacture: Star Model: Ecas20 Year: 2004 Serial No: 0191 Specs: Control: Yaskawa Siemens CNC Control Max. Machining diameter: 20mm Max. Machining length: 8" Max Z1 Headstock stroke Main Spindle Speeds: 10,000 Max RPM Main Spindle Indexing: Full C-Axis Back Spindle Speeds: 10,000 Max RPM Sub-Spindle Indexing: Full C-Axis Rotary Tool Speeds: 8,000 Max RPM Back Spindle Max Chucking Diameter: 20mm Turning Tools: (6) 4 on front and 2 on rear slide Rotary (Live) Tools: 3 on Main Front Slide 3 on Main Rear Slide Front Endworking Tools: 4 Back Endworking Tools: 4 Position Rear Endworking Block Cutting Tool Shank/Sleeve Size: 1/2" Rapid Traverse (X/Y/Z): 708.66 IPM Main Spindle Drive: 5 Hp Back Spindle Drive: 5 Hp Rotary Tool Drive: 1,7Hp Machine is set up and can be seen under power by appointment. Seller Company: McMillan Electric Co. Seller Contact: Floyd Ankrum Phone: 715-698-7124 Item Location: McMillan Electric Company, 400 Best Road, Woodville WI. 54028 Loading Dock: Truck Level Dock with Dock Plate Terms: All sales are final, Item sold as is, where is, with no warranty. Buyer will be responsible for all rigging and freight. Payment Terms: $2500.00 down with Paypal then payment by Cashiers Check or wire transfer must be made in Full prior to removal.
