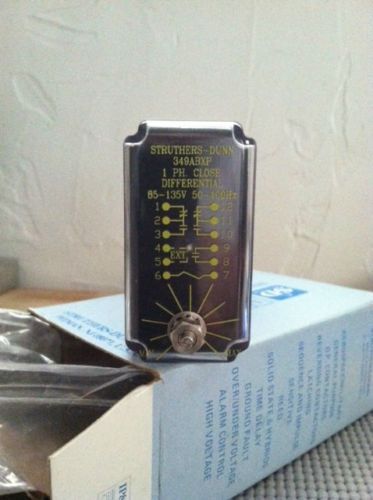

Struthers-dunn 349abxp-85-135vac Over/under Voltage Sensor Relays

US $49.00

  • United States
  • Jan 29th
Open on mobile:
QR code
                                               Item # 349ABXP-85-135VAC, 349 Series - Over/Under Voltage Sensor Relays Under / Over voltage sensing relay incorporating 219 series internal components coupled with an electronic module. Pull-in voltage is adjustable from 85 to 135VAC for frequencies ranging from 50 to 400 hertz. Hysteresis is typically set for a 4 volt differential but can be user adjustable from 3 to 14 volts when external connections are available. For Additional Configuration please contact the manufacturer.  · SPECIFICATIONS · CONTACTS · COIL · DIELECTRIC STRENGTH · TEMPERATURE · LIFE EXPECTANCY · MISCELLANEOUS SPECIFICATIONS Series  349   Contact Arrangement  ABX - (SPST - NO + DPDT)   Standard Features  Plug-in with polycarbonate cover   Coil Voltage  85-135 VAC   CONTACTS Contact Configuration  Up to 4 pole   Contact Material  Silver Alloy Gold Diffused   Contact Rating  10 A   Contact Rating 120 / 240VAC Resistive  10 A / 10 A   Contact Rating 28VDC Resistive  10 A   Minimum Contact Load  500 mW     Contact Resistance, Initial  100 milliohms max at 6VDC  COIL Coils Available  AC  Power Consumption  5 VA  Input Voltage Absolute Maximum  +60% of nominal  Pickup Voltage Range  3 to 14 volts over drop out  Dropout Voltage Range  85 to 135VAC  Transient Protection  Yes  Duty  Continuous  DIELECTRIC STRENGTH Across Open Contacts  500 Vrms  Between Mutually Insulated Point  1500 Vrms  Insulation Resistance  1,000 Mohms min at 500VDC  TEMPERATURE -20 to 60 ?C  Operating  -4 to 140 ?F  -40 to 85 ?C  Storage -40 to 185 ?F  LIFE EXPECTANCY Electrical (full load)  100,000  Mechanical (no load)  10,000,000  MISCELLANEOUS Mounting Position  Any    Mating Socket  27390, 27390D  Accessories  Hold down clip integral to relay  Enclosure  Clear Polycarbonate  8.6 oz  Weight 244 g
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Brand STRUTHERS-DUNN
MPN 349ABXP
Model 349ABXP
