Sun Electronic Systems Ec11 Environmental Test Chamber +315c .7 Cu. Ft. W/inert

US $3,019.99

Phoenix, Arizona, United States
Jan 30th

Open on mobile:
QR code

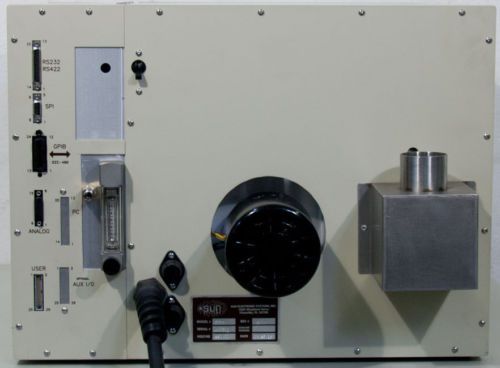

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Sun Systems EC11 Environmental Test Chamber Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Sun Systems and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit is fully tested to heat and is guaranteed to work! The Unit's Serial Number Tag Reads: Model Number: EC11 Power Requirements: 220 VAC / 60 Hz Link to the Datasheet: Sun Systems EC-Series Environmental Chamber Datasheet Link to the Manual: Sun Systems EC1X Series Environmental Chamber Manual Key Features: 0.7 Cubic Feet Working Volume Integral User Temperature Probe LCO2, -73°C to +315°C Cooling or LN2, -184°C to +315°C -(this unit does not have a cooling setup but it can be added from the factory for $120.00) IEEE-488, RS232, RS422 Remote Communication Expanded I/O Architecture - Analog Input Ports, Analog Output Ports, Auxiliary I/O Drivers, Digital Parallel Port, High Speed Serial Link Local Temperature - Controlled Ramping Description: The E11 is an advanced environmental chamber intended for automated test system and laboratory appellations which require fast temperature cycling. Temperature ramping rates are locally controlled from 0.01°C/sec. The Model EC11 is ideally suited for many forms of MIL-883 testing and other forms of fast temperature cycling testing. Local programs are entered using a BASIC like command set programming language. In automated test systems, the EC11 functions as a remote data acquisition and control system using the capability of its expanded I/O architecture. General Specifications: Mechanical: Internal Dimensions: 12.0" W x 9.75" H x 10.25" D (30.5 cm x 24.75 cm x 26.0 cm) Test Volume: 0.7 ft3 (0.020 cm3) Overall Dimensions: 21.0" W x 16.0" H x 24.0" D (53.3 cm x 40.6 cm x 61.0 cm) Door: Interior Construction: Stainless Steel, with exhaust port Coolant Input: LCO2 37° male fitting, 1/4" tube Optional LN2: 45° male fitting, 1/2" tube Exhaust: 3/8" NPT, male Weight: 49 lbs typical (22 kg) Performance: Set Temperature Range (LCO2): -73°C to +315°C (-100°F to +600°F) - there is no cooling option installed right now but it can be added for as low as $120.00 from the factory! With LN2 Option: -184°C to +315°C (-300°F to +600°F) - there is no cooling option installed right now but it can be added for as low as $120.00 from the factory! Temperature Ramping Rate Range (Heating and Cooling): 0.01°C to 48°C/min (0.02°F to 86°F/min) Number of Programmable Temperature Setpoints: 100+ Time at Temperature Setpoint Range: 1.0 sec to 99 hr, 59 min, 59 sec Number of Programmable Set Times: Typically 100+ Air Circulation: 120 CFM, vertical Absolute Error Over Temp Range (Not Including Probe Error): ±0.5°C (±0.9°F) Temperature Resolution (Approx.): 0.02°C (0.04°F) Long Term Stability (Per Month): ±0.2°C (±0.4°C) Line Voltage Sensitivity: ±0.1°C (±0.2°F) for ±10% Line Voltage Change Ambient Temperature Operating Range: 0°C to 50°C (32°F to 122°F) Local Control: 29 Key Keyboard (2 Line LCD Display) Remote Control: RS232 / RS422 / IEEE-488 bus IEEE-488 to RS232/RS422: Software/Bidirectional Transparent Operation Safety: Line Voltage Dropout: Program and Parameters Stored in Battery Backed Memory (Programmable Automatic Restart after Power Loss) Fail Safe: Open/Short Probe Detection, Watch-dog Timer, Software Temperature Limits, Over-temperature Thermostat Electrical: Heating Input: 3600 Watts Power Requirements: 4200 Watts max, 220 VAC, 50/60 Hz, 1 Phase For More Pictures Please Click the Following: Picture 2 - Back View Picture 3 - Right Side View Picture 4 - Left Side View Picture 5 - Controls & Display Picture 6 - Chamber Doors Picture 7 - Inside the Doors Picture 8 - Inside the Chamber Picture 9 - Nitrogen Purge Connection & Flow Valve Picture 10 - Communication Interfaces $75.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 01/20/12 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.
