Sunrise Telecom Sunset Ocx Sonet Analyzer Ssocx-a Ds1 Ds3

US $495.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

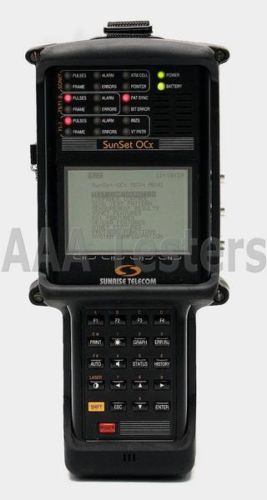

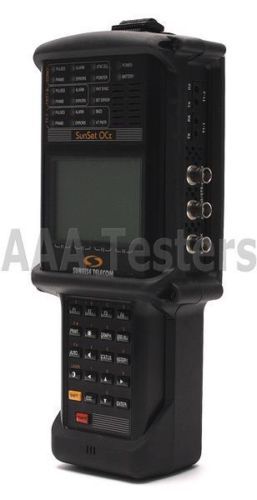

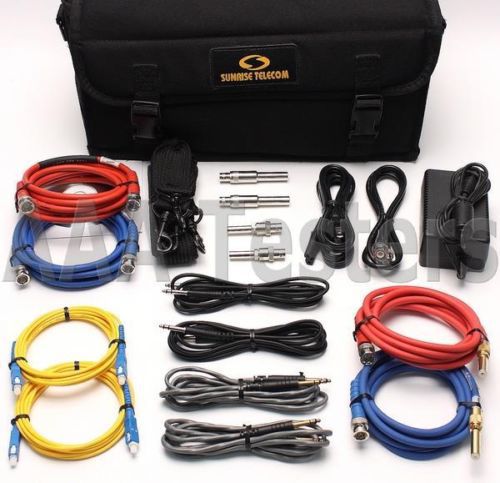

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Sunrise Telecom Sunset SSOCx-A Handheld Analyzer (BC# 17181) Testing Options: DS1 DS3 (2) BNC To 440 Adapter Cables (1-Red, 1-Blue) Westek P/N: TC-500Tx BNC To BNC Cable (Blue) Westek P/N: TC-500Rx BNC To BNC Cable (Red) BNC To BNC Cable (Black) (4) Bantam To Bantam Cables (2) BNC To 358 Adapters (2) BNC To 440 Adapters (2) SM SC-SC Fiber Cables AC Adapter/Charger Power Cord User Manual On CD-ROM Strap For Unit Carrying Case w/ Strap BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Sunrise Telecom SunSet OCx Model SSOCx-A Handheld Analyzer for SONET Network Installation, Testing, and Maintenance. This unit has DS1 & DS3 Testing Capabilities Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Configurations SSOCx-L SSOCx-A SSOCx-B SSOCx-C SSOCx-D SSOCx-E Dual DS1 1.5M ? ? ? ? ? Dual DS3 45M ? ? ? ? ? STS-1 52M ? ? ? ? OC-1 52M ? ? ? OC-3 155M ? ? ? OC-12 622M ? ? OC-48 2.5G ? Dual Wavelength ? DS1/DS3 Pulse Mask ? ? ? ? A single solution for protocol analysis and physical layer troubleshooting– The SunSet OCx As telecommunications networks expand to higher bandwidths and wider arrays of services, it becomes more and more difficult to properly install, maintain, and troubleshoot them. A typical technician may be responsible for turning up and integrating many different services, requiring a host of skills, training, and equipment. In addition, the modern access network combines many independent physical and protocol layers. A single voice or data connection may span the networks of several different companies including Regional Bell Operating Companies (RBOCs), Incumbent and Competitive Local Exchange Carriers (ILECs and CLECs), and other private and public networks. The Challenge– comprehensive access network testing The SunSet OCx is the latest generation of access network test sets from Sunrise Telecom, the industry leader in design and manufacture of handheld telecommunications service verification equipment. It offers DS0 to OC-48 testing, along with all the service verification tools you need, including ATM, GR-303, Voice, and ISDN PRI. Technicians can increase efficiency, consolidate training, and save time and money by testing all these rates and services with a single handheld unit. Among handheld test sets, only the SunSet OCx has the feature set to ensure quality connections across the entire Access Network. A complete kit of powerful protocol analysis tools– in one handheld unit Incorporating the most popular and powerful features for testing T-carrier (T1 and T3) and Synchronous Optical NETworks (SONET), the SunSet OCx is also a full-featured protocol analyzer. The SunSet OCx analyzes Internet Protocol (IP), Asynchronous Transfer Mode (ATM), Primary Rate Integrated Services Digital Network (ISDN PRI), Bellcore GR-303-CORE, Frame Relay, and Signaling System 7 (SS7), as well as traditional voice frequency (VF) and trunk conditioning functions. The SunSet OCx is battery powered and field upgradeable. Its light weight, durability, long battery life, and low cost make it the ideal tool for field technicians in the Access Network. The comprehensive measurements and advanced features are also well-suited for central office and laboratory environments. Power to grow The SunSet OCx has the flexibility to grow as your network grows. If you only require DS3 and DS1 testing today, you can add SONET testing later with an easy software upgrade. Add features like ATM and GR-303 when you need them. Easy to use The OCx has a high-contrast color, backlit display and well-organized measurement screens that allow for quick access to all test results. The dual-state LEDs give unambiguous alarm and error information. The measurement screens collect all the important data at a glance; the dynamic summary screen provides an upto- the-moment summary of all errors and alarms. Intuitive menus and function keys allow technicians to configure the test set quickly. The AUTO key simplifies test setup. Basic Testing Features BERT up to 2.5 Gbps Bidirectional DS1 drop/insert Loopback and span control VF/DS0 and fractional T1 Full complement of test patterns Error injection & alarm generation 16 MB data storage Advanced Testing Tools Mux/Demux Testing & Emulation Pulse Mask Analysis SONET Overhead Control DS3 FEAC & C-bit Monitoring DS1 Data Link Remote Control Protocol Analysis/Emulation ATM/IP VF Dialing ISDN PRI GR-303 SS7 Frame Relay Advanced SONET tranmission testing & analysis–in a handheld Don’t let its size fool you—the SunSet OCx offers extensive features for SONET testing and analysis. With the SunSet OCx, operators can access the SONET network at the optical or electrical interface, including STS/OC-1, OC-3/3c, OC-12/12c, and OC-48/48c. It supports mapping for DS3, DS3/DS1 and VT1.5. Comprehensive SONET errors and alarms are conveniently sorted by near-end and far-end, section, line, and path, complying to Bellcore GR-253. Tests range from simple verification of power level & frequency for efficient field installation and maintenance, to advanced features like overhead control/decode and multiplex testing. SONET for the field Lightweight, handheld, and ruggedized, the SunSet OCx is uniquely suited for field applications. The OCx gives you long battery life and a color display that is easily readable under all lighting conditions, indoor and outdoor. The OCx has the power and features you would expect from a benchtop box in a platform you can take anywhere. Applications for the field technician: Verify network continuity Easily detect SONET errors and alarms with LEDs and well-organized results screens Monitor pointer movement in the network or adjust the pointer values to stress network elements APS Timing Automatic Protection Switching is an important, mission-critical function o SONET. The SunSet OCx allows you to qualify this vital system by measuring the time it takes for a working circuit to switch to the protection circuit. The user can select the desired switch and gate times and the OCx will give a clear pass/fail indication along with the time measurement. Sensors and Switching Criteria: Line and Path AIS Line Parity Errors (B2) DS3 Errors The SunSet OCx also measures the duration of service disruptions & loss of pattern with millisecond resolution. SONET Overhead Control Nearly five percent of the SONET frame is dedicated to overhead. This overhead includes important network properties such as parity (B1, B2, B3, and VTBIP-2), protection switching (K1, K2), pointers (H1-H2), network status (S1, G1, V5), and defects (AIS, RDI, REI, etc.). The SunSet OCx gives you easy access to the entire section, line, path, and virtual tributary path overhead, displaying the hex values and their decodes. The OCx also provides control of transmitted overhead bytes, pointer values, and pointer movement. SONET Overhead Highlights Decode/encode of overhead bytes Display & modify traces (J0, J1, J2) as text characters Data Communications Channel (D1-D3, D4-D12) VT1.5 overhead control (V1-V5, J2, etc.) Comprehensive T-Carrier Testing Just because the SunSet OCx is designed for high speed optical rates and data-centric protocols like ATM does not mean that you need to sacrifice the traditional T-carrier applications. In fact, the SunSet OCx offers all the transmission testing applications for T1 and T3 circuits. Loopback Control Loopback testing is a vital tool for circuit turn-up and troubleshooting. The SunSet OCx provides a variety of options for looping DS1 and DS3 circuits, allowing technicians to isolate a fault quickly from a single location, saving time and truck rolls. In-band and data link codes Addressable repeaters (Westell/Teltrend) HDSL loopbacks DS3 and DS3/DS1 FEAC codes Easy-to-read diagrams The OCx can also emulate CSU or NIU equipment and respond to loopback commands. DS1 Testing Features The SunSet OCx comes standard with a variety of easy-to-use tools for testing DS1 networks. View Received Data shows all 24 timeslots over 20 DS1 frames—ideal for seeing in-band alarms and messages, identifying an ISDN D-Channel, or looking at simple test patterns. Quicktest I/II allows a technician to program a variety of test patterns for a set duration. At the end of the test, the OCx provides the test results for each pattern as well as a clear pass/fail indication. Quicktests can also automatically loop up and loop down the circuit. Bridge Tap Detect uses specialized test patterns to determine if bridge taps are on the line. Propagation Delay provides the roundtrip delay of a test pattern through the DS1 network. Pulse Mask Analysis The pulse mask feature gives you a quick and powerful tool to analyze and qualify a DS1 or DS3 circuit. Physical layer problems become readily apparent, making for quick fault diagnosis. The SunSet OCx measures the shape and key parameters of the pulse, displaying the pulse on the screen. The OCx then compares the shape to predefined templates based on governing standards and provides an easy-to-interpret pass/fail test. DS1 Data Link Monitoring the DS1 Data Link is an excellent way to discover errors which otherwise could not be detected at your monitoring point. Decodes of bit messages provide valuable information such as alarms and protection switching. Performance reports provide a comprehensive snapshot of the health of the circuit. The SunSet OCx monitors and decodes both bit and performance report messages. The OCx also transmits bit codes selected by the user or performance reports compiled from its own measurement results. DS3 FEAC Monitor and transmit messages carried by the Far End Alarm and Control Channel used in C-bit framing to provide circuit status and loopback control. ATM Features The SunSet OCx is the single testing solution for both the physical layer and the ATM layer. With one test set, a single technician can verify network performance with and without ATM traffic. All applicable network rates from T1 to OC- 48c are available in one chassis, eliminating the need for multiple ATM test sets. The full-featured ATM testing capabilities of the SunSet OCx provide the power and flexibility to install and troubleshoot an ATM network from the ground up. The OCx can test and monitor transmission between separate network elements (NNI) or between the network and edge devices. Here it can verify network provisioning; perform stress tests; conduct BER testing; and monitor responses to alarms, errors, and OAM cells. The SunSet OCx allows you to nonintrusively monitor traffic across the network, gathering statistics on congestion, bandwidth, idle cells, OAM cells, and errors. Any SONET or T-carrier network provisioned for ATM traffic needs to be qualified for ATM. If you lease your network to service providers using ATM, you need a tool to test, verify, and troubleshoot the network and the traffic it is carrying. Conversely, if you are responsible for the ATM traffic, you must verify that the network is error-free and functioning properly, especially when you do not own the network. When traffic is disrupted, you cannot waste valuable time and money on finger pointing. Traffic Generation Generate multiple independent VCCs. With the SunSet OCx, you can program up to eight independent VCCs, each with their own traffic pattern and payload, up to 100% of your ATM network capacity. The OCx supports O.191 test cells or user cells with pseudo-random or 16-bit patterns. Insert Errors and OAM Cells. Inject bit errors, HEC errors, or OAM Fault Management cells into your generated traffic. Traffic Supervision VCC Scan. View the traffic moving across the network including the cell header and bandwidth. Filter on VPI or select one or more VCCs for more detailed traffic statistics. BERT and Quality of Service (QoS). The SunSet OCx supports QoS measurements, such as cell delay variation, cell loss ratio, and bit error rate testing. Capture and store cells. Save, view, decode, and analyze user and OAM cells. Decode the ATM header and OAM function fields. DSL Testing Highlights Automatic detection of SunSet xDSL Independent upstream and downstream rates Bit error rate and throughput testing ATM over SONET and T-Carrier out of the DSLAM DSL Testing As DSL becomes widely deployed, DSLAM (Digital Subscriber Loop ATM Multiplexer) installation verification is becoming more critical in ensuring proper functionality. However, when the full backbone is not operational, only limited testing can be achieved. To solve this problem, Sunrise Telecom has developed an innovative test solution for DSLAM turn-up verification. The SunSet OCx works hand-in-hand with the SunSet xDSL to perform dualended, asymmetric ADSL qualification. These tests not only allow you to verify installation, but also the qualification of the Optical Carrier and the DSL copper pair simultaneously. This help qualify DLC (Digital Loop Carrier) Systems and verify proper provisioning of the remote DSLAM. ATM IP Testing The predominant application for ATM networks, especially for DSL services, is the Internet. Testing the IP layer is critical for qualifying an ATM connection. Though it only takes a few minutes, the IP PING test can qualify not only the ATM network, but reach through Ethernet, Packet over SONET, and other IP-centric networks. ATM/IP Testing Highlights RFC 1483 Bridged and Routed, PPPoA, and P PoE Static and dynamic addresses PING generation and automated PING response Powerful signaling and protocol analysis in your hand VF/DS0 Testing The SunSet OCx contains complete diagnostic tools necessary to install and troubleshoot voice circuits. Full duplex drop and insert testing allows the user to place a call on one channel while the T1 remains in service. Verify and monitor service, signaling, digits, and noise level. You can also check the voice path with the integrated microphone and speaker or handset. Full physical layer results allow transmission verification while measuring signal levels and error or alarm conditions. VF/DS0 Highlights Full duplex drop and insert testing Talk/listen or send/receive test tones E&M, loop-start and ground-start with FXO/FXS Dialing: DTMF, MF, pulse Digit capture and analysis Scan mode for receiving calls or digits Noise Measurements: S/N, 3k-flat, Cmessage, C-notch Monitor calls: voice, signaling sequences with timestamps ISDN PRI PRI trouble can be caused by a variety of sources such as physical layer errors, timing, switch translations, and protocol problems. A PRI test set that combines full-featured T1 and PRI testing lets you identify trouble the first time to avoid costly revisits. The SunSet OCx’s ISDN Primary Rate option rivals protocol analyzers and equipment dedicated solely to PRI testing. You can use the OCx to install new PRI circuits or PBX equipment by placing/receiving voice and data calls. Talk/listen and BERT testing verify the B-channel connection. Inservice monitoring can troubleshoot problems with a full D-channel decode, message filters, and storage. ISDN PRI Highlights TE/NT Emulation National ISDN, AT&T, and Nortel DMS 23B+D, 47B+D, or 46B+2D testing Talk/listen for voice calls: Standard, 3.1k BERT data calls: 56k, 64k, Nx64k Backup D-channel test for NFAS circuits D-channel monitor with full decode Trace filtering and storage Signaling System 7 The SS7 option places powerful SS7 protocol analysis and monitoring in the hands of the field technician. Protocol decodes help technicians determine a preliminary diagnosis to SS7 network problems. Statistics screens show traffic utilization, frame types, and retransmission. Powerful filters aid in quick troubleshooting by focusing on a specific customer, message type, OPC/DPC, etc. SS7 Highlights Protocol analysis for SS7 TUP, ISUP, SCCP, SNM, & SNT messages TCAP filtering, capturing, & decoding of Transaction, Dialog, and Component Portions Capture layer 1 events (alarms) Capture and decode layer 2 , 3, and 4 protocol messages\ Frame Relay features The Frame Relay option adds powerful frame relay testing to the SunSet OCx’s thorough physical ayer testing, providing the perfect solution for installing and maintaining frame relay networks running over a T1 interface. Complete physical layer testing, along with frame level simulation and analysis, is essential, since frame relay lacks its own error checking capabilities. The SunSet OCx provides the fastest method for verifying performance and maintaining quality of service in frame relay networks. In-service monitoring: In-service monitoring provides vital statistics on frame relay performance: utilization percentage, throughput (max, min, avg), and frame size. It also gives essential troubleshooting results for congestion, aborted frames, short frames, discarded frames, and FCS (frame check sequence) errors. IP PING: The IP PING feature tests connectivity all the way to the user's IP LAN connection. Results include the number of errored or unreached PINGs and the round trip return time. FOX Testing (Stress Testing): The SunSet OCx's load generation feature is capable of stress testing the network's various frame loads. This ability to generate traffic helps determine if the CIR (committed information rate) is achieved. Remote Control You can control the SunSet OCx remotely from your Windows® PC over a dial-up, IP, or serial port connection. The remote control user interface duplicates the look and feel of the OCx, requiring no extra training. VT100 terminals and terminal emulators can also control the OCx through a standard printer cable and null modem adapter. All test set LEDs and keys are represented. Data Storage The SunSet OCx comes standard with a data storage PC card with 32 Mb of memory – enough space to hold hundreds of protocol traces or thousands of test results. All the traces and results appear as text files organized into separate folders. Simply load the files into a spreadsheet for analysis or into a word processor to create reports. Auto Configuration With a single button, the SunSet OCx will automatically configure itself to the circuit under test. The OCx will find the proper rate, mapping, framing, and test pattern based on the signal it receives. Graphic Display Navigating the SunSet OCx is straightforward with an icon-based main menu. The graph screen shows the test set configuration using familiar multiplexer icons, clearly showing the transmitted and measured signals. Status and Event Record All important defects, errors, and alarms are constantly logged with a date and time stamp. The event log is always one button away for quick reference. Save the record to the storage card or print it out. Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. Shipping Rate Calculator Enter your ZIP/POSTAL code: Select your COUNTRY: United States Canada United Kingdom Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antigua and Barbuda Argentina Armenia Aruba Australia Austria Azerbaijan Republic Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegovina Botswana Brazil British Virgin Islands Brunei Darussalam Bulgaria Burkina Faso Burma (Myanmar) Burundi Cambodia Cameroon Cape Verde Cayman Islands Central African Republic Chad Chile China Christmas Island Cocos (Keeling) Islands Colombia Comoros Congo, Democratic Republic of the Congo, Republic of the Cook Islands Costa Rica Cote d Ivoire (Ivory Coast) Croatia, Democratic Republic of the Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands (Islas Makvinas) Fiji Finland France French Guiana French Polynesia Gabon Republic Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guernsey Guinea Guinea-Bissau Guyana Haiti Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jersey Jordan Kazakhstan Kenya Kiribati Kuwait Kyrgyzstan Laos Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Local State/Province Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia, Federated States of Moldova Monaco Mongolia Montenegro Montserrat Morocco Mozambique Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue North Korea Norway Oman Other Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Poland Portugal Puerto Rico Qatar Romania Russian Federation Rwanda Saint Helena Saint Kitts Saint Lucia Saint Pierre and Miquelon Saint Vincent and the Grenadines Samoa San Marino Saudi Arabia Senegal Serbia, Republic Of Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Korea Spain Sri Lanka Sudan Suriname Svalbard Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Togo Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Vietnam Virgin Islands (U.S.) Wallis and Futuna Western Sahara Yemen Zambia Zimbabwe We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your auctions on autopilot with Kyozou eBay Auction Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	Sunrise Telecom
Model	Sunset OCx
