Talon Srx Speed Controller Breakout Board (for Encoders And Limit Switches)

US $11.95

  • Cupertino, California, United States
  • Mar 8th
Open on mobile:
QR code

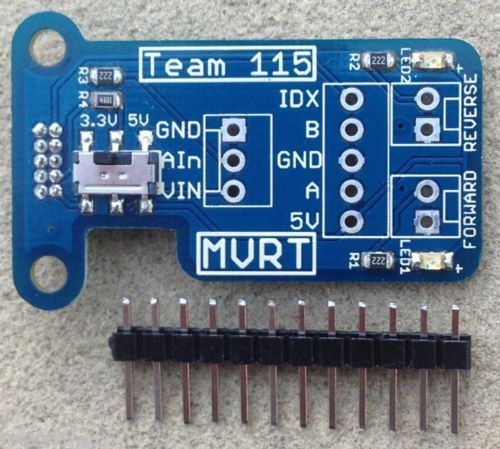

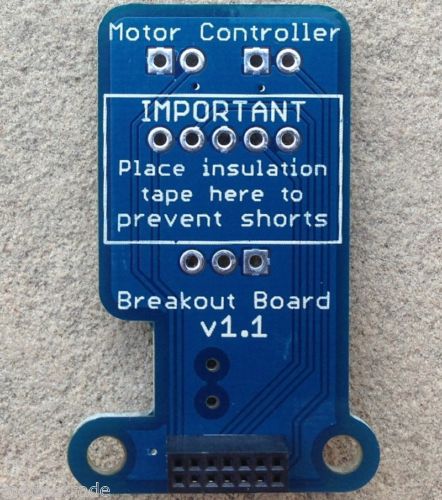

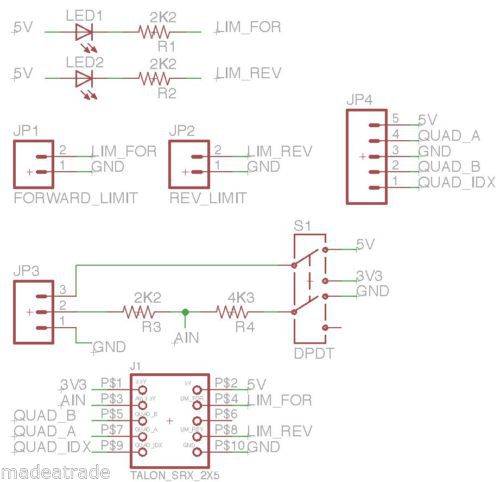

You are buying a Talon SRX breakout board. The Talon SRX is the latest smart speed controller of the Talon platform from Cross the Road Electronics and is widely used in FIRST Robotics competitions. The header pins provided by the Talon SRX are described in Section 1.4 of the Talon SRX User's Guide. Features: Piggyback board mounts directly onto the controller. No ribbon cable is needed! LED's to show limit switch activity Supports both 5V and 3.3V analog encoders. Just set the micro-switch on the board to the correct setting. Supports quadrature encoders Supports shrouded connectors for secure connections (not provided) Completely open-source The board comes with a 12-pin header as shown in the photo. The headers have standard 0.1" spacing. Open-source files: Eagle CAD schematic and board files can be found here Gerber files can be found here Bare PCB's can be ordered from OSHPark Bill-of-materials can be found here Included in this auction: Talon SRX speed controller breakout board as shown in the photos 12-pin header with 0.1" spacing Tip: Remember to use good soldering techniques when attaching the headers! Faulty solder joints can cause intermittent electrical problems. Designed, built and tested by MVRT #115 Bid with confidence - eBay member since 1999. 100% positive feedback! Click here to see my feedback for everything I've sold.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Country/Region of Manufacture United States
