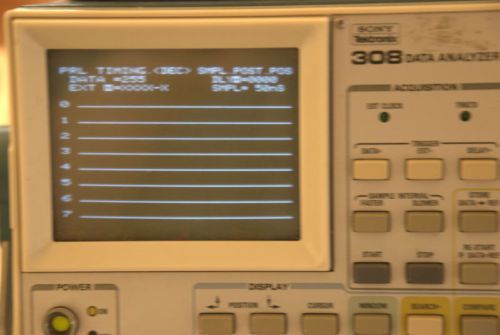

Tektronix 308 Data Analyzer

US $149.99

Petaluma, California, United States
Feb 13th

Open on mobile:
QR code

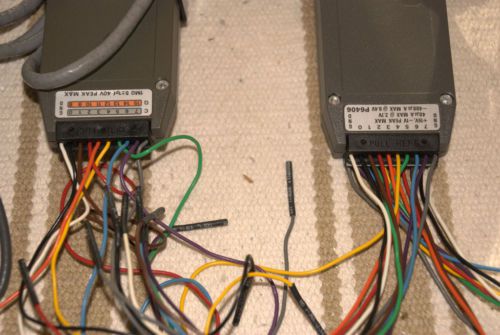

Model: Data Analyzer 308 - Sony-Tektronix, Tokyo Material Modern plastics (no Bakelite or Catalin) Shape Tablemodel, with any shape - general. Dimensions (WHD) 237 x 117 x 359 mm / 9.3 x 4.6 x 14.1 inch Notes The 308 is a 20 MHz, four-in-one portable Data Analyzer. It provides Parallel Timing, Parallel State, Serial State and Signature Analysis. Signal Inputs Parallel Timing & State Multliine probe-tip, 8 Data lines, 1 clock & 1 ground lead. Maximum Number of Inputs: 8 Input Impedance: 1 M?, 5 pF Logic Swing Minimum: 500mV +2% of threshold voltage p.p. centered on threshold voltage. Maximum: ±40V or less, to at least threshold voltage Maximum Non-destructive Input Voltage: -40V to +40V Width of Data input: Minimum 10ns, with 400mV overdrive from threshold voltage Threshold Voltage — Selectable TTL: +1.4v to +0.2 volts VAR: -12 volts to +12 volts Input mode — selectable Sample or Latch (to 5ns with 500mV overdrive voltage) Serial State Single channel probe Input Input Impedance: 10 M?, 13 pF Nondestructive Maximum Input Voltage: 500 V peak at probe tip 250 peak at bnc input connector Logic Swing Minimum: 500mV +2% of threshold voltage, peak-topeak centered about the threshold Maximum: ±30V peak Selectable Parity: ODD, EVEN or NONE Selectable Bits Per Character: 5, 8, T or 8 bits (includes parity if active). Selectable Input logic: Positive or Negative (at probe tip) Synchronizing Word (Synchronous mode only): Programmable to require two equal words. It not programmed defaults to ASCII word SYN. Hunt Word (Synchronous Mode Only): Programmable to require one word. If not programmed, defaults to "XXXXXXXX" (Not defined). One Hunt word is equal to 3 Hexadecimal "FF"s (Line idles). Stop Bits (ASYNC ONLY): Responds to one or more Signature Analyzer Single channel data input via probe: 10M?; 13pF Clock start, and stop Inputs provided by Data Acquisition probe. Clock Parallel Timing & State External Clock: Period Minimum 50 ns Pulse Width, Minimum: High-Logic Level: 24.5ns; Low-Logic Level: 24.5ns Data Setup Time, minimum: 25ns Data Hold Time, minimum: 0ns Internal Clock: 20 MHz Sample Interval, minimum: 50ns Data Pulse Width to ensure sampling Minimum: 1 sample interval +10ns Sample Intervals: 50ns to 200ns/sample in 1-2-5 sequence Qualifier Input Selectable Trigger or Clock Input Threshold: TTL Level +1.4V ± 0.2 volts Maximum Input Voltage: -5V to +10 V peak Memory 8 x 252 bits Data Acquisition Memory 8 x 252 bits Reference Memory Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb) Price in first year of sale 3,000.00 USD Mentioned in -- Original-Prospect http://www.radiomuseum.org/r/sonytek_data_analyzer_308.html

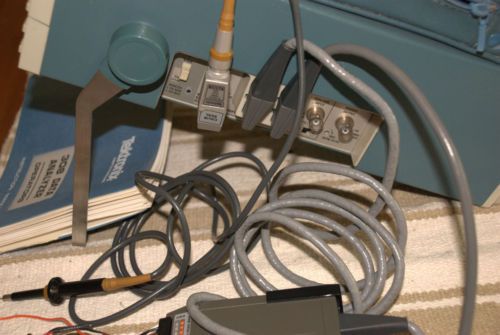

“Vintage Tektronix 308 Data Analyzer in great condition with all accessories and manual. Good for serial port and parallel data analysis of short sequences up to 20mhz bandwidth.”

Brand	Tektronix/Sony
Country/Region of Manufacture	Japan
Model	308 Data Analyzer
