Tektronix 500mhz 11302a Counter/timer/oscope W/11a71 Amps & Pass All Self Tests!

US $2,500.00

Gray, Maine, United States
Jan 29th

Open on mobile:
QR code

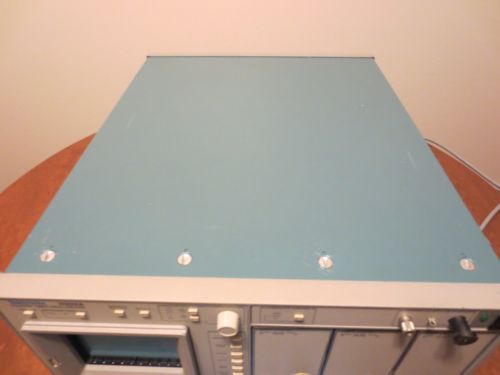

Description: These are used items which are in Very Good condition. See detailed pictures and judge for yourself. The scope and plugin amplifiers PASS all Self Tests, Extended Diagnostic Tests and Enhanced Accuracy Self-Calibration. Tektronix 11302A Counter / Timer / Oscilloscope: The 11302A is a truly unique analog oscilloscope. This scope incorporates many impressive features: Microchannel-plate CRT: provides 6-cm/ns visual writing rate to allow viewing very fast single-shot transients in normal ambient room light Built-in 750MHz Universal Counter / Timer Up to 8 Traces displayed simultaneously Fully programmable via IEEE-488 GPIB & RS-232C Supports a variety of TEK 11000 Series Plug-in amplifiers Built-in Time Bases providing sweep rates to 500ps/div Self-calibration (optically during boot-up) as well as Enhanced Accuracy self-calibration (post warm-up) 500MHz bandwidth with two traces (using 11A72 / 11A71 Plug-Ins). Actual typical bandwidth for this scope is often greater than 700MHz Auto Measurements and Cursors along with Direct Numeric Entry Reference Waveforms and Stored Front-Panel Setups Waveform Emphasis Z modulation TTL Input XY mode using Right Plugin as X input Delayed Trigger and Video Trigger Modes Left Plugin Aux buffered Signal Output (50mV/div) Various TTL Trigger, Sweep, Counter and Sync Input / Output External 10MHz timebase Input / Output Tektronix 11A71 500MHz BW Plugin: Single channel 11000 Series Plug-In amplifier providing 500MHz bandwidth on this 11302A scope (1GHz bandwidth on DSA602 Series scopes). The 11A71 plug-in used in the RIGHT Plug-In slot provides triggering support and X input in XY mode. Included: Tektronix 11302A Counter / Timer / Oscilloscope Three 11A71 500MHz BW Plugins Tektronix 11300A Series Specifications Sheet Tektronix 11300 Series Incoming Inspection Manual Power Cord NOT Included: Tektronix DSA602A Oscilloscope is NOT INCLUDED in this sale Rigol DG4062 Arb Waveform Generator is NOT INCLUDED in this sale 50 ohm coax cables are NOT INCLUDED in this sale Condition: Overall: This 11302A oscilloscope and plug-in amplifiers are in Very Good condition and all items PASS Self Diagnostics Test, Extended Diagnostic Tests and Enhanced Accuracy Self-Calibration runs. The pictures are of actual test demonstration and show reasonably accurate display and measurement of sample waveforms provided using non-certified reference instruments. This functional demonstration testing is NOT equivalent to a certified instrument calibration. Therefore, I do NOT have the facilities, procedures, test equipment and reference standards to determine if these instruments are completely within their respective Manufacturer published performance Specifications and Tolerances. Though the 11302A scope with included 11A71 plugins appears to measure and display waveforms with accuracy similar to my DSA602A used to measure the same waveforms. The items are USED and thus have some wear and normal signs of age and use. Please refer to the photos of the items to judge for yourself. Photos are of the actual Oscilloscope and Plug-In amplifiers being sold. Functional Testing: The 11302A scope AND all three included plug-ins PASS ALL self-diagnostics testing and enhanced accuracy testing. Furthermore, the output from the Rigol DG4062 waveform generator (NOT INCLUDED) is accurately measured by this Tektronix 11302A scope. These measurements are further validated by the Tektronix DSA602A reference Oscope (NOT INCLUDED). The 11302A was set to Loop until Fault detected in Extended Diagnostics Test Mode with the three 11A71 plug-in amplifiers installed. The test repeated for well over 30minutes and was manually stopped (by me) after 51 tests. All 51 tests PASSED all Extended Diagnostics and NO faults were detected during any of the 51 consecutive test loops. Several Self Tests were performed and all passed. Several Enhanced Accuracy runs of the 11302A were performed (Self-Calibration) which all PASSED and completed satisfactorily. The three included 11A71 plugin amplifiers were then installed into the DSA602A and were tested for 50 loops in Extended Diagnostics of the DSA602A (more rigorous testing than the 11302A) and all Extended Diagnostics PASSED for all 50 tests. Enhanced Accuracy was performed with the three included 11A71 plugins in the DSA602A and Enhanced Accuracy completed and PASSED with these plugins. The 11302A Calibrator output was set to 5Vpp 100kHz square wave which is 500mVpp into 50 ohms (0 to 500mV). The 11302A's Calibrator output was measured by the DSA602A (NOT INCLUDED). The DSA602A measurement statistics show the 11302A’s calibrator output is very accurate at Vpp = 501.5mV (500mV ideal), Vmean = 251.7mV (250mV ideal), Vrms = 354.1mV (353.9mV ideal), Freq = 100.0kHz (100.0kHz ideal). The Rigol DG4062 AWG (NOT INCLUDED) was set to 50ohm output Z, 500mVpp, 250mV outset, 100.0kHz square wave. The 11302A built-in 750MHz counter indicated measured Freq =100.0000069 kHz and Period = 9.999999306 usecs at 10^6 averages. The 11302A voltage measurements were within 10mV (within ~2% of ideal) of the DSA602A measurements of the same signal from the DG4062 AWG. Measurement Comparison: DSA602A: Vpp=498.5mV, Vmean=245.6mV, Vrms=348.4mV, Freq=100.0kHz 11302A “L1 Ch”: Vpp=494mV, Vmean=252mV, Vrms=342,mV, Freq=100.0kHz 11302A”C1 Ch”: Vpp=492mV, Vmean=255mV, Vrms=344,mV, Freq=100.0kHz With the Rigol DG4062 ch1 set as 10MHz 500mVpp sinewave and ch2 set as 1kHz 500mVpp squarewave. These DG4062 signals were connected to “L1” and”C1” channels of 11302A. The attached picture shows the summation waveform of “L1+C1” AC coupled. This composite waveform is a 10MHz 500mVpp sinewave which has a 500mV step-change ONCE every 10,000 cycles and decays back to pure sinewave due to AC coupling. This picture of the single “L1+C1” waveform illustrates the 11302A’s ability to display rare transients with significant brightness. As shown, the 4nsec step change is very visible and is actually brighter than the nominal signal despite the transient occurring only once every 10,000 cycles. Caution: It is strongly advised to operate the 11302A scope with all three scope plug-in slots occupied (or have blank plug-in cover installed) to ensure proper internal cooling air circulation. Having all three plug-ins installed enhances the internal heat removal and maintains internal component temperatures to safe operating conditions. Payment: I accept PayPal only. I require immediate payment when buyer uses Buy It Now. I reserve the right to cancel sale and issue refund based upon buyer having no established review history OR having negative review feedback. Shipping: Shipping is UPS standard ground shipping. I will only ship to the address registered in Paypal. Shipping within the lower 48 Contiguous US states only. No international shipping and no shipping outside the Contiguous 48 U.S. states. Standard UPS ground shipping is included FREE in the purchase price. Since this is an expensive item, it will be insured and signature for receipt will be required. Returns: Returns are NOT accepted, with the ONLY exceptions of the item was not the item described or the item was DOA. I test items on a "best effort basis" prior to shipping. Also, I photo the packing process to document steps taken to prevent any potential fraud.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Tektronix
Bandwidth	500MHz - 699 MHz
Model	11302A
Channels	Over 4
Type	Analog
Country/Region of Manufacture	United States
