Tektronix 80e08 Tdr Module W/accy Case

US $12,575.00

  • Southlake, Texas, United States
  • Jan 29th
Open on mobile:
QR code

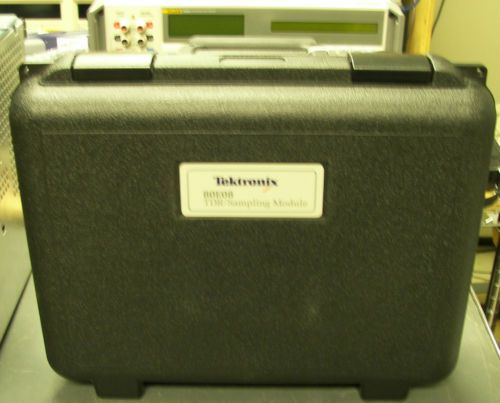

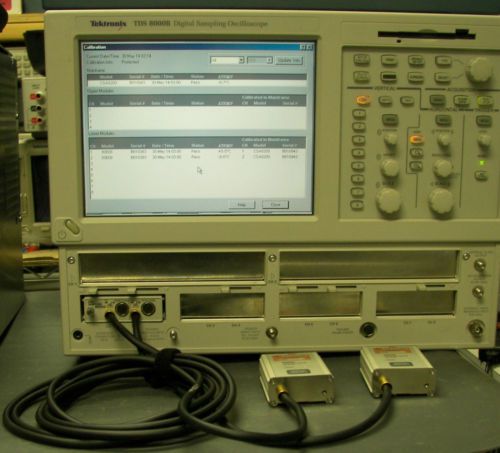

This auction is for a Tektronix 80E08 TDR Module w/accy case. Under Tek extended repair warranty till Oct 2014 80E08 TDR MODULE: The 80E08 is a dual-channel Time Domain Reflectometry (TDR) sampling module, providing up to 18 ps incident. Each channel of these modules is capable of generating a fast step for use in TDR mode and the acquisition portion of the sampling module monitors the incident step and any reflected energy. The polarity of each channel’s step can be selected independently. This allows for differential or common-mode TDR or S-parameters testing of two coupled lines, in addition to the independent testing of isolated lines. The independent step generation for each channel allows true differential measurements. Rise time                                   11.7 ps (calculated from 0.35 bw rise time product) Dynamic range                           1.0 Vp-p Offset range                               ±1.1 V Maximum operating voltage         ±1.1 V Maximum Nondestruct Voltage,   DC + ACp-p    2.0 V Vertical number of digitized bits   16 bits full scale Vertical sensitivity range              0 mV to 1.0 v full scale DC vertical voltage accuracy, single point, within ±2 °C of compensated temperature     ±[2 mV + 0.007 (Offset) + 0.02 (Vertical Value - Offset)] Step response aberrations, typical     ±1% or less over the zone 10 ns to 20 ps before step transition     +6%, –10% or less for the first 400 ps following step transition     +0%, –4% or less over the zone 400 ps to 3 ns following step transition     +1%, –2% or less over the zone 3 ns to 100 ns following step transition     ±1% after 100 ns following step transition RMS noise, maximum warranted, (typical).     30 GHz:
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand Tektronix
Country/Region of Manufacture United States
Model 80E08
