Tektronix Cable Antenna And Spectrum Analyzer Same As Anritsu S332e

US $2,900.00

Nuevo Leon, Monterrey, Mexico
Jan 29th

Open on mobile:
QR code

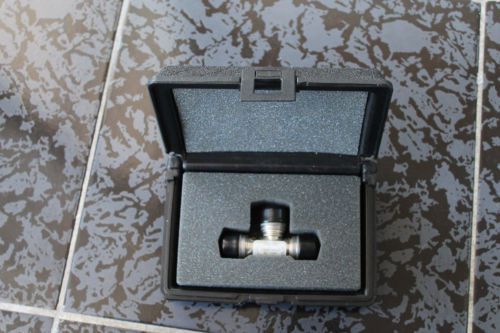

Welcome, Included in this listing: Nettek Y400 Mainframe YBA 250 module YBT250 module Printed manual for YBA250 Printed Manual for YBT250 Original Tektronix calibration kit YBAC3 DC to 5GHz. (some other sellers include other cal kits which are useless with this unit) Charger and AC cable. Only one good battery included. The sistem can fit two batteries. Keyboard and Stylus pen. This Y400 can be use as an optical power meter OTDR with optional PCMCIA card (NOT INCLUDED). If you require a test in specific just ask and I will upload the pictures. Item is in Mexico so Shipping to the US is 160 USD. To Europe 220 USD. Y400 Features & Benefits Modules Allow for Easy Future Expansion for New Functions Familiar Windows CE Interface with Touch Screen Design Develop and run customized procedures for consistent repeatable testing User-changeable Battery Packs with Optional External Charger for Uninterrupted Use Rugged, Light Weight, Easy to Use Anywhere Applications Base Station Transmitter Analysis Resolve Interference Problems Troubleshooting of T1 Circuits Base Station Antenna and Transmission Line Analysis Productivity Enhancement Software Portable, Ready for the Field Handheld Platform The Tektronix NetTek analyzer is a revolutionary portable field tool. When combined with various test modules, the NetTek offers proven measurement capability at a surprisingly low price, in a rugged, easy-to-use package, suitable for all field environments. Touch Screen The Windows CE interface is combined with a rugged touch screen. User controls and buttons only appear on the screen when they are needed, making measurements simpler to perform. The screen is operated by pressure, meaning that even a gloved finger can reliably operate the instrument in cold weather. Characteristics Y400 NetTek Platform Characteristics Module Support - Connect up to 4 test modules. Field interchangeable. Additional mini-test modules supported on PCMCIA. Display - 26 cm (10.4 in.), 640x480 pixel, transmissive color LCD. Touch screen display optimized for finger use - does not require special scribes or other tools to operate. Power - AC power: AC: 90 to 264 VAC, 47 to 63 Hz. DC power: 24 VDC ±1.2 VDC, 72 W maximum. One Li-Ion battery standard. Measurement operation time on battery: >2 hours per battery, >4 hours typical usage. Actual operation time dependent on type and number of applications running. Can hold two batteries (second battery optional) for total of >4 hours of continuous measurement; >8 hours typical usage. DC 12 V car adapter (optional). Recharge time (non-operating): 4.5 hours. Warranty/Calibration - 1 year warranty, regular platform calibration not required. Interface Ports - RS-232 serial: 9-pin, up to 115.2 kb/s serial. USB: 1.1 compatible Master & Slave Ports. Keyboard: PS/2 compatible, Mini-DIN connector. Microphone jack: 3.5 mm jack for external microphone. Headphone jack: 3.5 mm jack for external headphone. Built-in speaker. PCMCIA: 2 PCMCIA type II ports. Ethernet Port: Compatible 10Mb. File/Test Storage - Internal memory (standard): 32 MB available for storage and running Windows CE applications. USB Floppy disk (optional): MS-DOS compatible 3.5", 1.4 MB. PCMCIA Memory card (optional): 128 MB. Port supports standard PCMCIA memory cards. YBA250 Features & Benefits Improve Quality of Service Through Preventative Maintenance Activities On Antennas, Before They Become Service-affecting Quickly Analyze the Most Important Antenna and Transmission Line Problems Easy-to-Use Distance-to-Fault (DTF) Measurements for Locating Antenna and Transmission Line Trouble Advanced Calibration Technique Speeds and Simplifies Your Measurements by Allowing a Single Calibration for Use Across Entire Frequency Range Modular Instrument for Handheld NetTek Y400, Which Allows for Easy Future Expansion for New Functions Applications Return Loss/VSWR/Cable Loss Measurements for Antenna and Transmission Line Analysis Distance-to-Fault (DTF) Measurements for Locating Problems Maintenance and Installation Checks Insertion Gain/Insertion Loss Measurements Affordable, Portable, Ready for the Field Antenna and Transmission Line Analyzer for Wireless Communications Systems The Tektronix NetTek Analyzer is a revolutionary portable BTS field tool. The YBA250 test module tailors this system for fast identification of base station antenna and transmission line trouble, and easy location of those faults. The YBA250 test module offers this capability at a surprisingly low price, in a rugged, easy-to-use package, suitable for all field environments. Return Loss/VSWR The YBA250 antenna test module allows you to quickly analyze the system using either Return Loss or VSWR. Comparisons against initial conformance tests enable users to easily identify degradation in system performance. Viewing the frequency response vs. channel tables for various standards provides easier interpretation of how the problem may be affecting performance. Cable Loss Cable loss can be measured using a simple, single port technique. This makes use of the Cable Loss feature of the YBA250. This feature allows measuring cable loss while connected to only one end of the cable. This is useful when access to the other end of the cable is difficult. Distance-to-Fault (DTF) The YBA250 test module helps locate antenna and transmission line faults quickly and easily. Using the Distance-to-Fault (DTF) capability, users are able to identify problem areas and their location. The YBA250's interface provides access to multiple cable types and easier setup of DTF parameters for faster troubleshooting. CW Mode The YBAS250 can be used as a sine wave, or continuous wave (CW) source. This is useful for many different trouble shooting applications. Advanced Calibration By using Tektronix' expert factory calibration program, the YBA250 speeds up and simplifies the troubleshooting process. By enabling users to reference a single calibration across the entire frequency range, we have eliminated antiquated calibration procedures each time the frequency or display range is changed. Insertion Loss and Insertion Gain System and RF component performance can be easily analyzed with the two port insertion loss or insertion gain capability of the YBA250, when used in combination with a YBT250. This capability allows measurements of cable, connector, and attenuator loss. It also allows measurements of filters, duplexers, RF path gain, amplifiers, antenna isolation, and many other general purpose RF measurements. The Insertion Loss and/or Insertion Gain capability also allows measurements of Tower Mounted Amplifiers (TMAs, or receiver preamplifiers) while the TMA is still on the tower. Caution: Please check your country's laws regarding transmitters before using the NetTek to transmit a test signal. Characteristics YBA250 Antenna and Transmission Line Analyzer Module Operation Modes - Return Loss/VSWR/Cable Loss. Distance-to-Fault (DTF). Measurement Characteristics Return Loss/VSWR - Range: Return Loss - 0.00 to 54.00 dB. VSWR - 1.00 to 65.00. Resolution: Return Loss - 0.01 dB. VSWR - 0.01. Accuracy: Factory Calibration -

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Tektronix
MPN	Y400 Yba250 ybt250
Model	Y400
