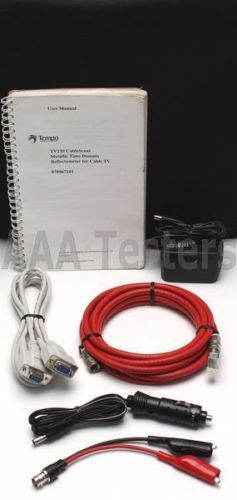

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Tektronix TV220 CableScout Cable Tester (BC# 20220) BNC To Dual Alligators Clip Cable Coax Cable DC Car Charger AC Adapter/Charger RS232 PC Interface Cable Hard Copy User Manual Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Tektronix GreenLee CableScout TV220 Coax CATV TDR Cable Tester The TV220 tests at a high bandwidth (it uses a 400 MHz acquisition system) Designed specifically for CATV and coaxial cable, the TV220 applies the newest technology to provide both ease of use and coaxial cable testing performance not found in any other TDR. Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange The TV220 delivers high performance, yet is so easy to use that little or no training is required. This leading edge TDR can test more system bandwidth and expose faults that have been previously invisible to TDR yet still an impairment to digital signals. The TV220 also introduces one-button testing. Testing at Higher Bandwidth Because the TV220 tests at a high bandwidth (it uses a 400 MHz acquisition system), it tests more of your system capacity. This enables users to pinpoint more faults that can cause micro-reflections which can degrade digital transmission BER. Only the TV220 has the bandwidth to enable you to find problems that may exist only at higher frequencies. High SNR The TV220 also has extremely high signal-to-noise ratio (SNR). Tempo proprietary circuit designs reduce the noise level so that "bumps" on the trace represent real faults, not just noise. Events that were previously difficult or impossible to find are clearly visible (because the noise is much lower) with the TV220. This means that you can clearly see faults further away. High Resolution High-resolution performance allows the TV220 to locate problem components in the customer drop. The TV220 uses a pulse width of only 1 ns which means the operator can clearly identify multiple events that are less than 2 feet apart. This enables the technician to tell which of two components on a cable is causing the problem, even when they are close together. This is particularly important in troubleshooting drops, because components such as splitters and ground blocks can be very close together. TestWizard Testing But the most innovative feature in the TV220 is TestWizard automated testing and event marking. Now, instead of meticulously setting up the TDR and then carefully interpreting the meaning of the displayed waveform, you push one button to get a high-resolution, low-noise trace, with the events clearly marked. This means substantial savings in training time and reduced time to get accurate, repeatable measurements. The Only TDR for Digital Services High bandwidth, high resolution, high SNR and ease of use make the TV220 the only logical choice for digital services. The TV220 tests more of the capacity of your cable, finds faults that are closer to the ends and finds faults that are closer together than any other TDR available. CableScout TV220 Helps Solve Tough Problems Any TDR can find a break or major problem, but what about those small nagging cable faults that keep your system from running smoothly CableScout TV220 can find those really tough-to-identify problems, and it is easy (see examples below). A high performance TDR does not have to be difficult to use. This one makes even the first time user look like a pro. The TV220 - Designed for You If your job is to maintain or find faults on coaxial cable, the Tempo CableScout TV220 is built for you. With the TV220, you'll spend less time operating the instrument and more time analyzing and repairing faults. You know the problems we're talking about - the annoying small ones that cause a 3 dB notch near the upper end of your bandwidth. Now you can accurately locate them - fast and easy. You get all this performance in the industry's most rugged TDR package. Come snow, rain, heat, humidity, dead of night or untrained user, Cable Scout TV220 keeps working, because you have to. Features: Excellent for Digital Services Provisioning Easy to Use - Anyone Can Use It TestWizardTM - One-button Testing Automatic Return Loss Measurements Automatic Multiple Event Marking High-resolution, Short Pulse Width (1 ns) Withstands a Two Meter Drop Large, Backlit, High-resolution Display (640 X 440), 7.2 in. Diagonal Internal Memory for 20 Waveforms and Notes Serial Printer Output for Stored or Displayed Waveforms Specifications: Test Signal Output 1/2 sine Amplitude (into 75 Ohm) 4 V into 75 Ohm Pulse Widths 1 ns, 5 ns, 25 ns Output Impedance 75 Ohm Acquisition System Bandwidth 400 MHz TestWizard Testing Automatically marks faults. Operator choice of three levels of event marking: - Mark largest event - Mark three largest events - Mark all events Return Loss Automatic at cursor location Resolution: ±1 dB Input Protection ±400 VDC + peak AC up to 440 Hz, 30-second duration Maximum Distance Range 12,000 ft. (3,658 m), depending on cable type and condition Gain 0 to 72 dB Distance Accuracy - (feet) 0 to 2,000 ft.: ±2 ft. ± uncertainty in Vp 2,001 to 6,000 ft.: ±3 ft. ± uncertainty in Vp 6,001 to 12,000 ft.: ±4 ft. ± uncertainty in Vp Distance Accuracy - (meters) 0 to 610 m: ±0.6 m ± uncertainty in Vp 610 to 1830 m: ±0.9 m ± uncertainty in Vp 1830 to 3658 m: ±1.2 m ± uncertainty in Vp Display Resolution: 640 x 440 (281,600 pixels) Size: 7.2 inch. Type: high contrast LCD. Backlight: operator switchable. Waveform Display Resolution 0.33% of selected range, 4.5 cm (0.15 ft.) minimum. Display Ranges Twelve display ranges from 6 ft. (1.8 m) to 12,000 ft. (3,658 m), plus single-button zoom window. Temperature Operating: -10°C to +40°C (+11°F to +104°F) Nonoperating: -20°C to +60°C (-4°F to +140°F) Humidity 10% to 95% (noncondensing) Field Usage Shock, water and dust resistant Durability Survives drop of 2 meters (6 ft.) to concrete in standard soft case. Drip proof, dust resistant EMI Emissions - -EN55011, class A -FCC Part 15, Subpart B, Class A -EN60555-2 AC Operation Voltage Ranges: 110 V, 220 V or 240 V with appropriate AC to DC adapter Line Frequency: 50 Hz to 60 Hz DC Operation Voltage Range: 9 to 16 VDC @ 1 A (charging and operating) Battery Operation Type: internal lead acid rechargeable battery Operating Time: typically 8 hours continuous operation (backlight off) Battery Savers (user selectable) - Shutoff: 5 to 30 minutes or disabled Backlight: shutoff 5 to 30 minutes, disabled or always on Dimensions: Height Width Depth Weight 24 cm (9.5 inches) 30 cm (11.5 inches) 9 cm (3.5 inches) 3 kg (6.4 lbs.) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your listings on autopilot with Kyozou eBay Listing Management Software
