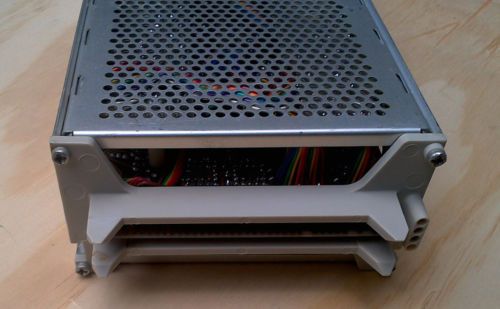

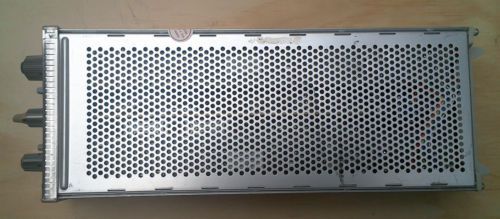

Tektronix Oscilloscope Dual Trace Amplifier Module Model 7a24

US $45.00

  • Bradenton, Florida, United States
  • Jan 29th
Open on mobile:
QR code
Tektronix Oscilloscope Dual Trace Amplifier Module Model 7A24 The 7A24 is a very fast dual trace amplifier plug-in with up to 400 MHz bandwith depending on mainframe. The input impedance allows direct termination in 50 ohms system. Disadvantage when measuring high impedance sources, not designed for general purpose electronic applications. Bandwidth 400 MHz (depending on mainframe) 5 mV/DIV to 1 V/DIV in a 1,2,5 sequence Deflection Gain Accuracy within 2% at a Gain of 5 mV/DIV Input Impedance 50 ohm +/-2% Input VWSR equal to, or less than1.25 at 5 mV and 10 mV. Equal to, or less than 1.15 at 20mV to 1V, from DC to 350 MHz. maximal input voltage 5 volt (0.5 watts) CMRR at leat 10:1 dc to 50 MHz Delay time difference between channels 200 ps or less The unit is used and may need calibration before use, please contact sales@testrack.com if you are interested in those services.
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Excellent Condition & Fully Functional. Tested. Normal Cosmetic Wear, Pulled from clean lab environment.”
