Tektronix Tds 2012c Two Channel Digital Storage Oscilloscope 100mhz/ 2gs/s

US $700.00

  • Los Angeles, California, United States
  • Jan 29th

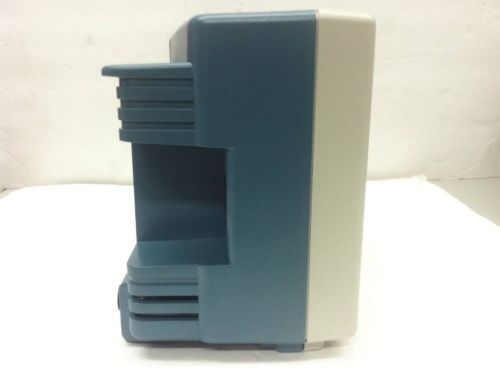

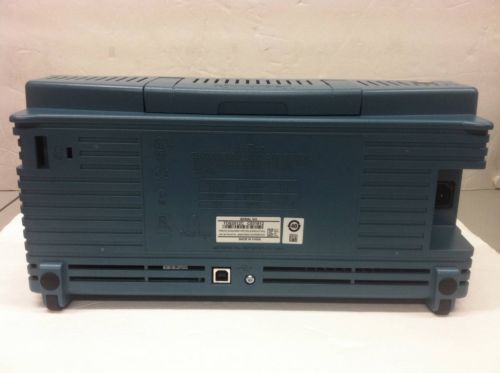

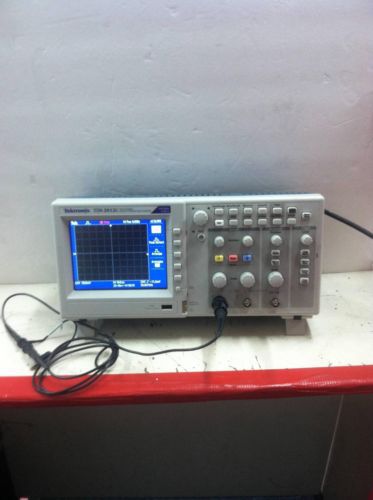

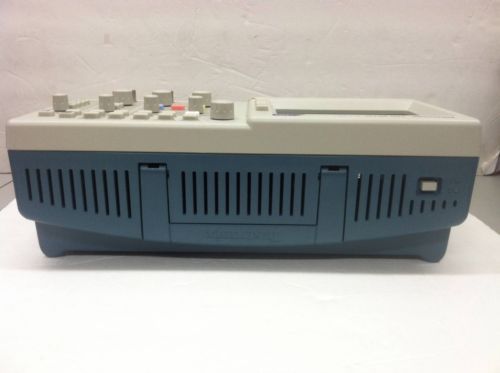

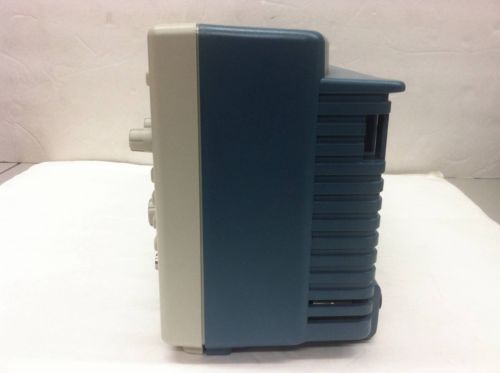

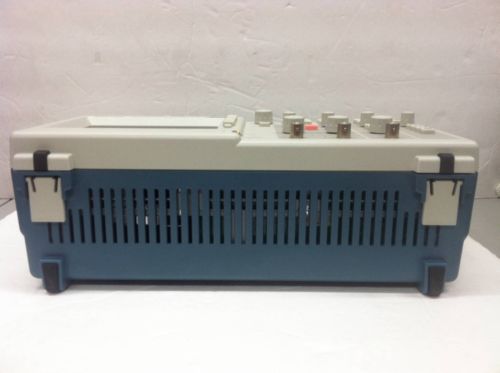

Tektronix TDS 2012C Two Channel Digital Storage Oscilloscope 100Mhz/ 2GS/s Tektronix TDS 2012C Two Channel Digital Storage Oscilloscope 100Mhz/ 2GS/s   Offered for sale is a Tektronix TDS2012C Oscilloscope. This item is in excellent pre-owned condition without any deep scratches, dents, scuffs, or cracks. The device has been cleaned and fully tested, guaranteed to work. Item does not include original box or accessories, but will come included with a basic probe. Please look at photos for more details.    Item is being sold "AS IS" with no returns accepted due to buyer's remorse. Please read full listing description before purchasing.   Overview   The TDS2000C Digital Storage Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features - including USB connectivity, 16 automated measurements, limit testing, data logging, and context-sensitive help - the TDS2000C Series oscilloscopes help you get more done in less time. Key performance specifications 200 MHz, 100 MHz, 70 MHz, 50 MHz bandwidth models 2- and 4-channel models Up to 2 GS/s sample rate on all channels 2.5k point record length on all channels Advanced triggers including pulse width trigger and line-selectable video trigger Key features 16 automated measurements and FFT analysis for simplified waveform analysis Built-in waveform limit testing Automated, extended data logging feature Autoset and signal auto-ranging Built-in context-sensitive help Probe check wizard 11-language user interface 144 mm (5.7 inch) active TFT color display Small footprint and lightweight - only 124 mm (4.9 inches) deep and 2 kg (4.4 lb) USB 2.0 host port on the front panel for quick and easy data storage USB 2.0 device port on the rear panel for easy connection to a PC or for direct printing to a PictBridge® -compatible printer Digital precision for accurate measurements With up to 200 MHz bandwidth and 2 GS/s maximum sample rate, no other digital storage oscilloscope offers as much bandwidth and sample rate for the price. Tektronix proprietary sampling technology provides real-time sampling with a minimum of 10X oversampling on all channels, all the time to accurately capture your signals. Sampling performance is not reduced when using multiple channels. Critical tools for troubleshooting your device Advanced triggers - rising/falling edge, pulse width, and video - help you quickly isolate your signals of interest. Once you've captured a signal, advanced math capabilities and automated measurements can speed your analysis. Quickly perform an FFT or add, subtract, or multiply waveforms. Sixteen automated measurements quickly and reliably calculate important signal characteristics such as frequency or rise time, while the built-in Limit Test function enables you to easily identify problems in your signal. Designed to make your work easy The TDS2000C Series oscilloscopes are designed with the ease of use and familiar operation you have come to expect from Tektronix. Intuitive operation The intuitive user interface with dedicated per-channel vertical controls, auto-setup, and auto-ranging makes these instruments easy to use, reducing learning time and increasing efficiency. Help when you need it The built-in Help menu provides you with important information on your oscilloscope's features and functions. Help is provided in the same languages as the user interface. Probe check wizard Check out your probe compensation before making measurements with just one button that starts a fast, easy procedure. Limit test The oscilloscope can automatically monitor source signals and output Pass or Fail results by judging whether the input waveform is within predefined boundaries. Specific actions can be triggered on violation including stopping waveform acquisition, stopping Limit Test functions, saving the failed waveform data or screen image to a USB memory device, or any combination of the above. This is an ideal solution for manufacturing or service applications where you need to make decisions quickly. Flexible data transfer The USB host port on the front panel enables you to save your instrument settings, screenshots, and waveform data in a flash. The built-in Data Logging feature means you can set up your oscilloscope to save user-specified triggered waveforms to a USB memory device for up to 24 hours. You can also select the "infinite" option for continuous waveform monitoring. With this mode you can save your triggered waveforms to an external USB memory device without a duration limitation until the memory device is full. The oscilloscope will then guide you to insert another USB memory device to continue saving waveforms. Easy PC connectivity Easily capture, save, and analyze measurement results by connecting to your PC with the rear-panel USB device port and the included copy of OpenChoice PC Communications Software. Simply pull screen images and waveform data into the stand-alone desktop application or directly into Microsoft Word and Excel. Alternatively, if you prefer not to use your PC, you can simply print your image directly to any PictBridge-compatible printer.   Item Specifications   Overview   TDS2001C TDS2002C TDS2004C TDS2012C TDS2014C TDS2022C TDS2024C Display (QVGA LCD) TFT on all models Bandwidth 50 MHz 70 MHz 70 MHz 100 MHz 100 MHz 200 MHz 200 MHz Channels 2  2  4  2  4  2  4  External trigger input Included on all models Sample rate on each channel 500 MS/s 1.0 GS/s 1.0 GS/s 2.0 GS//s 2.0 GS/s 2.0 GS/s 2.0 GS/s Vertical system   Record length 2.5k points at all time bases on all models   Vertical resolution  8 bits   Vertical sensitivity  2 mV to 5 V/div on all models with calibrated fine adjustment   DC vertical accuracy ±3% on all models   Vertical zoom  Vertically expand or compress a live or stopped waveform   Maximum input voltage 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-pAC at 3 MHz   Position range     2 mV to 200 mV/div +2 V; >200 mV to 5 V/div +50 V   Bandwidth limit  20 MHz for all models   Input impedance  1 MΩ in parallel with 20 pF   Input coupling  AC, DC, GND on all models   Horizontal system   Time base accuracy  50 ppm   Horizontal zoom  Horizontally expand or compress a live or stopped waveform   Trigger system   Trigger modes Auto, Normal, Single Sequence   Trigger types   Edge (rising/falling)  Conventional level-driven trigger. Positive or negative slope on any channel. Coupling selections: AC, DC, Noise Reject, HF Reject, LF Reject   Video  Trigger on all lines or individual lines, odd/even or all fields from composite video, or broadcast standards (NTSC, PAL, SECAM)   Pulse width (or glitch)  Trigger on a pulse width less than, greater than, equal to, or not equal to, a selectable time limit ranging from 33 ns to 10 s   Trigger source   2-channel models CH1, CH2, Ext, Ext/5, AC Line   4-channel models  CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line   Trigger view  Displays the trigger signal while the Trigger View button is depressed   Trigger signal frequency readout   Provides a frequency readout of the trigger source   Acquisition system   Acquisition modes   Peak detect  High-frequency and random glitch capture. Captures glitches as narrow as 12 ns (typical) at all time base settings from 5 µs/div to 50 s/div   Sample  Sample data only   Average  Waveform averaged, selectable: 4, 16, 64, 128    Single sequence  Use the Single Sequence button to capture a single triggered acquisition sequence   Roll mode   At acquisition time base settings of >100 ms/div  Should you have any further questions please feel free to send an e-mail. Thank you for your interest!! We Accept PayPal for USA residents with confirm address only. Local pick-up is also accepted. Immediate payment is required for all transactions. Payment includes shipping cost, insurance and sales tax where applicable. California residents will be subject to a 9% Sales tax including shipping & handling.  Packages are shipped via USPS Priority Mail Insured, First Class Mail with delivery confirmation, and high-ticket items will be sent via FedEx ground with full insurance, and Signature confirmation required upon delivery. (FEDEX DOES NOT DELIVER TO P.O. BOXES) All items are carefully packaged and shipped within 2 business days after receiving cleared payment. We offer international shipping only through eBay global shipping program when item is eligible.   ALL ITEMS ARE SOLD "AS IS" IN PRE-OWNED CONDITION, UNLESS OTHERWISE SPECIFIED-RETURNS ARE NOT ACCEPTED DUE TO BUYERS REMORSE. We guarantee all items to be exactly as advertised. Every item is described with utmost care and attention to detail, including any damage, or flaws. We take actual photos of the items offered for sale. Musical Instruments and Electronics are carefully inspected and fully tested by our experienced staff, prior to buying and selling. All serial numbers are recorded in our computer database to prevent possible fraud. Most items sold, especially jewelry and watches are pre-owned and might show signs of wear. We encourage you, to read the entire listing description carefully, and zoom-in at pictures for details before making a purchase.  La Cienega Jewelry & Loan has been in business since 1987. We specialize in buying, selling, and pawning, Luxury watches, Diamonds, Estate, Designer Brand Jewelry, Luxury handbags, Musical Instruments, and more... Our goal is to provide exceptional service and customer satisfaction that will make you come back for more. Honesty, Integrity and experience define our business practice.   Should you have any questions or concerns about any particular item listed, please do not hesitate to call or e-mail. All questions will be answered within 24 hours, via eBay's message center. Wish to call us directly, please call during business  hours: Monday - Friday 10am- 7:00pm, Saturday: 10am-5:00pm (PST) Tel: 310-659-2274
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes ITEM IS IN EXCELLENT PRE-OWNED CONDITION. ITEM DOES NOT CONTAIN ANY DEEP SCRATCHES, DENTS, DINGS, OR CRACKS. PLEASE ZOOM-IN AT PHOTOS.
