Tektronix Tds784d 1 Ghz, 4 Gsa/s, 4-ch Dpo-color-oscilloscope

US $1,590.00

Waltenschwil, Switzerland
Jan 29th

Open on mobile:
QR code

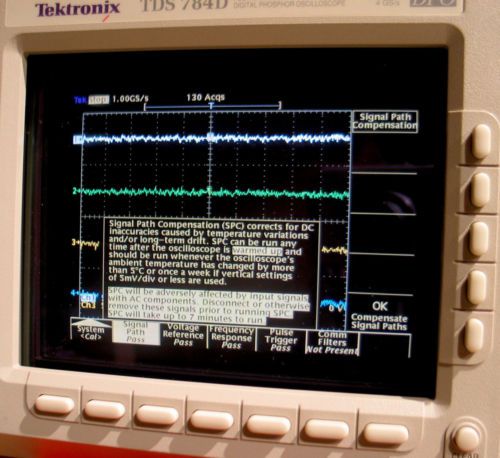

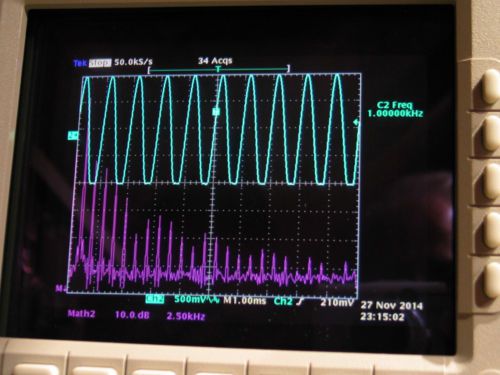

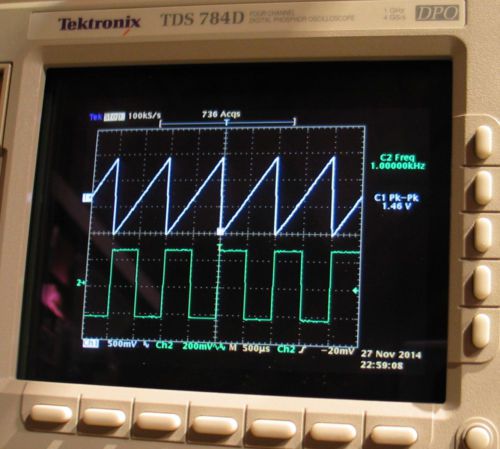

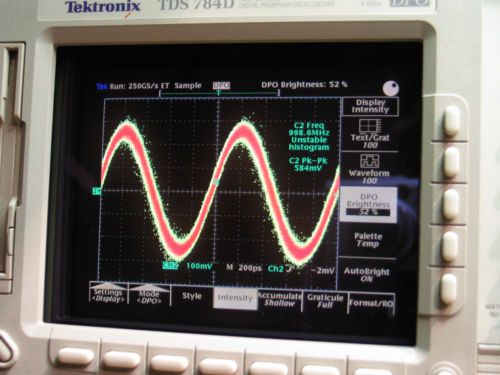

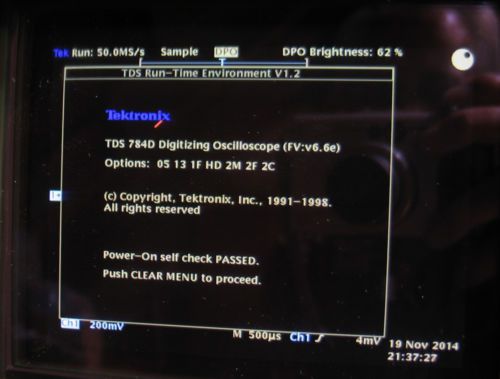

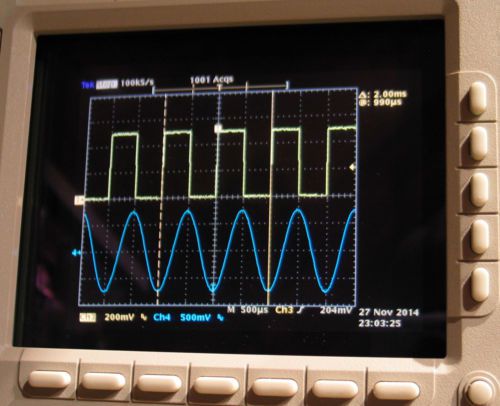

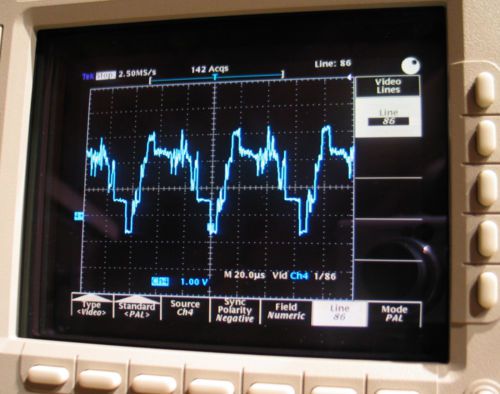

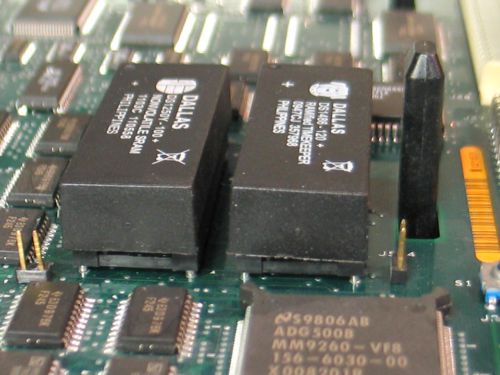

Tektronix TDS784D 1 GHz, 4 GSa/s, 4-Ch DPO-Color-Oscilloscope Options: 05 13 1F HD 2M 2F 2C DPO - Digital Phosphor Oscilloscope with a GREAT BANDWITH OF 1 GHz !! Manufactured: 1998 *** The unit is in good working and physical condition with only little signs of wear. *** The oscilloscope passes all of the extended self tests from the utility menu and calibration routines including signal path compensation SPC ( numerous times to be sure ), and is working perfectly on all 4 channels. - The CRT-display is in high quality (brightness and focus). - I have replaced the two internal battery backuped NVRAM with new DALLAS DS1250Y and DS1486. Programmed with the actual calibration datas. And these NVRAM now are placed in new mounted sockets for an easy later replacement (see last picture). - Important: The ON/OFF-button must be a little bit hard pressed for his functionality, but is in good condition. >> This unit has NOT been calibrated recently . But please refer to the pictures. I tested the really well accuracies of frequencies and signal-levels up to 1 GHz. I am able to test the basic functions but not all the very numerous great functions. So I am selling it in "AS-IS" condition. Included Options: 05 - Video Trigger (was also checked as you see in a picture) 13 - RS232/Centronics Hardcopy Interface Port 1F - Floppy Disk Drive HD - Hard Drive 2M - Add 2M/channel memory length (8M max), includes internal hard disk drive 2F - Extended waveform math: FFT(Fast Fourier Transform), integration, differetiation 2C - Communication Signal Analyzer, incl. comm trig. and communication mask testing With VGA-Output, RS232, Centronics and GPIB-Bus. Comes with US Power Cord or Europe Power Cord. But comes without any probes and accessories. I accept 14 days return with money back. Buyer has to pays return shipping. All pictures are of the actual oscilloscope you will receive. If you have any questions or want more pictures of the item, please feel free to contact me. Thank you for your visiting. NOTE ON SHIPPING: Shipping is quoted for Europe. All others international bidders pay actual, just email me for a quote. NOTE FOR INTERNATIONAL CUSTOMERS: Please note that import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs officials to determine what these additional costs will be prior to bidding or buying.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Tektronix
Sample Rate	4GSa/s - 4.9GSa/s
Model	TDS784D
Country/Region of Manufacture	United States
Type	Digital
Make	Tektronix
Bandwidth	1GHz - 1.9GHz
Number of Channels	4
Channels	4
