Tektronix Tla704 Logic Analyzer Mainframe Option 1s "guaranteed"

US $575.00

Warrenville, Illinois, United States
Jan 29th

Open on mobile:
QR code

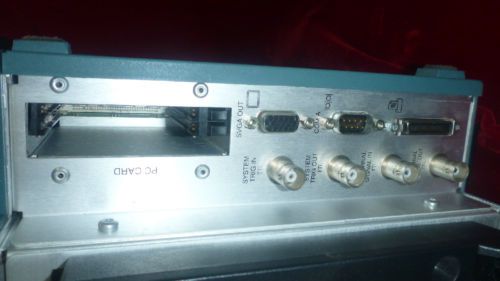

Tektronix TLA704 - Logic Analyzer Mainframe Portable Description The Tektronix TLA704 is a Portable Color Logic Analyzer Mainframe that has MagniVuTM Acquisition Technology that will provide 2GHz Timing Resolution on all of the channels. It includes the Pentium processor, the hard disk drive, built-in 3.5” FDD, PC type interfaces; PCM-CIA (Type-II & Type-III), a SVGA monitor, a parallel printer and RS-232. It will hold 4 single-wide or 2 double-wide modules. Key Features MagniVuTM Acquisition Technology Provides 500 ps Timing Resolution on All Channels All the Time Through a Single Probe Up to 200 MHz State Acquisition with 400 MHz Data Rate Supports Advanced Processors and Buses Simultaneous State and High Speed Timing Analysis Through the Same Probes Pinpoints Elusive Integration Faults Broad Selection of Processor and Bus Support Up to 16 Mbits Per Channel with Hardware-accelerated Waveform Display and Search Functions to Rapidly Analyze Large Amounts of Data to Find Elusive Problems Far Back in Time 64 Channel Pattern Generator with up to 268 MHz and up to 2 MB Memory Depth Provides Digital Stimulus for Functional Verification, Debugging and Stress Testing Four Channel Digitizing Oscilloscope with up to 1 GHz, 5 GS/s Provides High-fidelity Signal Quality Measurements of Digital Signals Expansion Mainframe Supports up to 16 Modules with up to 2,176 LA channels, 1,024 Pattern Generator Channels or 64 Digitizing Oscilloscope channels for Large, Multiple Processor and Bus Applications Universal HLL Source Code Support for Correlating High-level Language Source with Real-time Trace Performance Analysis Support for Optimizing Target System Performance Remote Control Using Microsoft COM/DCOM Technology Supports Advanced Data Analysis Microsoft® Windows®-based PC Platform Provides Familiar User Interface With Network Connectivity All Modules, Probes, Software and Accessories Fully Interchangeable Between Portable and Benchtop Mainframes with Flexibility for Future Upgrades To Protect Your Investment If you have any questions on this unit please call Premium Test Equipment. 855-356-7033 Calibration Available at a additional cost. we cannot accept returned items that have been opened or disassembled, nor have missing or incomplete unique serialized seal sticker.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

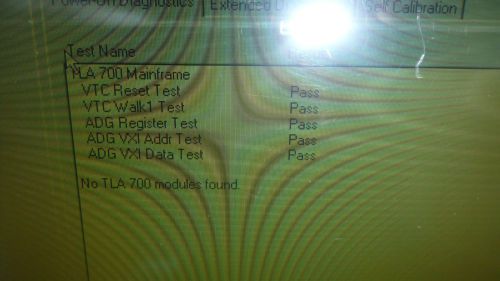

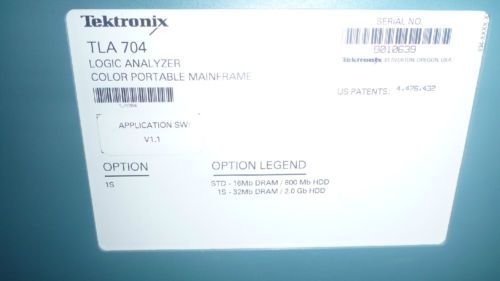

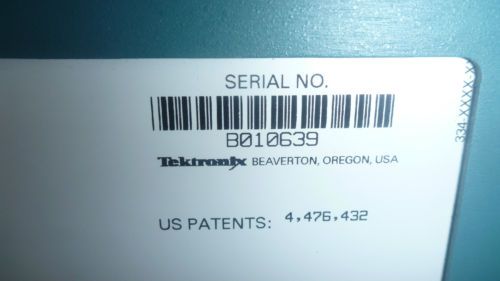

Seller Notes	“Tektronix TLA704-1S is in excellent condition and Guaranteed working. Very clean unit.Passes all self test. Serial Number B010639.”
