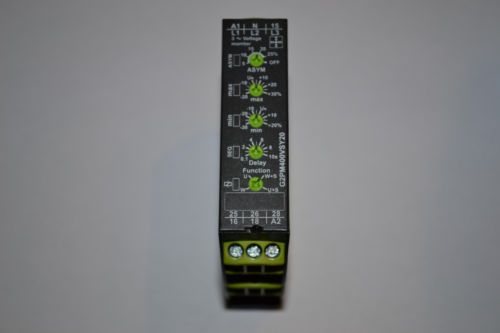

Tele - G2PM400VSY20 - Relay, Voltage monitoring, 3-Phase, with transformator, US $75.00 – Picture 0

Tele - G2PM400VSY20 - Relay, Voltage monitoring, 3-Phase, with transformator, US $75.00 – Picture 1

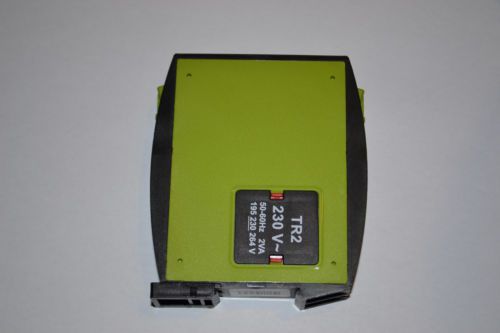

Tele - G2PM400VSY20 - Relay, Voltage monitoring, 3-Phase, with transformator, US $75.00 – Picture 2

Tele - G2PM400VSY20 - Relay, Voltage monitoring, 3-Phase, with transformator, US $75.00 – Picture 3

Tele - G2pm400vsy20 - Relay, Voltage Monitoring, 3-phase, With Transformator

US $75.00

Veszprem megye, Hungary
Mar 10th

Open on mobile:
QR code

Price for one 3 phase voltage monitor, included transistor. It's new, never used! Product basic information Monitoring relays - GAMMA series Multifunction Monitoring of phase sequence and phase failure Monitoring of asymmetry selectable Connection of neutral wire optional Detection of loss of neutral wire Supply voltage selectable via power modules / switching power supply 2 change-over contacts Width 22.5mm Industrial design Technical data1. Functions Voltage monitoring in 3-phase mains with adjustable thresholds, adjustable tripping delay, monitoring of phase sequence and phase failure, monitoring of asymmetry with adjustable threshold and the following functions which are selectable by means of rotary switch: UNDER Undervoltage monitoring UNDER+SEQ Undervoltage monitoring and monitoring of phase sequence WIN Monitoring of window between Min and Max WIN+SEQ Monitoring the window between Min and Max and monitoring of phase sequence 2. Time ranges Adjustment range Start-up suppression time: - Tripping delay: 0.1s 10s 3. Indicators Red LED ON/OFF: indication of failure of the corresponding threshold Red LED flashes: indication of tripping delay of the corresponding threshold Yellow LED ON/OFF: indication of relay output 4. Mechanical design Self-extinguishing plastic housing, IP rating IP40 Mounted on DIN-Rail TS 35 according to EN 60715 Mounting position: any Shockproof terminal connection according to VBG 4 (PZ1 required), IP rating IP20 Tightening torque: max. 1Nm Terminal capacity: 1 x 0.5 to 2.5mm? with/without multicore cable end 1 x 4mm? without multicore cable end 2 x 0.5 to 1.5mm? with/without multicore cable end 2 x 2.5mm? flexible without multicore cable end 5. Input circuit Supply voltage: 12 to 400V AC terminals A1-A2 (galvanically separated) 24V DC selectable via power modules TR2 or switching power supply SNT2 Tolerance: according to specification of power module / switching power supply Rated frequency: according to specification of power module / switching power supply Rated consumption: 2VA (1W) Duration of operation: 100% Reset time: 500ms Wave form for AC: Sinus Residual ripple for DC: 10% Drop-out voltage: >30% of the supply voltage Overvoltage category: III (in accordance with IEC 60664-1) Rated surge voltage: 4kV 6. Output circuit 2 potential free change-over contacts Rated voltage: 250V AC Switching capacity: 750VA (3A / 250V AC) If the distance between the devices is less than 5mm! Switching capacity: 1250VA (5A / 250V AC) If the distance between the devices is greater than 5mm! Fusing: 5A fast acting Mechanical life: 20 x 10 6 operations Electrical life: 2 x 10 5 operations at 1000VA resistive load Switching frequency: max. 60/min at 100VA resistive load max. 6/min at 1000VA resistive load (in accordance with IEC 60947-5-1) Overvoltage category: III (in accordance with IEC 60664-1) Rated surge voltage: 4kV 7. Measuring circuit Fusing: max. 20A (in accordance with UL 508) Measured variable: AC Sinus (48 to 63Hz) Input: 3(N)~ 115/66V terminals (N)-L1-L2-L3 (G2PM115VSY20) 3(N)~ 230/132V terminals (N)-L1-L2-L3 (G2PM230VSY20) 3(N)~ 400/230V terminals (N)-L1-L2-L3 (G2PM400VSY20) Overload capacity: 3(N)~ 115/66V 3(N)~173/100V (G2PM115VSY20) 3(N)~ 230/132V 3(N)~345/199V (G2PM230VSY20) 3(N)~ 400/230V 3(N)~600/346V (G2PM400VSY20) Input resistance: 3(N)~ 115/66V 220k? (G2PM115VSY20) 3(N)~ 230/132V 470k? (G2PM230VSY20) 3(N)~ 400/230V 1M? (G2PM400VSY20) Switching threshold Max: -20% to +30% of U N Min: -30% to +20% of U N Asymmetry: 5% to 25% Overvoltage category: III (in accordance with IEC 60664-1) Rated surge voltage: 4kV 8. Accuracy Base accuracy:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Tele
MPN	G2PM400VSY20
Model	Monitoring Relay
Country/Region of Manufacture	Austria
