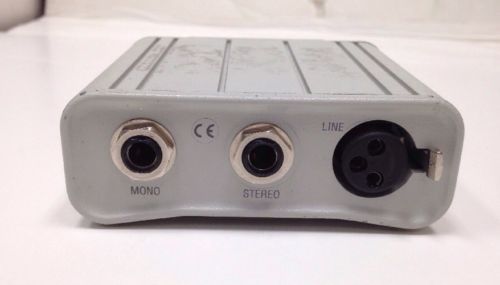

Telex RTS IFB 4030 Portable 2 Channel Listening Station, US $84.99 – Picture 0

Telex RTS IFB 4030 Portable 2 Channel Listening Station, US $84.99 – Picture 1

Telex Rts Ifb 4030 Portable 2 Channel Listening Station

US $84.99

New York, New York, United States
Mar 3rd

Open on mobile:
QR code

Telex RTS IFB 4030 Portable 2 Channel Listening Station Quantity of 11 Stations Description The Model 4030 is a portable user station for use with RTS/Telex two-wire or 4010 IFB intercom systems. The Model 4030 is a listen-only IFB belt pack that can be used to listen to one or two intercom or program channels. Features : • Powered externally, via the intercom system power supply on channel one. • Power ON indicator • Headset/Earset jack set for a wide range of operations. • Monaural phone jack for intercom channel one. Specifications : Power Requirements 32 VDC nominal (standard RTS line), 150mA maximum Environmental Requirements Storage: -20°C to 80°C, 0% - 95% humidity, non-condensing Operating: 0°C to 50°C, 0% - 95% humidity, non-condensing Dimensions: Physical: 3.65” (92.77mm) L x 3.75” (95.3mm) W x 1.5” (38mm) D Weight: 10.8 oz. (303g) Interface Requirements Earset/Headphone compatibility Accepts 50 to 600 ohm earsets or headphones Audio input requirements Input Level: 2V p-p (0dBu) nominal Input Impedance: 200 ohms ±5% Noise Contribution Less than -60dB nominal Headphone Amplifier Voltage Gain 27±3dB from intercom channel to earset Maximum Output 65 mW into 150 ohms Frequency Response 250Hz to 8kHz +1/-4dB Connector Pin Configuration Headset Connectors Type: 1/4” Monaural Plug Tip: Headset Audio High Sleeve: Headset Audio Low Type: 1/4” Stereo Plug Tip: Headset Channel 1 Audio High Ring: Headset Channel 2 Audio High Sleeve: Headset Audio Low Audio/Power Connector Type: XLR-3F Pin 1 Common Pin 2 Channel 1 audio and power input Pin 3 Channel 2 audio

“Works.”

Brand

Telex
