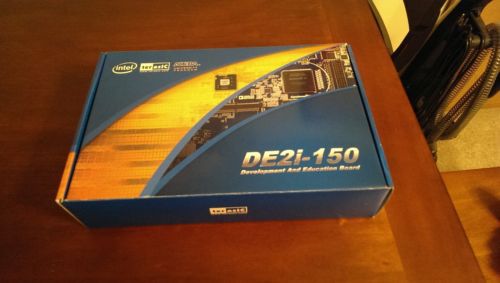

Terasic Altera Fpga De2i-150 Cyclone Iv And Intel Atom Development Board

US $400.00

Farmington, Michigan, United States
Jan 29th

Open on mobile:
QR code

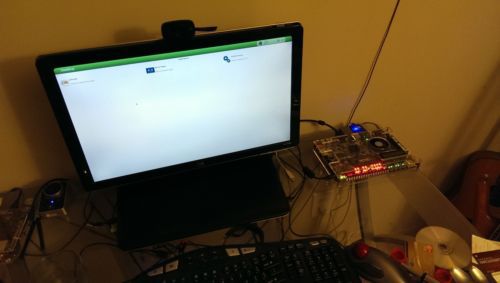

For sale is a DE2i-150 FPGA/Embedded processing development board from TerasicTechnologies. It is an excellent platform for developing FPGA hardware and Software for embedded applications with the Cyclone IV FPGA (150k Gates) and the Intel Atom processor. I purchased this to do some development work but i have switch to a different board for the work. It is tested and working and still has the installed linux distribution that was installed. The features found on this board give you a wide range of development opportunities at a unbeatable price. Here's a chance to save even more on this device. Here are the specifications and features as found on the Terasic website: A groundbreaking embedded platform that combines an Intel embedded N2600 processor with the flexibility of an Altera Cyclone IV GX FPGA, DE2i-150 is a full-featured computer system that fuses together the world of high performance processing and unbelievably high configurability. The Altera Cyclone IV GX FPGA on the DE2i-150 board is able speed up the responsiveness of the system while still keeping your solution cost and power effective.DE2i-150 is equipped with around 150K logic elements with ultimate flexibility in terms of reconfiguration of actual hardware circuity and intellectual property as well as on-board multimedia peripherals, extendibility options for a true system-ready solution for any task.The Intel Atom processor and the FPGA device are linked together via two high-speed PCIe lanes such that high speed communication between them is guaranteed. DE2i-150 offers a powerful hardware-software co-development environment with amazing and unlimited potential. Microprocessor CPU : Intel® Atom™ Dual Core Processor N2600( 1M Cache, 1.6GHz ) Intel® Hyper-Threading Technology( 4 exection threads ) Intel SpeedStep® Technology Instruction Set : 64-bit Instruction Set Extensions : SSE2, SSE3, SSSE3 Integrated Graphics Graphics Base Frequency : 400MHz Chipset : Intel® NM10 Express Chipset DMI x2 to CPU Intel® High Definition Audio Serial ATA (SATA) 3 Gb/s Universal Serial Bus(USB) Hi-Speed USB 2.0 PCI Express Gen 1 Memory DDR3 SO-DIMM SDRAM Display VGA HDMI 1.3a Intel® Centrino® Wireless-N 135 802.11b/g/n Bluetooth 4.0 Wi-Fi Direct Audio Codec Realtek ALC272VA3-GR BIOS DIP package Bios Flash : GD25Q16 Programming Interface for Bios : Dedi-Prog Interface Debug Interface XDP header Clock System CK505 : 9VRS4339B 32768 Hz RTC crystal 27MHz VGA clock source Ethernet Intel® 82583V GbE Controller 10/100/1000 Mb/s RJ45 3 status indicting LEDs Others Power header for hard-disk Current limit for USB Buzzer Mini PCIE header (Default for Intel® Centrino® Wireless-N 135 WiFi module) mSATA header RTC battery : CR2032

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

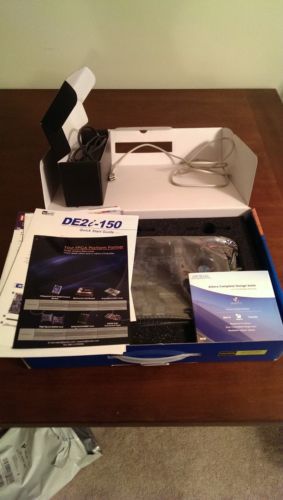

Seller Notes	“Item is in excellent condition, comes with all pieces as shipped, and has been tested and works excellent.”
