*tested* National Instruments Ni Pcie-6361, 16 Channel 16-bit, X-series Daq

US $560.00

  • Boise, Idaho, United States
  • Jun 9th
Open on mobile:
QR code

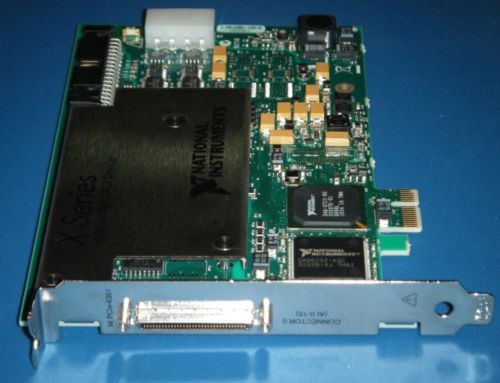

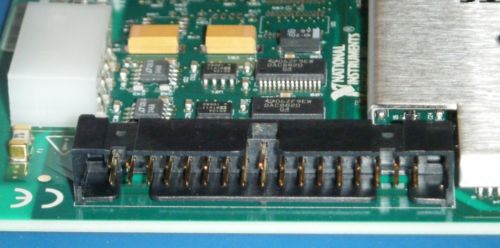

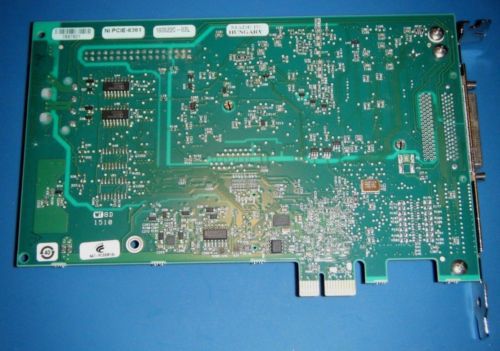

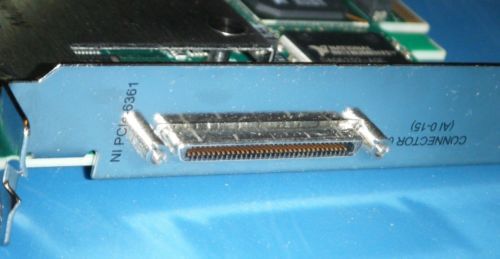

National Instruments (NI) PCIe-6361,  X-Series multifunction DAQ board for PCI, with 16 analog inputs (single ended, or 8 differential), 2 analog outputs, 24-bit digital I/O, and counters/timers. Assy  #193522C-03L, same board shown. The board has been fully tested, and also passes all NI Diagnostics 2.1 testing, NI-MAX self-tests and self-calibrations within NI-MAX. from NI- NI X Series multifunction data acquisition (DAQ) devices provide a new level of performance with the high-throughput PCI Express bus, NI-STC3 timing and synchronization technology, and multicore-optimized driver and application software. High-Throughput PCI Express Bus PCI Express offers dedicated bandwidth of up to 250 MB/s in each direction to each device, and X Series devices feature a native PCI Express interface with optimizations for high throughput and low latency. NI-STC3 Technology NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analog and digital timing engines, retriggerable measurement tasks, and four counter/timers with more functionality than ever before. 16 analog inputs, 2 MS/s 1-channel, 1 MS/s multichannel; 16-bit resolution, ±10 V Two analog outputs, 2.86 MS/s, 16-bit resolution, ±10 V 24 digital I/O lines (8 hardware-timed up to 10 MHz) Four 32-bit counter/timers for PWM, encoder, frequency, event counting, and more Analog and digital triggering and advanced timing with NI-STC3 technology Support for Windows 7/Vista/XP/2000   The PCIe-6361 will be well packaged and sent in box via USPS Priority Mail, signature required, insured. The tracking # will be entered into ebay and paypal after shipment.
“National Instruments (NI) PCIe-6361 board, used, fully tested and in working condition. Board may have minor cosmetic wear that will not affect function or performance. Board for sale is same board shown in photos.”
Brand National Instruments
MPN 193522-03
Model PCIe-6361
Country/Region of Manufacture Hungary
