*tested* National Instruments Ni Pxi-2503 Relay Multiplexer/matrix Switch 48x1

US $830

  • Boise, Idaho, United States
  • Jan 29th
Open on mobile:
QR code

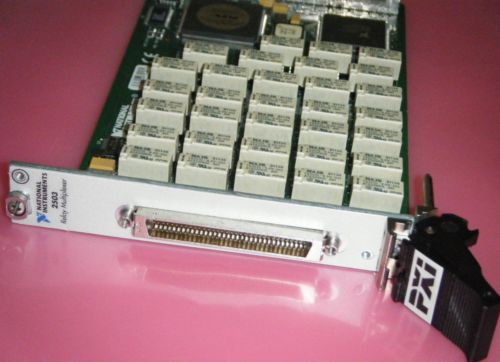

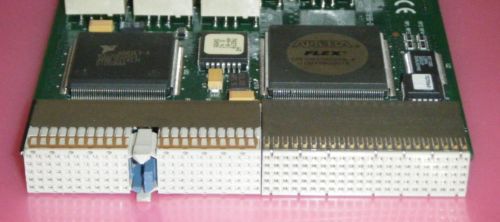

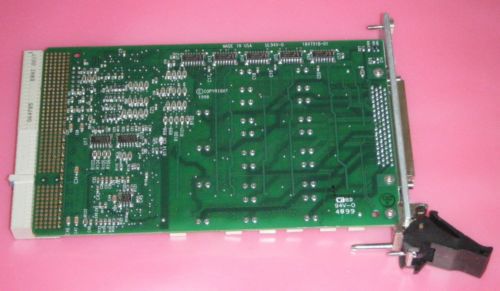

This listing is for a fully tested (each relay contact switching paths < 1 ohm) and guaranteed National Instruments (NI) PXI-2503 multiplexer/matrix relay switch module, also passes NI-MAX self-tests. Assy # 184789B-01, same module shown. This listing is for module only as shown.  From NI- The National Instruments PXI-2503 performs as a multiplexer or matrix switch. It switches signals up to 60 VDC or 30 Vrms. For low-voltage measurements, such as thermocouple signals, the NI PXI-2503 relays have very low thermal offset (less than 2 µV) for accurate measurements. For automotive-level voltage measurements, the PXI-2503 handles up to 1 A at 30 VDC. 48x1 (1-wire), 24x1 (2-wire), 12x1 (4-wire) modes with TB-2605 4x6 (2-wire) matrix mode with TB-2606 1024-step scan list for deterministic scanning Fully software programmable Easy instrument synchronization with hardware triggers The PXI-2503 module will be sent well packaged and within ESD protective packaging, in box by USPS Priority Mail, insured. The tracking # will be entered into ebay and paypal systems after shipment.
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Fully tested National Instruments (NI) PXI-2503 48x1 matrix/switch module, passes NI-MAX self-testing, module relay switching paths each tested for resistance < 1 ohm and passed. The module has minor cosmetic wear that does not affect function or performance.”
