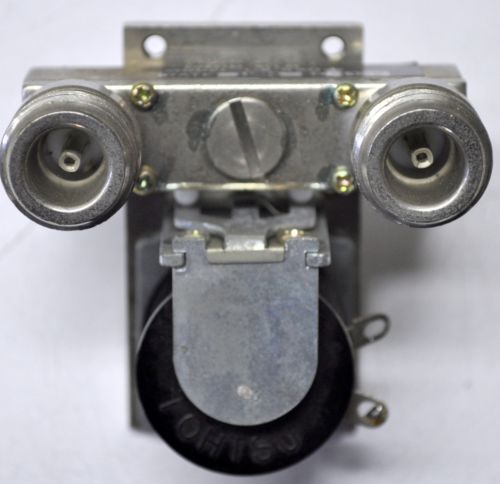

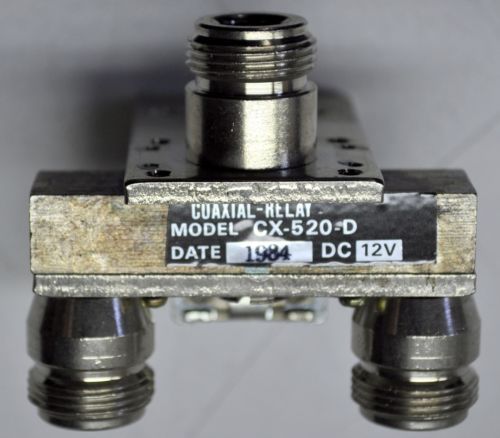

Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 0
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 1
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 2
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 3
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 4
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 0
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 1
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 2
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 3
Tohtsu CX-520-D DC - 2 GHz, 12 VdC RF Microwave Relay Switch Ham Radio, US $69.95 – Picture 4

Tohtsu Cx-520-d Dc - 2 Ghz, 12 Vdc Rf Microwave Relay Switch Ham Radio

US $69.95

  • Fresno, California, United States
  • Jun 9th
Open on mobile:
QR code
Tohtsu CX-520-D SPDT Coaxial Relay with N (F) Connectors DC to 2 GHz. 12  VDC Free Shipping 30 Day Return Policy Specifications RF Impedence: 50 Ohms  Voltage  Pull in: 10 Vdc - 14 Vdc (12 Vdc Nominal)  Drop out: 3.0 Vdc minimum  Current: 160 mA at 12 Vdc at 20 degrees C  Coil resistance: 75 Ohms +/-10% at 20 degrees C.  Switching Time  Pull in: 20 ms typical  Drop out: 15 ms typical  Life Expectancy: 1,000,000. Operation min.  Mechanical  Contact arrangement: SPDT  Operational temperature: -25 to +50 degrees C.  Weight: Approx 230 grams  Mounting: Four screws  Cable connections: 3 N Type female connectors  Electrical Characteristics Frequency MHz VSWR Max Isolation -dB(min) Ins. Loss -dB(max) Input RF Power W 50 1.005 65 0.1 350 150 1.01 60 0.15 300 500 1.03 53 0.18 300 1000 1.05 46 0.2 250 1500 1.17 42 0.2 200 2000 1.2 39 0.25 150 Coil Characteristics Nominal Voltage Voltage Range Resistance Ohms 12Vdc 10Vdc - 14Vdc 75 Ohms +/-10% at 20 degrees C. I pride myself in customer service. Please let me know how I can make your buying experience more enjoyable or if you encounter a problem with your transaction. I am proud to be able to say I am a "Top Rated Plus" EBAY seller and I'm eager to please. Shipping: Ships Worldwide via EBAY's Global Shipping Program Optional - First Class Mail International Ships to Canada via UPS Standard FREE SAME DAY FIRST CLASS SHIPPING within the CONUS Optional - Priority Shipping ($6.95) with tracking (CONUS) 30 DAY MONEY BACK GUARANTEE PLEASE CHECK MY FEEDBACK RATING AND OTHER LISTINGS
“Very excellent condition coaxial relay. Checked out and guaranteed.”
Brand Tohtsu
Country/Region of Manufacture Japan
MPN CX-520-D
