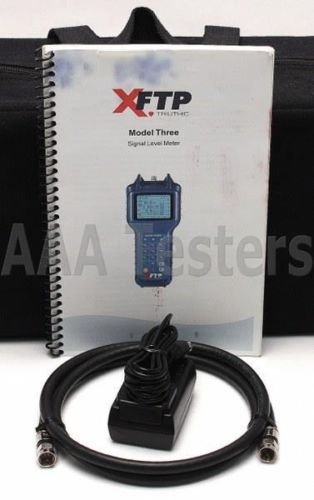

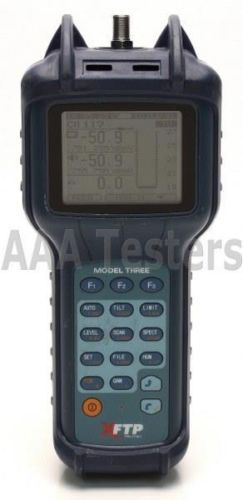

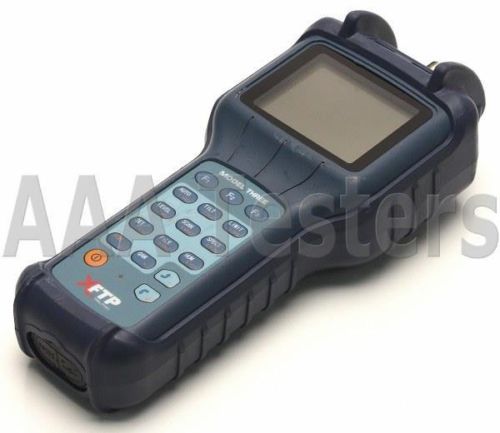

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: Trilithic Model Three XFTP Signal Level Meter (BC# 11155) Coax Cable AC Adapter/Charger Hard Copy User Manual Carrying Case BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! Trilithic Model Three XFTP Signal Level CATV Meter 5 MHz to 1 GHz Frequency Range Includes Carrying Case And Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty Model Three 5 MHz to 1 GHz Frequency Range Full Scan, Single Channel, and Spectrum Modes Data Logging Digital Signal Measurements: Power, MER, Pre- and Post-FEC BER (Including Deep Interleave) Constellation Display Rugged, Simple to Use, and Cost Effective The Model Three™ signal level meter is ideal for CATV installations - featuring a wide range of tests for analog and digital channel measurements. This rugged instrument can be customized, streamlining tests and making your installations and troubleshooting more efficient. With the press of a single key, the meter performs a complete test of all channels in the selected user channel plan to specified limits. It can also be set to automatically perform Level, Spectrum, Tilt (Favorite), Hum, QAM, and Limit tests at programmed intervals, unattended. Carrier amplitudes are displayed individually, grouped with up to 12 “favorites”, or in scan mode with five levels of magnification or full channel plan scan. This meter features a single-channel spectrum mode which displays interfering beats in addition to the carrier amplitudes. The meter also tests QAM channels, performs Hum measurements, provides data logging, includes a voltmeter, and much more. Learned Channel Plans The Model Three conveniently stores up to four user-defined channel plans customizing the meter for contractors that work in several systems with different channel lineups. Plans can be automatically learned (from eight base plans) at a cable drop, or downloaded from PC files using the optional ToolBox™ software. The operator can select favorite channels in each user plan to be included in a Tilt/Favorite channel plan. Digital Channel Measurement with Constellation Display The Model Three can measure the channel power of QPSK and QAM channels when testing or troubleshooting your digital transmission system. This function also measures MER and pre- and post-BER for QAM channels (including deep interleave). The Constellation display allows the operator to quickly analyze 64 and 256 QAM downstream channels verifying quality or identifying impairments. This feature is field-installable and can be added at the operator’s convenience. Wide Channel Scans The Model Three can display up to 126 channels in a single view or a total of 170 channels can be displayed in overlapping views. The settings for the active measurement mode can be accessed at the press of a single key, without going through nested menus. This allows the operator to quickly make changes in the settings and return to measurement mode saving valuable time. Level Measurement As an aid to troubleshooting, the operator can choose LIVE, MAX, or ? P-P (variation) signal level displays. Spectrum Measurement In Spectrum mode the full spectrum or frequency spans from 2.5 MHz to 62.5 MHz can be displayed. The ? MARKER function is included in Spectrum and Single-Channel Spectrum modes. MAX HOLD captures transient events. The Model Three also has an Average display function for Spectrum. HUM The Hum measurement function is used to troubleshoot interference that may result from a defective power supply or faulty or overloaded power inserters. This mode includes 60 Hz and 120 Hz (or 50 Hz and 100 Hz) and low pass (1 to 400 Hz) measurements. Voltmeter The Model Three is equipped with a built-in voltmeter function that can be used for troubleshooting power supplies or power drops. The measurement is displayed as a bar graph with a numerical readout and can accommodate AC or DC voltages up to 100 Volts. User-Defined Tests A significant time and cost savings feature of the Model Three is the capability to group tests into automatic tests that can be executed with a single keystroke. Several Auto-Tests can be stored in the meter and recalled as needed. These may include Level, Tilt, Spectrum, QAM, Hum, and Limit tests. Limit test data allows for test uniformity and flexible field storage, and may be automatically scored against specified limits and assembled into reports. Automated Proof of Performance At the press of a key, the Model Three performs FCC Part 76 level-related tests including: Visual Carrier Levels, ? V/A, Max ? Visual Carrier Levels, and ? Adjacent Visual Carrier Levels. Measurements can be executed immediately or programmed to occur at timed intervals, unattended, as an FCC 24-hour variation test. The test results can then be compared against FCC limits, or limits set by the user. Flexible Data Storage The operator can select and save the test data of the Level, Tilt, Spectrum, Scan, QAM, Hum, Limit, and Auto-Test measurements and recall them as needed. Scan, Spectrum, and Limit files can be viewed graphically. Any combination of up to 30 Level, Tilt, Spectrum, Hum, QAM, or scans, or up to 22 Limit test measurement files may be saved on the Model Three. These data records may be uploaded to a PC through the optional ToolBox software for reports, analysis, and printing. Extended Battery Life, Fast Charging The Model Three’s battery provides five hours or more of continuous use between charges. One hour of fast charging from AC or vehicle power provides nearly two hours of extended operation. Specifications: Frequency Range: 5 MHz to 1 GHz Accuracy: ±50 ppm @ 20° C ± 5° (68° F ± 9°) Resolution: 10 kHz Channel Type Analog TV: TV Digital TV: 16/32/64/128/256 QAM, QPSK, COFDM FM channel: Single frequency Analog Level Measurement Range: 5 MHz to 65 MHz (-42 dBmV to +60 dBmV) 65 MHz to 1GHz (-35 to +60 dBmV) Accuracy: > -25 dBmV: ± 1.5 dB @ 10° to 30° C (50° to 86° F) ± 3.0 dB @ -10° to +40° C (14° to 104° F) Resolution: 0.1 dBInput impedance: 75 ? (unbalanced, BNC or F-type connector) Hum Range: 2 to 5% LPF, BPF Accuracy: ±0.5% (BPF) Channel Scan Number of channels: 170 (max) Scanning speed: 3 channels per second Scale: 1, 2, 5, 10 dB/divZoom: 1x, 2x, 3x, 4x, 5x; five levels of magnification or full channel plan scan Frequency Spectrum Bandwidth: 2.5 MHz, 6.25 MHz, 12.5 MHz, 25 MHz, 62.5 MHz, and full span Scale: 1, 2, 5, 10 dB/div Digital Channel Demodulation type: ITU-T J.83 Annex A/B/C standard Support: 16/32/64/128/256 QAM, QPSK, COFDM Symbol rate: 4 to 7 MS/sec Bandwidth: 0.28 to 9.99 MHzM: To 36 dB or greater (QAM) Accuracy: ±2.0 dB BER: 1E-3 to 1E-9 before and after R-S decoding (QAM) Power measurement type: QAM, QPSK, COFDM Digital Channel Power (Average) Level range: -25 to +55 dBmV Accuracy: ±2.0 dB @ 10° to 30° C (50° to 86° F) ±3.0 dB @ -10° to 40° C (14° to 104° F) R esolution: 0.1 dB Constellation (Optional) Display size: 64 and 256 QAMConstellation with zoom capability Tilt Measurement Number of channels: 4 to 12esolution: 0.1 dB Limit Test Parameters Any of the following may be enabled: Min video: 40 to 119 dBiV (-20 to +59 dBmV) Max video: 41 to 120 dBiV (-19 to +60dBmV) Max ? video: 2 to 30 dB Min ? V/: 0 to 15 dB Max ? V/: 5 to 30 dB Max ? DJ: 0 to 20 dB 24-hour video dev.: 0 to 20 dB Auto-Test Number of programs: 7 (max) Tests: Level, Tilt, Spectrum, QAM, Hum, and Limit (any or all tests may be used in an Auto-Test program) Time intervals: 1 to 23 hours Test times: 1 to 10 times Trunk Voltage Measurement Input range: 10 to 100 VAC or VDC Accuracy: ±2.0 Vesolution: 0.1 V Power 11.1 V / 1.4 AH Li-Ion battery Provides 5 hours of continuous operation Charger: 100 to 240 VAC, 50/60 Hz, 15 VDC, 2 A (max) Charge time: Less than 3 hours Display 128 x 128 backlit LCD Communication Port RS-232C (Converts to USB with data cable) Storage 32 Kb of memory Up to 30 complete scan files (170 channels, max) or 22 complete Limit test files (170 channels, max); less if other files (Level, Tilt, QAM, Hum, Spectrum) are saved Weight 1.76 lbs (800 g) Dimensions (H x W x D) 8.52” x 3.74” x 1.93” (218mm x 95mm x 49mm) Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. Shipping Rate Calculator Enter your ZIP/POSTAL code: Select your COUNTRY: United States Canada United Kingdom Afghanistan Albania Algeria American Samoa Andorra Angola Anguilla Antigua and Barbuda Argentina Armenia Aruba Australia Austria Azerbaijan Republic Bahamas Bahrain Bangladesh Barbados Belarus Belgium Belize Benin Bermuda Bhutan Bolivia Bosnia and Herzegovina Botswana Brazil British Virgin Islands Brunei Darussalam Bulgaria Burkina Faso Burma (Myanmar) Burundi Cambodia Cameroon Cape Verde Cayman Islands Central African Republic Chad Chile China Christmas Island Cocos (Keeling) Islands Colombia Comoros Congo, Democratic Republic of the Congo, Republic of the Cook Islands Costa Rica Cote d Ivoire (Ivory Coast) Croatia, Democratic Republic of the Cuba Cyprus Czech Republic Denmark Djibouti Dominica Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritrea Estonia Ethiopia Falkland Islands (Islas Makvinas) Fiji Finland France French Guiana French Polynesia Gabon Republic Gambia Georgia Germany Ghana Gibraltar Greece Greenland Grenada Guadeloupe Guam Guatemala Guernsey Guinea Guinea-Bissau Guyana Haiti Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jersey Jordan Kazakhstan Kenya Kiribati Kuwait Kyrgyzstan Laos Latvia Lebanon Lesotho Liberia Libya Liechtenstein Lithuania Local State/Province Luxembourg Macau Macedonia Madagascar Malawi Malaysia Maldives Mali Malta Marshall Islands Martinique Mauritania Mauritius Mayotte Mexico Micronesia, Federated States of Moldova Monaco Mongolia Montenegro Montserrat Morocco Mozambique Namibia Nauru Nepal Netherlands Netherlands Antilles New Caledonia New Zealand Nicaragua Niger Nigeria Niue North Korea Norway Oman Other Pakistan Palau Panama Papua New Guinea Paraguay Peru Philippines Poland Portugal Puerto Rico Qatar Romania Russian Federation Rwanda Saint Helena Saint Kitts Saint Lucia Saint Pierre and Miquelon Saint Vincent and the Grenadines Samoa San Marino Saudi Arabia Senegal Serbia, Republic Of Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Islands Somalia South Africa South Korea Spain Sri Lanka Sudan Suriname Svalbard Swaziland Sweden Switzerland Syria Taiwan Tajikistan Tanzania Thailand Togo Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Turks and Caicos Islands Tuvalu Uganda Ukraine United Arab Emirates Uruguay Uzbekistan Vanuatu Vatican City State Venezuela Vietnam Virgin Islands (U.S.) Wallis and Futuna Western Sahara Yemen Zambia Zimbabwe We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Manage all your eBay listings with Kyozou eBay Listing Software
