Ttc/acterna T-berd Tb-950 Communications Analyzer Opts:dds-ll/tims/sig/data/pri+

US $3,631.88

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

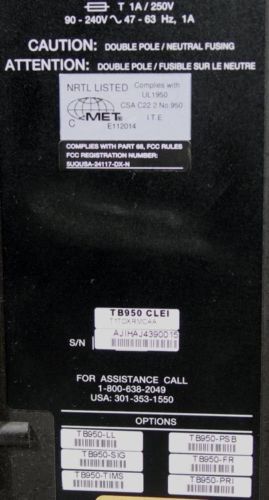

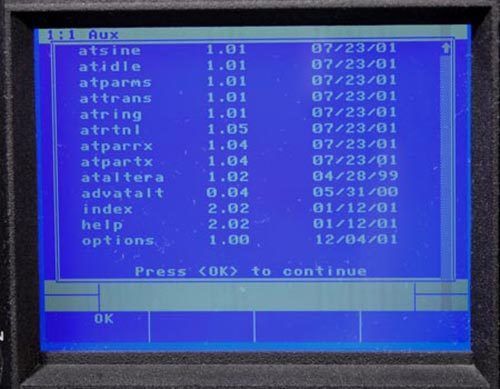

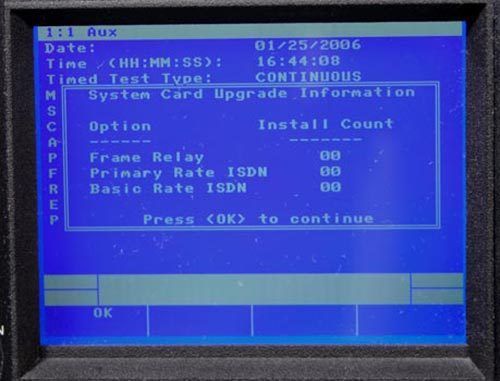

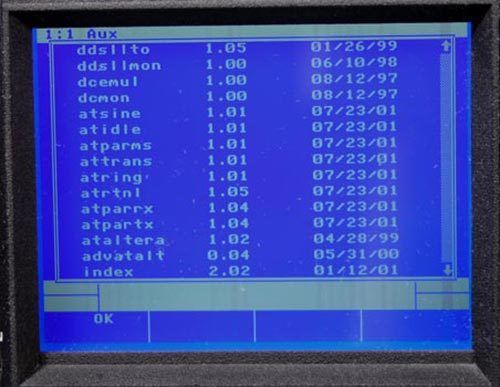

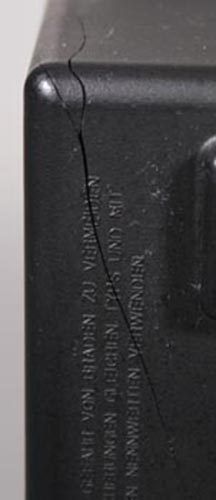

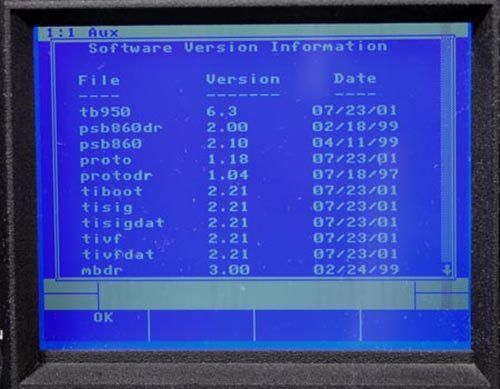

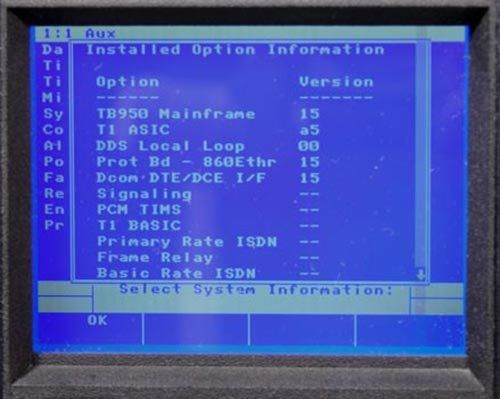

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Acterna TB-950 T-BERD Multi-Service Communications Analyzer with Options: DDS-LL, TIMS, SIG, DATA, PRI, BRI, PSB, FR Comes with a manual, power cord, carrying case and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Acterna and may vary slightly due to upgrades, options, or revisions this unit may or may not have (Please look closely at the options I have listed). The unit is guaranteed to work for 30-days, parts and labor, excluding the batteries and freight. Pricing Information from Acterna: List Price for Basic Unit is: $9,430.00 List Price for Total Options is: $11,735.00 Total List Price is: $21,165.00 NEW The Unit's Serial Number Tag Reads: Serial Number: AJIHAJ4390015 Model Number: TB-950 CLEI: T1TDXRMCAA Additional Information from the Unit: Power Requirements: 90-240 V~, 47-63 Hz, 1 A Software Version: 6.3, 07/23/01 The Unit has the Following Options: TB950-BRI: Basic Rate ISDN which lists for $1675.00 (not listed on unit, but the sytem has it) TB950-FR: Frame Relay which lists for $1360.00 TB950-LL: DDS Local Loop which lists for $1990.00 TB950-PRI: Primary Rate ISDN which lists for $1360.00 TB950-PSB: Lists for $1780.00 TB950-SIG: PCM Signaling which lists for $1045.00 TB950-TIMS: PCM TIMS which lists for $730.00 TB950-DATA: Datacom (DTE/DCE) Interface Module which lists for $1795.00 Link to the Datasheet: Acterna TTC T-Berd 950 Analyzer Datasheet Link to the Manual: Acterna TTC T-Berd 950 Analyzer Manual The Software has New Features including: New user interface, including front panel overlays TNT Task Testing Expanded help functionality Inverted HDLC frames support for PRI, the ISDN PRI option, and a 860 Protocol Services Board General Description: The Acterna TB-950 Communications Analyzer is a multi-functional instrument that combines troubleshooting and turn-up testing capabilities for digital, analog, voice, and data circuits in one unit. The T-BERD 950 thoroughly tests digital services such as T1/FT1, DDS local loop, and T1 PBX trunks. It also supports testing for analog services such as DID and analog data. Protocol services including ISDN BRI, ISDN PRI, and frame relay, in addition to other network technologies and services are also supported by the T-BERD 950. Built with the demands of the field technician in mind, the T-BERD 950 is designed to expand and support new technologies and services without sacrificing the ease of use or portability. The T-BERD 950 can verify network/WAN connectivity from an Ethernet interface by transmitting Internet control message protocol (ICMP) echo requests (PINGs) and respond to received PINGs. Additionally, the T-BERD 950 can place, receive, and monitor ISDN PRI calls on 23 B+D, 47 B+D, and 46 B+2D circuits while viewing full layer 3 D channel decodes. When testing DS0 channels, the T-Berd 950 can place, receive, or monitor calls as well as analyze captured signaling events and digits on T1 voice trunks when performing PCM TIMS tests such as C-message noise and three tone slope over individual tone slope over individual channels. Accessing standard BERT options such as frame relay allows the T-BERD 950 to perform dual receiver monitoring or terminated testing at the customer's four-wire DDS 65k, 56k, or sub-rate lines. The T-BERD 950 provides complete link management at customer premises equipment (CPE) and test frame generation to verify frame relay LMI functionality, PVC status and quality of service (QoS). Highlights: Multiple service testing capabilities combined in a single test instrument Analog and digital testing support Growth-oriented protocol services board and interface module expansion slot for future test access capability TNT Task Based Testing user interface makes routine test set-up simple and intuitive Large graphical LCD allows for two user display screen and a two line results display Applications: Qualify local loop copper wire pairs for both analog and digital services Perform full-duplex monitoring of active T1 and DDS lines Verify and troubleshoot ISDN BRI and PRI services Test the ability to handle incoming calls with PBX/Switch emulation Install and maintain frame relay service from T1, DDS, and Datacom interfaces Perform IP service verification and trouble isolation from a 10BaseT interface. Features: Analog (2W/4W) Interface Module ISDN (BRI/PRI) Option Frame Relay Option DDS Local Loop Option 10BaseT/Ethernet Option Functions: Perform standard T1 BER testing and signal analysis measurements Gain T1/FT1 access for BER testing with standard and advanced stress patterns, as well as built-in T1 smart repeater and HDSL loopcodes Test end-to-end WAN service through DTE/DCE equipment emulation and in-service monitoring Perform TIMS measurements for qualification of voice and data circuits; place, receive calls, and perform signaling event/digit analysis on analog loop start, ground start, and DID voice circuits Verify circuit-switched ISDN BRI voice, data, and D packet services by performing NT1 and LT BERT, or NT1/TE emulation T1 Specifications: Operating Modes: Terminate (TERM), Drop and Insert (D&I), Monitor (MON), Line Loopback (LLB) Framing: ESF, SF, SLC, Unframed, Auto T1 Input: Frequency: 1.544 MHz ±5000 Hz Input Impedance: TERM: 100 ohms ±5% BRIDGE: 1000 ohms minimum DSX-MON: 100 ohms ±5% Operating Range: TERM: +6 dBdx to -35.0 dBdsk cable attenuation DSX-MON: +6 dBdx to -35.0 dBdsk cable attenuation T1 Output: Frequency: 1.544 MHz ±7 Hz Line Build Out (LBO): 0, -7.5, -15, -22.5 dB ±1 dB at 772 kHz Operating Range: DSX MON: -10 dBdsx to -30 dBdsx resistive attenuation Line Coding: AMI, B8ZS Error Insert Type: BPV, Logic, Frame, L&BPV (Logic and BPV errors) Indicators: Signal Present, Frame Sync, Pattern Sync, B8ZS Detect, AIS (Alarm Indication Signal) and Yellow Alarm Frequency Measurement Specifications: Accuracy: ±10 ppm Resolution: 1 Hz Level: Peak to Peak: 20 mV to 12.0 V Positive and Negative Base to Peak: 10 mV to 6.0 V Positive and Negative Base to Peak: -48.0 dBdsx to +6.7 dBdsk Resolution: ±1 dB Simplex Current: Range: 10 to 207 mA, and under 10 mA Accuracy: ±10% or 2 mA (whichever is greater) Wander: Resolution: 1 UI Accuracy: 1 UI DDS Specifications: Data Formats: Standard DDS and DDS with Secondary Channel Primary Channel Data Rates: 2.4, 4.8, 9.6, 19.2, 38.4, 56 and 64 kbps Secondary Channel Data: Idle, 511, and 2047 BER testing patterns are available Clock Source: Internal Oscillator, Recovered timing from received signal Receive Signal: Connection: OCU DP Mode: RJ-45 pins 1 & 2 DSU/CSU Mode: RJ-45 pins 7 & 8 Monitor Mode: RJ-45 pins 1 & 2 and 7 & 8 Termination Impedance: Balanced, 135 ohm ±5 % Bridging Impedance: Greater than 1900 ohms Operating Range: 56 kbps and 64 kbps: +6.0 dB to -45 dB minimum All other data Rates: +6.0 dB to -40 dB minimum Transmit Signal: Connection: OCU-DP Mode: RJ-45: pins 7 & 8 DSU/CSU Mode: RJ-45: pins 1 & 2 Termination Impedance: Output Levels: Balanced, 137 W, ±5% Output Levels: 0, -3, -6, and -9 dB of simulated cable attenuation Test Modes: TERMINATE, MONITOR, Line Loop Back (LLB) Emulation Modes: DSU/CSU, OCU-DP or Metallic Simplex Current: Input Level: ±30 mA maximum Measurement Range: ±26 mA with an accuracy of ±10% or 2 mA OCU-DP Mode Current Output: > or = to 4 mA to 20 mA depending on span length Error Insertion: Operation: Single or continuous Error insert type: Logic, BPV, L&BPV, or Frame Loop Response: V.54, DSU/CSU, Disabled Frame Relay Specifications: Test Modes: Terminate, Drop and Insert (T1 Interface Only), Monitor Link Management Analysis: LMI Rev.1, T1.617 Annex D, Auto, None PING Testing: ICMP Echo Test, NLPID Encapsulation ISDN BRI U Interface Specifications: Interface: U Interface with To LT and To NT Devices: NT1 Physical Configuration: Point to Point, Synchronous and Full-Duplex Bit Rate: 160 kbps User Data Rate: 144 kbps Line Coding: 2B1Q Line Rate: 192 kbps Maximum Voltage: ±2.5 V 10BASET/Ethernet Specifications: Test Modes: Terminate DHPC Implementation: RFC 2131 PING Testing: ICMP Echo Test Traffic Generation: Load Rate: 1 kbps to 10 Mbps (User Selectable) Packet Length: 70 to 1518 bytes (User Selectable) Analog Module Specifications: Interfaces: Two Bantam connectors: 2-wire alternate Transmit and Receive on the 2W/4W Tx connector, 4-wire simultaneous Transmit on the 2W/4W Tx connector and Receive on the 4W Rx connector Termination Impedance: 135 ohm, 600 ohm, or 900 ohm Loopbacks: Tx VF Loop Up, Tx VF Loop Down, 2713 Hz Loopback Response Level: 10 dB to -30 dB Frequency: 2706 Hz to 2720 Hz Receive Holding Tone: Frequency: 1004 Hz Level: Controllable from +10 dBm to -40 dBm Stability: ±0.005 Hz Ring Detection (2 Wire Only): 40 V to 150 V RMS Ringing Signal, 16 Hz to 68 Hz Line Holding Current: 26 mA DC, -8.6 V to -56.7 V (Signaling or Signaling plus TIMS) Dial and Receive Digit Types: DP: Dial Pulse DTMF: Dual Tone Multifrequency MF: Multifrequency (DID only) Datacom Module Specifications: Interface: EIA-232-D: Supports EIA-232-D/V.24/V2.8 - BA, BB, CA, CB, DD, CF, DB, DD, LL, RL, CD, DA and TM EIA-530: Supports EIA-422-B for BA, BB, CA, CB, CC, CD, CF, DA, DB, and DD - Supports EIA-423-B for LL, RL, and TM RS-449: Supports EIA-422-B for SD, RD, RS, CS, DM, TR, RR, RT, ST, and TT - Supports EIA-423-B for LL, RL, and TM (Requires DB25 to DB37 Adapter for EIA-530 connector) V.35/306: Supports balanced clock and data circuits, and EIA-232/V.24/V.28 control circuits Supports 306 for SCT, SCTE, SCR, SD and RD - Supports V.35 for 103, 104, 114, and 115 - Supports V.28 for 105, 106, 107, and 109 X.21: Supports V.11 for R, I, S, T and C Data Rates: EIA-232 Max. Synchronous Data Rate: 128 kbps Max. Recovered Data Rate: 128 kbps RS-449 Terminated: Max. Synchronous Data Rate: 10 Mbps Max. Recovered Data Rate: 512 kbps RS-449 Unterminated Max. Synchronous: with cable characteristics Max. Recovered: 512 kbps EIA-530 Terminated: Max. Synchronous Data Rate: 10 Mbps Max. Recovered Data Rate: 512 kbps EIA-530 Unterminated: Max. Synchronous: Varies with cable characteristics Max. Recovered: 512 kbps. X.21 Max. Synchronous: Varies with cable characteristics Max. Recovered: Varies with cable characteristics. V.35 Max. Synchronous: Varies with cable characteristics Max. Recovered: 512 kbps.V.35-306 Max. Synchronous. Data Rate: 5 Mbps Max. Recovered Data Rate: 512 kbps Test Modes: BERT, Frame Relay For More Pictures Please Click the Following: Picture 2 - Front Controls, Up-Close Picture 3 - Input/Output Connections #1 Picture 4 - Input/Output Connections #2 Picture 5 - Input/Output Connections #3 Picture 6 - Installed Options Menu Picture 7 - System Upgrade Information Menu Picture 8 - Software Versions #1 Picture 9 - Software Versions #2 Picture 10 - Software Versions #3 Picture 11 - Crack on the Unit's Plastic Casing Picture 12 - Serial Number Tag, Option Tags, Power Requirements For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $50.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? For all international customers, the following terms and conditions shall apply: These commodities, technology, or software are to be exported from the United States in accordance with Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Domestic customers must also agree to the following terms and conditions: For items shipped within the United States, MHz Electronics, Inc's performance shall occur entirely within the United States. Unless expressly agreed to by MHz Electronics, this shall not be a routed party transaction. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 01/30/06 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“The unit is guaranteed to work for 30-days, parts and labor, excluding the batteries and freight.”
