Tubing Bender Plans (diy) Build Your Own Bender

US $14.95

  • Minneapolis, Minnesota, United States
  • Jan 30th
Open on mobile:
QR code

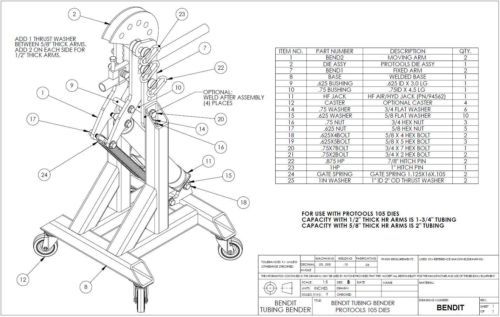

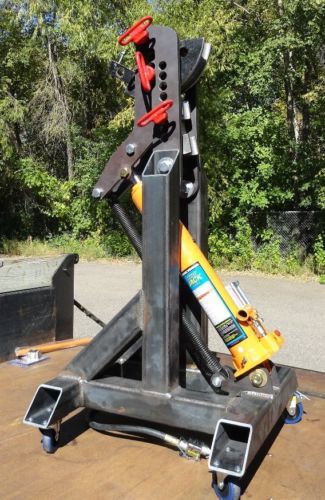

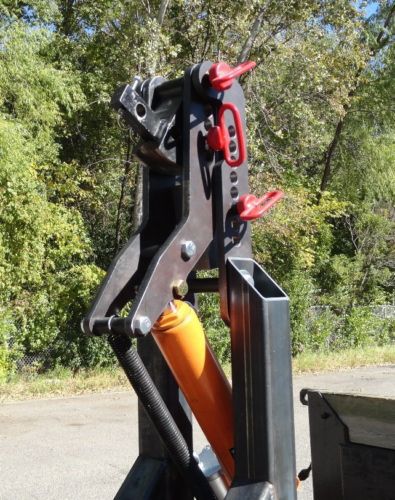

We are offering plans to DIY customers who want to build a tubing bender and save money. This is a proven design and these are the same prints which were used to produce the benders. This is a download only version which will be sent to the email you provide to PayPal when you make payment. NOTE: The purchase of these plans entitles the customer to build a bender for personal or commercial use. The plans are not for the purpose of building multiple units for resale. The plans cannot be distributed without our written consent. What is included in this kit? All of the information required to build the bender shown.  This is a download only version of the plan kit.   The required DXF file and a link to all other prints will be emailed after payment is received.  If you wish to machine the parts, you would need to add dimensions to the parts in the dxf file using a CAD program or use a CAM program to generate the tool path.  The plan kit includes: PDF of assembly drawing PDF of frame weldment print PDF of parts to be CNC cut DXF of parts to be CNC cut Cut sheets for all purchased parts Prints in PDF format for fabricating and assembling the bender.  You will receive the DXF files required to cut the components. **FOR USE WITH PROTOOLS 105 DIES** CAPACITY WITH 1/2" THICK ARMS IS 1-3/4" TUBING, CAPACITY WITH 5/8" THICK ARMS IS 2" TUBING NOTE: NO TECHNICAL SUPPORT CAN BE OFFERED AT THIS PRICE.  Payment is in US dollars only.
