Two Hole Pins. Standard Size. 2 Hole Flange Pins 1/2" To 1-5/8" Knurled Finger

US $45.00

Sulphur Springs, Arkansas, United States
Jan 30th

Open on mobile:
QR code

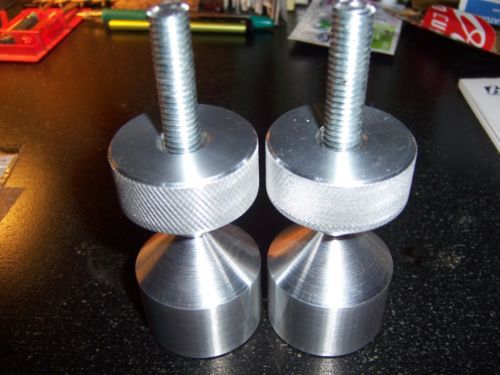

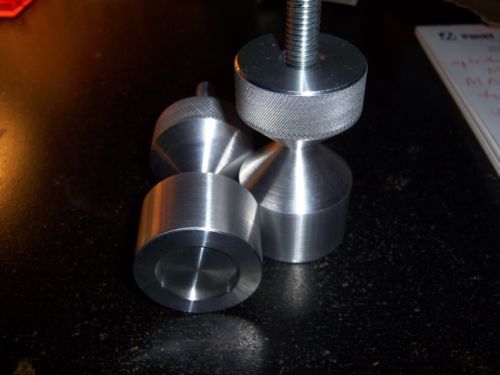

Hi, up for sale is 1 set of custom, aluminum, "2 hole" pins. These measue 1-5/8" O.D., and will fit holes from 1/2" to 1-9/16" and are very light weight, but strong. These have a 45 degree taper with 1/2"-13 removable threads, 3" long, and Knurled nuts. Welding splatter is fairly easy to remove from the aluminum, if it should get on there. Every serious pipe fitter, metal fabricator, millwright, or welder in the field should have a set. Thanks for looking! Carbon and stainless, flange reference guide - Class 150 Flanges - outside and inside diameters, bolt circles, numbers and diameters of bolts for Weld neck, Threaded, Slip-on, Lap joint, Socket weld and Blind flanges. Carbon and stainless steel qualities according ASME B16.5 Table 1A. Pipe Size (inches) Flange Outside Diameter (inches) Pipe Outside Diameter (inches) Number of Bolt Holes Bolt Hole Diameter (inches) 1) Bolt Circle (inches) 1/2 3-1/2 0.84 4 5/8 2-3/8 3/4 3-7/8 1.05 4 5/8 2-3/4 1 4-1/4 1.32 4 5/8 3-1/8 1-1/4 4-5/8 1.66 4 5/8 3-1/2 1-1/2 5 1.90 4 5/8 3-7/8 2 6 2.38 4 3/4 4-3/4 2-1/2 7 2.88 4 3/4 5-1/2 3 7-1/2 3.50 4 3/4 6 3-1/2 8-1/2 4.00 8 3/4 7 4 9 4.50 8 3/4 7-1/2 5 10 5.56 8 7/8 8-1/2 6 11 6.63 8 7/8 9-1/2 8 13-1/2 8.63 8 7/8 11-3/4 10 16 10.75 12 1 14-1/4 12 19 12.75 12 1 17 14 21 14.00 12 1-1/8 18-3/4 16 23-1/2 16.00 16 1-1/8 21-1/4 18 25 18.00 16 1-1/4 22-3/4 20 27-1/2 20.00 20 1-1/4 25 24 32 24.00 20 1-3/8 29-1/2 1) Recommended bolts are 1/8 smaller than the nominal bolt hole diameters shown. Class 300 Flanges - outside and inside diameters, bolt circles, numbers and diameters of bolts for Weld neck, Threaded, Slip-on, Lap joint, Socket weld and Blind flanges. Carbon and stainless steel qualities according ASME B16.5 Table 1A. Pipe Size (inches) Flange Outside Diameter (inches) Pipe Outside Diameter (inches) Number of Bolt Holes Bolt Hole Diameter (inches)1) Bolt Circle (inches) 1/2 3-3/4 0.84 4 5/8 2-5/8 3/4 4-5/8 1.05 4 3/4 3-1/4 1 4-7/8 1.32 4 3/4 3-1/2 1-1/4 5-1/4 1.66 4 3/4 3-7/8 1-1/2 6-1/8 1.90 4 7/8 4-1/2 2 6-1/2 2.38 8 3/4 5 2-1/2 7-1/2 2.88 8 7/8 5-7/8 3 8-1/4 3.50 8 7/8 6-5/8 3-1/2 9 4.00 8 7/8 7-1/4 4 10 4.50 8 7/8 7-7/8 5 11 5.56 8 7/8 9-1/4 6 12-1/2 6.63 12 7/8 10-5/8 8 15 8.63 12 1 13 10 17-1/2 10.75 16 1-1/8 15-1/4 12 20-1/2 12.75 16 1-1/4 17-3/4 14 23 14.00 20 1-1/4 20-1/4 16 25-1/2 16.00 20 1-3/8 22-1/2 18 28 18.00 24 1-3/8 24-3/4 20 30-1/2 20.00 24 1-3/8 27 24 36 24.00 24 1-5/8 32 1) Recommended bolts are 1/8 smaller than the nominal bolt hole diameters shown. FREE! Sellers: Add a FREE map to your listings. FREE!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Jermamma
Country of Manufacture	United States
