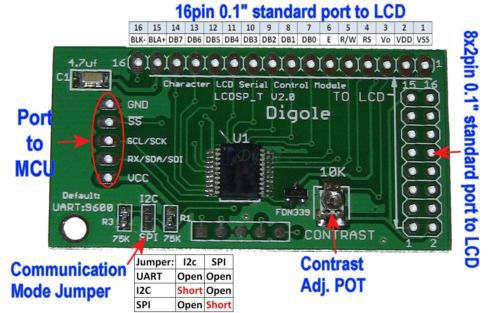

This item is made and shipped from Canada, sorry can't be combined with other items Item Description Shipping Return/Warranty Payment About us FAQ Description If you need large quantity of this item, please contact us in advance Sale is for 1 pieces of: 2nd Version-Serial: UART/I2C/SPI Text LCD Display Adapter for 1602/1602/2002/2004/4002 LCD Backlight be controlled able by software (This auction EXCLUDE LCD panel in pictures below) (Please compare the pinout with you display, make sure they are same before purchasing) Unlike other "Serial Display" which just convert serial input to parallel, Digole's Serial displays and adapters embedded a powerful MCU to process the commands received. Display characters and control back light as you want, all commands are simple, high level and easy to remember! Programing User Manual Download Arduino lib and demo code mbed Library (Thanks for Michael Shimniok to contribute code) The following vedio show this adapter work with 16pin and 8*2pin LCD In order to use a Text LCD display, you need connect at least 4 data pins and 2 control pins from your circuit to display, and you also need to spend some time to write code to drive it, in some case, you may need couple of days to deal with it, and it will give you a nightmare when changing to other display. This control module (adapter) will help you to solve this issue, it can work with most 1602/1604/2002/2004/4002 LCD that config with KS0066U/F / HD44780 and other compatible chips seamlessly, so you can use your display with this module in couple of minutes!(Please ask if you not sure whether or not your LCD is compatible with the adapter) What benefits you if using these products in you electronic projects? Save lots of the I/O resources: these products only need 1 to 3 I/O pins from your master controller that depends on the communication type you want. Easy to use: the commands sending to products are easy to remember and understand. FEATURES: Supply voltage: 1.8V to 5.5V Communication mode: UART/I2C/SPI, defined by the jumper on board Receiving buffer: 64 bytes Work with KS0066U/F / HD44780 and other compatible chips Work with most 1602/1604/2002/2004/4002 LCD 16/20 Pins with 2.54mm pitch connect to LCD Low power consumption: 4mA maximum Simple command sets, easy to remember Default setting: UART baud 9600bps, I2C address is 0x27 UART baud (bps): 300, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, selected by software Manual, Arduino lib, sample code download here Turn backlight on/off by software to save energy Work with 2002 LCD (double row 8x2 pin) Work on 1602 LCD (single row 16pin) Pinout of module connect to LCD display: PIN Description PIN Description 1 VSS Ground of circuit 2 VDD Power Supply 3 V0 4 RS 5 R/W 6 E 7 DB0 or D0 8 DB1 or D1 9 DB2 or D2 10 DB3 or D3 11 DB4 or D4 12 DB5 or D5 13 DB6 or D6 14 DB7 or D7 15 BLA or A, + power supply for backlit 16 BLK or K, - power supply for backlit Pinout of this module connect to MCU: PIN Description PIN Description 1 GND (0V) 2 SS: SPI mode only chip select control in, low active 3 I2C and SPI mode: SCK/SCL: Clock in 4 UART mode: RX I2C mode: SDA SPI mode: SDI 5 VCC: power supply 1.8V to 5.5V depends on you LCD Character/Graphic Display Shared Command: (B-one byte, B…-Bytes) Command Description Arduino lib function note CL CLear screen and set the display position to first Column and first Row (x=0.y=0), for graphic LCD, it also set the font to default and turn off the cursor. clearScreen(); CSB set CurSor on/off enableCursor(); disableCursor(); BLB Set Back Light ON/OFF, B=0 or 1, 0 off, 1 on backLightOn(); backLightOff(); Not available on Character Adapter V1 DCB Display Config on/off, the factory default set is on, so, when the module is powered up, it will display current communication mode on LCD, after you design finished, you can turn it off displayConfig(0); displayConfig(1); SBB… Set UART Baud, B are ASCII characters, the available values are: “300”, “1200”, “2400”,”4800”, “9600”, “14400”, “19200”, “28800”, “38400”, “57600”,”115200” Set BAUD when initial the class When adapter power up or reset, always start with 9600 Baud SI2CAB Set I2C Address,the default address is 0x27, the adapter will store the new address in memory setI2CAddress(0x34); Change address to 0x34 STCRBBBBBB Set Text Columns and Rows, this command will config your LCD if other than 1602 and the chip is other than KS0066U/F / HD44780 setLCDColRow(20,4); The last 4 B should be“\x80\xC0\x94\xD4” TPBB set Text Position for following display setPrintPos(6,1); This will affect the following “TT” command TTB… display TexT string, the text will wraped in next row if the current row fulled, the Text Postion will be changed to the last char displyed, this command ended by 0x00 or 0x0D received print(string); print(int); print(char); print(float); print(double); drawStr(x,y,string); The print function in Arduino, also can print other data and format the out put. MCDB Manual CommanD: send command B to display bypass the adapter directCommand(0xaf); Use it if you want to control the display directly MDTB Manual DaTa: send data B to display bypass the adapter directData(0x88); Same as above Arduino Sample Code(download here): #include <DigoleSerial.h> #include <Wire.h> DigoleSerialDisp mydisp(&Serial, 9600); //Pin 1(TX)on arduino to RX on module //DigoleSerialDisp mydisp(&Wire,'\x27'); //SDA (data line) is on analog input pin 4, and SCL (clock line) is on analog input pin 5 //DigoleSerialDisp mydisp(8,9,10); //Pin 8: data, 9:clock, 10: SS, you can assign 255 to SS, and hard ground SS pin on module #define LCDCol 16 #define LCDRow 2 int ptr; const char a[] = "disp char array"; const char b = 'Q'; int c = 3456; String d = "I'm a string"; float pi = 3.1415926535; double lg10; void setup() { mydisp.begin(); /*----------for text LCD adapter and graphic LCD adapter ------------*/ mydisp.clearScreen(); //CLear screen //mydisp.displayConfig(1); //set config display ON, 0=off //mydisp.setI2CAddress(0x29); //this function only working when you connect using I2C, from 1 to 127 //delay(1000); //mydisp.setLCDColRow(16,2); //set LCD Col and Row, only time set up is OK mydisp.disableCursor(); //disable cursor, enable cursore use: enableCursor(); mydisp.drawStr(4, 0, "Demo now"); //display string at: x=4, y=0 //Test print function mydisp.setPrintPos(0, 1); mydisp.print(a); // display a char array resetpos(); mydisp.print("display a char:"); mydisp.print(b); //display a char resetpos(); mydisp.print("int as DEC:"); mydisp.print(c); //display 3456 in Dec resetpos(); mydisp.print("as HEX:"); mydisp.print(c, HEX); //display 3456 in Hex resetpos(); mydisp.print("as OCT:"); mydisp.print(c, OCT); //display 3456 in Oct resetpos(); mydisp.print("BIN:"); mydisp.print(c, BIN); //display 3456 in Bin resetpos(); mydisp.print(d); //display String object resetpos(); mydisp.print("float pi="); mydisp.print(pi); //display float of PI resetpos(); mydisp.print("Pi6="); mydisp.print(pi, 6); //display PI in 6 Accuracy resetpos(); mydisp.print("Pi*3="); mydisp.print(pi * 3, 6); //display PI time 3 in 6 Accuracy resetpos(); mydisp.print("lg5="); mydisp.print(log(5), 8); //display log(5) in 8 Accuracy resetpos(); for (uint8_t j = 0; j < 4; j++) //making "Hello" string moving { for (uint8_t i = 0; i < 10; i++) //move string to right { mydisp.setPrintPos(i, 1); mydisp.print(" Hello "); delay(100); //delay 100ms } for (uint8_t i = 0; i < 10; i++) //move string to left { mydisp.setPrintPos(9 - i, 1); mydisp.print(" Hello "); delay(100); } } mydisp.print("Enjoy it!"); mydisp.enableCursor(); //enable cursor } void resetpos(void) //for demo use, reset display position and clean the demo line { mydisp.setPrintPos(0, 1); delay(2000); //delay 2 seconds mydisp.println(" "); //display space, use to clear the demo line mydisp.setPrintPos(0, 1); } void loop() { } Shipping May need 1 to 6 weeks, see below for detail We will ship item out in 1 working days by Canada Post. We ship to your Paypal address only!!, please verify your Paypal address before sending payment, Estimate Delivery time, except public holiday in Canada and your country (If you can't wait the described time, please don't buy it from us): Ship to Estimated weeks Ship to Estimated weeks North America USA 1 to 3 Asia HK, Japan 2 to 4 Canada 1 to 2 Others 2 to 5 Europe Germany 2 to 3 Australia 2 to 4 UK 2 to 3 Other Country in the World 2 to 6 Others 2 to 4 Return to top Return/Warranty Policy Return with no reason: Item must be sent out in original condition within 7 days since item received, Buyer can return item to our Service Department in Canada by buyer's convenience, Buyer pay the return shipment fee, Same way money refund as you paid. Return/exchange if defective or wrong item buyer received: Buyer must contact with us using ebay message system within 4 days since item received, WE pay the return shipment fee, Replacement or money refund are available upon buyer request. Please contact us using ebay message system in advance before leaving feedback if there were any problem with your items. E-care service: Click here to report problems/return items and more Return to top Payment Payment is expected within 8 days, Ebay Unpaid Item Assistant will open unpaid item case automatically if no payment received in 8 days. We accept Paypal only Return to top About us We try our best to help buyers to pick out the QUALIFIED products from dazzling market with reasonable price, Our goal is to be one of the best seller on ebay, buyer's satisfaction is our #1 concern Return to top FAQ Q: What can you do if my address is not correct? A: Buyer should take all responsibility for offering incorrect information. Return to top
