Uryu U-100ec Intelec Air/hydraulic Pulse Torque Wrench

US $970

Chandler, Arizona, United States
Jan 30th

Open on mobile:
QR code

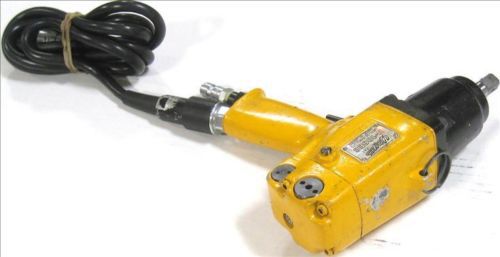

URYU U-100EC INTELEC AIR/HYDRAULIC PULSE TORQUE WRENCH This listing is for a wrench / bolt and nut setter. Make: Uryu Seisaku Ltd Series: Series: Super "Intelec" System EC Tool Model / Part #: U-100-EC (U100-EC) (U-100EC) (U100EC) Description: Air/Pneumatic / Hydraulic Pulse Impact Wrench; Pistol Type Includes all/only items pictured. Here is some information from the manufacturer... BOLT & NUT SETTERS SUPER "INTELEC" SYSTEM EC TOOLS PISTOL / STRAIGHT TYPE The EC-Series of URYU popular Oil-Pulse Tools are equipped with strain-gauged torque transducer on the geared Oil-Pulse Unit and are matched with the Electronic Control Unit, model UEC-4500. This URYU SUPER INTELEC system performs easily with strict control and monitoring of fastening torque and eliminates time consuming manual torque check for super quality control and higher productivity. Cautionary lamp and buzzer warn when fasteners are missed or insufficiently fastened. Specifications Model: U-100EC Capacity (Nominal Bolt Size) mm: 10 Capacity (Nominal Bolt Size) in: 25/64 Torque Range - 0.5MPa (nm): 40-70 Torque Range - 0.5MPa (ft-lbs): 29.5-51.6 Torque Range - 0.6MPa (nm): 50-80 Torque Range - 0.6MPa (ft-lbs): 36.9-59.0 Free Speed (Approx.) rpm (0.5MPa): 1500 Free Speed (Approx.) rpm (0.6MPa): 1600 Overall Length (Approx) mm: 233 Overall Length (Approx) in: 11/64 Weight less Socket or Bit (Approx.) kg: 2.80 Weight less Socket or Bit (Approx.) lb: 6.17 Center from Outside (Approx.) mm: 33.0 Center from Outside (Approx.) in: 1-19/64 Sq Drive or Hex Size (mm): 12.7 Sq Drive or Hex Size (in): 1/2 Average Air Consumption m3/min: 0.65 Average Air Consumption ft3/min: 22.9 Nose Level dB(A): 78 Welcome to our eBay store! To make your purchase as simple and easy as possible, please refer to the store policies listed below. After winning an item in auction or completing a Buy It Now purchase, you have two check-out options: Check-Out Now! Click the Pay Now button at the top of this listing to immediately proceed with our checkout and payment process. Please note that the Pay Now button is ONLY available after winning an auction or completing a Buy It Now purchase. Check-Out Later If you do not choose to Check-Out now, you will be notified by eBay via e-mail that you are the winning bidder. There is no need to contact us to arrange payment. We will automatically send you an e-mail within three hours of an auction closing. Our message will contain a link to our simple and secure checkout system, where you will be able to quickly and conveniently pay for your purchase. You may also continue purchasing additional items from our auctions or eBay store. You have [5] days from the end of the first purchase to add additional items to your order. Make sure all of your auctions have ended prior to checking out. All of your purchases will be consolidated into one checkout! Payment We accept the following forms of payment. PayPal. Sales Tax For shipments to Arizona addresses, we are required by State law to collect 7.8 % Sales Tax. Shipping All items under 100 lbs will be shipped either USPS or Fedex. Any items over 100 lbs will be shipped freight through a freight carrier of our choice. Customer Service If you have any questions before or after your purchase please use the "Ask a Question" button or Contact us via phone: (480) 980-7581 USA or +1 480-980-7581 International
