Us Free!3axis Wantai Nema23 Cnc Kit 57bygh115-003b 3a 425oz-in Dual Shaft&driver

US $240.00

CA, United States
Jun 9th

Open on mobile:
QR code

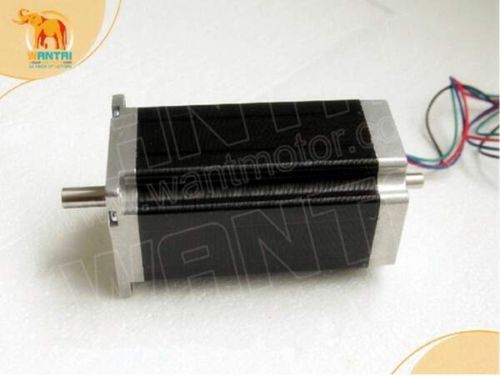

Hi,guys!Welcome to my shop! It's my honor to solve your any problem. Great News from Wantaimotor! Ship from USA warehouse,after payment,within 3-5 days for receiving goods. No taxes from customs, no damage, better service, please don't hesitate! This item includes: 3 pcs stepper motor 57BYGH115-003B dual shaft 3A 30Kg.cm(425oz-in) holding torque 3 pcs stepper motor driver DQ542MA 4.2A 50V 128microstep 1 pcs power supply:350W 36V 1 pcs breakout board&cable is free Attenteion:Pls confirm the shipping method and shipping fees before pay! 1)stepper motor Note:There is single flat shaft, dual flats shaft, round shaft, keyway shaft and screw thread shaft, 4 Leads, 6Leads and 8 Leads in different stepper motor with different type. Without informing, we'll send dual shaft to you! 2)stepper motor driver Introduction: DQ542MA is a type of two-phase hybrid stepping motor driver, the drive voltage of it is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is smiliar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DQ542MA runs under high speed, is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Features: High performance, low price Average current control, 2-phase sinusoidal output current drive Supply voltage from 18VDC to 50VDC Opto-isolated signal I/O Overvoltage, under voltage, overcurrent, phase short circuit protection 15 channels subdivision and automatic idle-current reduction 8 channels output phase current setting Offline command input terminal Motor torque is related to speed, but not related to step/revolution High start speed High holding torque under high speed Electrical specification: Input voltage 18-50VDC Input current < 4A Output current 1.0A~4.2A Consumption Consumption:80W; Internal Insurance:6A Temperature Working Temperature -10~45°C; Stocking temperature -40°C~70°C Humidity No condensation, no water droplets gas Prohibition of combustible gases and conductive dust weight 300GS 3) power supply Note: 1.All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25 of ambient temperature. 2.Tolerance:includes set up tolerance,line regulation and load regulation. 3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 4.Line regulation:min&max voltage of the rated load. 5.Load regulation:load from 0 to 100%. 4) breakout board Description Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power supply:+5VDC Built in C-class optical-coupler. High quality with surface-mount Tech. It can connection 6 drivers and control 6 motors in the same time. Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power voltage is 5VDC and support with MACH3 ect.software Built in optical-coupler. You can set these pins according to software as follows: Output pins:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 P2-X axis Pulse,P3-X axis Direction; P4-Y axis Pulse,P5-Y axis Direction; P6-Z axis Pulse,P7-Z axis Direction; P8-A axis Pulse,P9-A axis Direction; P14-B axis Pulse,P1-B axis Direction; P16-C axis Pulse,P17-C axis Direction; Input pins:P10,P11,P12,P13,P15 Set them for Emergency Stop and X Y Z Limit switch Description Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power supply:+5VDC Built in C-class optical-coupler. High quality with surface-mount Tech. It can connection 6 drivers and control 6 motors in the same time. Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power voltage is 5VDC and support with MACH3 ect.software Built in optical-coupler. You can set these pins according to software as follows: Output pins:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 P2-X axis Pulse,P3-X axis Direction; P4-Y axis Pulse,P5-Y axis Direction; P6-Z axis Pulse,P7-Z axis Direction; P8-A axis Pulse,P9-A axis Direction; P14-B axis Pulse,P1-B axis Direction; P16-C axis Pulse,P17-C axis Direction; Input pins:P10,P11,P12,P13,P15 Set them for Emergency Stop and X Y Z Limit switch We are professional stepper motor(stepping motor) supplier and Manufacuturer,and we can manufacture products according to customer's requirement! Shipping details: 1.Please confirm your Address carefully before you make the order. 2.We will ship the goods 3 days later after we receive your order and they will arrive the destination(most of the country) within 5-30 days. 3.Please contact us if you don’t receive the goods in 45 days.We will check the package and the reason within 3 day. Payment: 1.we accept paypal,credit card and bank transfer. 2. Payment must be made within 5 days of the auction end time. 3.We are not responsible for any custom duty and import tax. Returns: 1.If the products are damaged,please provide photos for us,we need them. 2.If you are not satisfied with the goods,please tell us the reasons,they are important . 3.Buyers are responsible for delivery cost. 4.Once receiving goods,we will refund you immediately. Feedback: 1.We rely on our reputation,so ,your feedback is extremely important for us.Please leave good feedback if you are satisfied with our goods and service. 2.Please give us the opportunity to solve any problem,we will do our best to solve the issues before leaving any negative feedback or opening any dispute on the site. Application: Our products are mainly used in Robotization,Spinning Automatization,Printing,Packing Medica Machine,Make-up Equipment,Communication,Household Appliance,Water Pump,Milling Machine,Engraver Machine,CNC Routers..ect automatic equipment of various trades. Contact me: Att:Zoe E-mail:zoe@wantmotor.com MSN:zongxueqin1992@outlook.com Skype:zongxueqin1992 Tel:0086-519-85138377 Mobile:0086-13813587529 All email will be answered within 24 hours.If you don’t receive our reply,please kindly re-send again and we will reply you asap.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	wantai
MPN	www.wantmotor.com
Model	57BYGH115-003B
Country/Region of Manufacture	China
