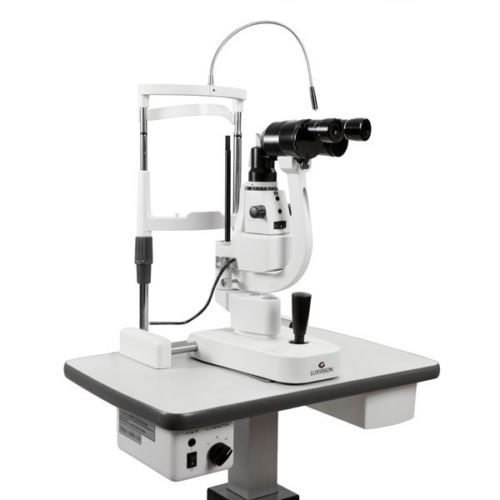

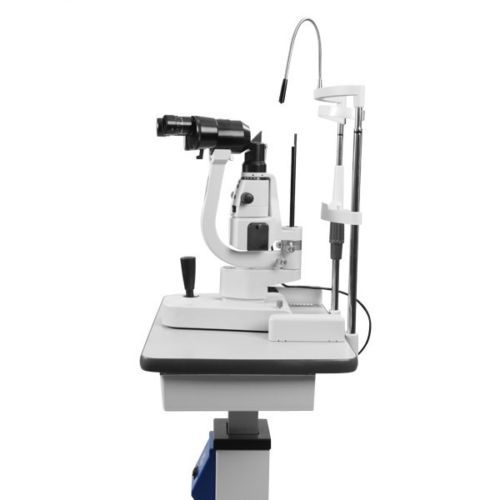

Features of the SL-700 Advanced Converging Stereoscope Microscope? Cross-Angle Stereovision Microscope ? Quick-Change 2-Step Magnification ? 10x Eyepiece ? Large Binocular Field-of-View ? Continuous Slit Rotation and Aperture Adjustment ? Three Built-in Illumination Pathway Filters ? Diffusion Lens ? Accepts Standard Applanation Tonometers ? High-Clarity Luminance Halogen Lamp ? Red LED Fixation Light for Accurate Diopter Compensation ? Ergonomically Designed Rheostat Illumination Control ? Chin-Rest Elevation Adjustment Knob ? Multidirectional Joystick ? Compact Tabletop and Accessory Drawer Advanced Converging Stereoscope Microscope Thanks to advanced converging binocular tubes with individually adjustable eyepieces, practitioners can expect sharp, distortion-free optics when they select Luxvision's SL-700 Advanced Converging Stereoscope Microscope. Quick-Change Two-Step Magnification Luxvision's SL-700 features an easy-to-change two-step magnification system that allows for a more detailed exam. Final magnification ratios are equivalent to 10x (?18mm) and 16x (?14.5mm) with the 10x eyepiece. Fine adjustments can also be made to the PD and optical correction. Wide Field of View with a Range of PD and Diopter Adjustment Luxvision's SL-700 Advanced Converging Stereoscope Microscope offers a very large binocular field of view of ?18mm and ?14.5mm, with a 51mm-82mm range of PD adjustment. The SL-700 also features diopter adjustments of ±6D using the 10x eyepiece. High Clarity Luminance and Built-in Filters The SL-700 utilizes a 6-volt, 20-watt high luminance halogen lamp to provide bright illumination and outstanding clarity. By shifting the unit's filter selection tray, you can easily select from three built-in Illumination Pathway Filters. Options include a heat absorption filter that aids in patient comfort during lengthy exams, a red-free filter that enhances structural contrast, and cobalt blue filter for use in fluorescein assessment. In addition, the SL-700 features a diffusion lens for enlarging the illumination field as well as for observation and photography at low magnification. Continuous Slit Rotation and Aperture Adjustment The SL-700 features an easy-to-adjust knob that enables users to modify slit width continuously from 0mm to 14mm. The slit becomes a circle at 14mm. The slit height also can be changed continuously, from 1mm to 14mm. The SL-700 offers a clear, broad field of view with four aperture diameters: 14mm, 9mm, 5.5mm, 0.3mm. Using precise movements and controls, operators can swing the main body of the slit horizontally to revolve the slit image at any angle in the vertical or horizontal direction, from 0° to 180°. An Ergonomic Design with Complete Control The SL-700 makes it simple to capture the necessary views. All of the unit's knobs, dials and controls are ergonomically designed with comfort and efficiency in mind. Rheostat-based adjustable illumination offers control of three different levels of brightness. The SL-700 also accepts standard applanation tonometers. Multidirectional Joystick Maneuver the SL-700 with ease using the intuitive multidirectional joystick. Precision adjustments are at your fingertips by simply turning and tilting the joystick. The base operation of the SL-700 offers the following movements: forward and back movement to 90mm; left and right movement to 100mm, fine movement to15mm and vertical movement to 30mm. Once you achieve the proper alignment, the base can be locked to prevent sliding. Small Footprint Luxvision's SL-700 Advanced Converging Stereoscope Microscope takes up minimal space without compromising features or quality. A compact work table is included with the ESL-1200. Also, the unit's accessory drawer is a useful addition to the unit's footprint and can be used to store the focusing test rod and other accessories. Specifications Microscope Type Cross-angle stereovision Model of Magnifying Change the objective for 2-grade magnification Eyepiece 10x Total Magnification Rate Objective x Eyepiece = Magnification Rate / Vision Field 1x 10x 10x ?18mm 1.6x 10x 16x ?14.5mm Range of P. D. Adjustment 10x eyepiece 55mm to 82mm Diopter Adjustment 10x 6D eyepiece Illumination Slit Projection Magnification 1.16x Slit Width Continuous from 0mm to 14mm(become a circle at 14mm) Slit Height Continuous from 1mm to 14mm Aperture Diameter 14mm, 9mm, 5.5mm, 0.3mm Slit Angle 0° to 180° continuously adjustable from vertical to horizontal Filter Piece Heat-Absorbing, Red-free, Blue Illumination Bulb 6V20W halogen bulb Movement Base Fore and Back Movement 90mm Left and Right Movement 100mm Fine Movement 15mm Vertical Movement 30mm Chin-Rest Parts Vertical Movement 80mm Fixation Target Red LED Power Source Input Voltage AC110V/220V ±10%A Input Frequency 50/60Hz Input Power 30VA Output Voltage Illumination bulb 4V, 5V, 6V Fixation target 6V Electric Safe Standard Conform to Standard IEC601 -1, Class I Type B Dimension and Weight Packing Box 720mm x 495mm x 480mm Total Weight 24 Kg Net Weight 21 Kg
