?usa Ship?3axis Nema23 Stepper/stepping Motor 428oz-in,3a Cnc Engraver, Mill

US $295.99

United States
Jan 29th

Open on mobile:
QR code

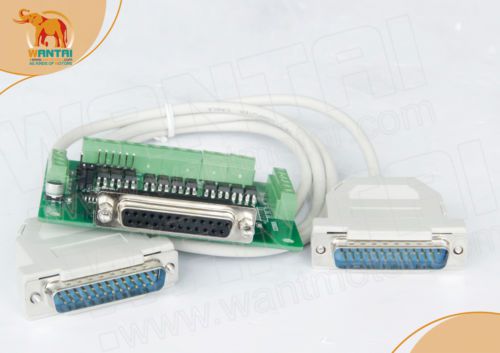

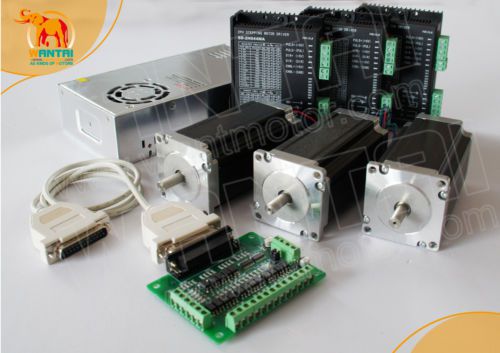

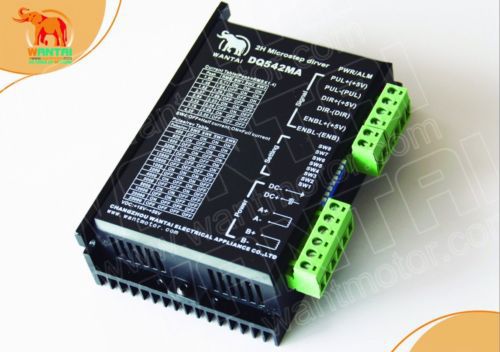

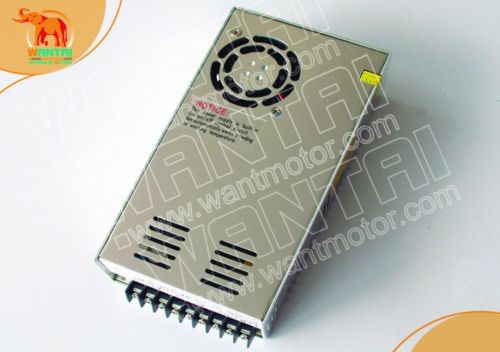

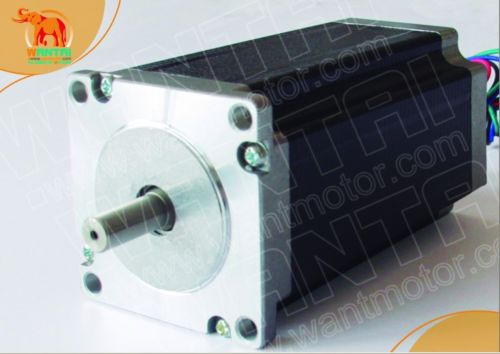

Great News from Wantaimotor! Ship from our Germany warehouse, after payment, within 3-5 days for receiving products! No taxes from customs, no damage, better service, only for 15 sets, please don't hesitate!Also Customers From France, Italy, Sweden,England, UK, Austria,Netherlands,Denmark,Belgium,Luxembourg,Estonia,Latvia, Lithuania, Poland, Romania, Slovakia, Slovenia, the Czech Republic, Hungary,Switzerland, Greece, Norway & All EU Countries can be shipped as well, no taxes, no damage, very fast, please don't hesitate :) This item includes: 3 PCS Nema 23 Stepper Motor Single shaft with 428oz-in holding torque, 3 PCS Stepper Driver with 4.2A DQ542MA replacing M542, 1 PCS Power Supply for 350W,36VDC, 1 PC DB25 Breakout Board & 1 Cable for free offering http://www.wantmotor.com 1, Stepper Motor Technical Specifications Part No.: WT57STH115-3004A/57BYGH115-003 Frame Size: NEMA23 Step Angle: 1.8 degree Voltage: 6.3VDC Current: 3 A/phase Resistance: 2.1Ohm/phase Inductance: 9mH/phase Holding torque: 30KG.CM 428oz-in Rotor inertia: 810 g-cm2 Detent torque: 0.89 kg-cm Number of wire leads: 4 Weight: 1.55KG Length: 115mm Shaft diameter: 8mm This model is for Single shaft, with 8mm motor shaft, 21mm front shaft length, round shaft! 2, Stepper Motor Driver with 4.2A Current, 128 Microstep DQ542MA is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DQ542MA runs under high speed, is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on. Features: l High performance, low price l Average current control, 2-phase sinusoidal output current drive l Supply voltage from 18VDC to 50VDC l Opto-isolated signal I/O l Overvoltage, under voltage, overcurrent, phase short circuit protection l 15 channels subdivision and automatic idle-current reduction l 8 channels output phase current setting l Offline command input terminal l Motor torque is related to speed, but not related to step/revolution l High start speed l High holding torque under high speed Electrical specification: Input voltage 18-50VDC Input current

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Wantai Motor
Firmware	Wantai Motor
Model	57BYGH115-003
Circuit Type	Wantai Driver
