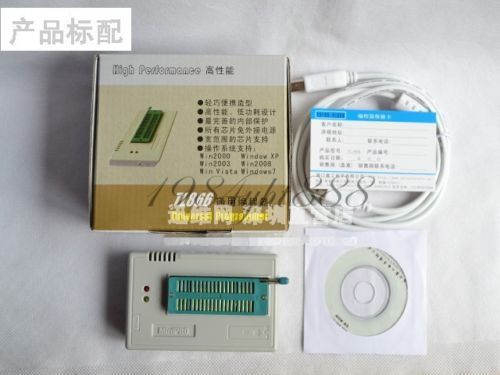

USB Universal Programmer EPROM FLASH CPLD MCU + TSOP32/40/48 to DIP40 Adapters Description: With its complete new professional design, True USB Universal programmer TL866CS is the first & exclusive universal programmer in the market that owns the unique features: 1.Neat robust enclosure; 40pin ZIF socket, fully automatic; Fast mode SPI support; 2. Support O/S XP32bit, Vista 32bit, Windows7 32bit, 3.Real True USB interface for both data transfer and power supply; 4. High speed/fastest; most-user-friendly; simplest-to-use; 5.Software update regularly; free life-time software upgrade/download; 6.Multi-languages support capability: Chinese, ,English; 7.supports thousands of most popular application devices (12000+) 8.Ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, xBox, Wii gaming machines EPROM duplicate, PIC/MCU development, newer laptop technology and newer desktop PC etc. It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44,TSOP48, 25VF SPI series, PLCC84,SST39VF3201, TE28F102, 27C1024, 27C1028,HD6475,29F800, 29LV800, 29F032. Features: 1. Complete new professional design with own robust enclosure and 40pin ZIF socket - Mini enclosure is designed to suit the portable and field convenient applications -40 -pins powerful pin drivers, no adapter required for any DIP devices 2. Fully automatic & no manual set-up needed (eliminate all jumpers & DIP-switch) -Fully automatic for efficient use and extends the programmer life time --Eliminates all jumpers on board, manual set-up for jumpers is no longer needed (all non-USB Willem use jumpers: 16 jumpers on PCB5.0C, 48 jumpers on Willem 1.5) -Eliminate the on-board DIP Switch, manual set-up for DIP switch is no longer needed. -This also makes much easier & very simple to use for end users. -Plug-and-play reduces the learning curve and save your precious time. 3. Fast mode SPI programming 4. True USB data transfer interface with PC/Laptop for newer laptop use as well as portable application. USB 2.0 (high speed, full speed) and 1.1 compatible interface -Uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable is eliminated & no longer needed for data transfer between PC and programmer board 5. Exponentially speed increase up to 10~20 times faster -Connects PC via high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC's. -It is capable of being up to 20 times faster than other existing printer port Willem (Parallel LPT Willems: PCB6.xx,PCB5.0B,PCB4.5C) programmers on reading & verification a high density flash device, this significantly saves your time and increases work efficiency as well as facilitates small scale production -Assembly language written programming algorithms run fast and reliable. Not affected by the PC speed changes and Windows 0/S variations. 6. Power supply capability: USB port automatic voltage control -Vcc supported among: 3.6V, 5V, 5.5V, 6.5V -Vpp support among: 3.3V ~ 21V -On-Board MCU for stable performance & automatic/accurate voltage control -Works best among other programmers for EPROMs 7.Serial numbers generators are available as standard or customer-specific functions. 8.There is over-current and over-voltage protection device for safety of the chip and programmer hardware. Built-in protection circuits eliminate damage of programmer and/or programmed device due to environment or operator failure. 9. The self test capability allows to run diagnostic part of software to thoroughly check the health of the programmer. 10. I.C. Tester Support TTL type: 54, 74 S/LS/ALS/H/HC/HCT series 11. The MiniPro software is especially developed for True USB TL866CS programmers -Free Life-time software download/upgrade, please click here for software revision history -Updates software and device algorithm regularity -Free IC device updates via web -Supports O/S: Win98SE, Me, XP, NT, 2000 & WinXP, Vista 32bit, , Windows7 32bit -Advanced software engineered to provide most user-friendly interface & simplest and easiest-to-use programmer version to save time and comfort to use -Multi-language support, such as: English, Chinese, -Supports most popular ECU, Satellite, xBox, Wii, BIOS, EPROM chips: SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800... -Supports the chips that LPT Willem are not capable of supporting, like 28F102,87C257 and more Supports TSOP48,PSOP44,16bit EPROM chips that 40 pin -TOP, EasyPro, Wellon are not capable of supporting -Supports 25LF SPI series, 25VF SPI series, 29F032... 12. Working with the adapters further expands the supported devices list -Packaging supported: TSOP48 (16bit & 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP,SOIC, MCS-51+, PLCC84, and etc. -Only one TSOP adapter support TSOP32/40/48 series, reduce expenses. 13. Covers the widest application areas amount all willem programmers -Car/automotive ECU chip tuning, airbag reset, mileage, memory device code read/write/program -Satellite large capacity device applications -On-spot/Field/portable applications & Small scale production -xBox, wii gaming chip refreshing & upgrading -PIC & MCU programming & development -Duplicate EPROM chips & Game machine repairing -Copier/Fax machine/printer main board repairing -VCD,DVD, color TV maintaining& repairing 14. Programmers speed Here, the real testing programming time that common chips need to spend is listed. These chips are not intended to pick out and you can see the similar chip reference table for the similar. The programming time is proportional to the capacity. That is to say, for the similar chip, the larger capacity the chip has, the more time the programming spends. Compared to similar products, some chips' programming speed is several times faster, even more than 10 times. For 4Mbits parallel FLASH ROM, the upgrade programmer (Version 3.01 or above) takes only about 36 seconds to finish programming (the total time of erase, write, verify). It only takes about 32 +79 seconds to read and write a 32MB TE28F320. In most cases, the parallel flash chip can be programmed at the same time it can be verified. The programming will be immediately stopped if there is an error. It only takes about 12 sec (read) +18 sec (write) to read and write an 8 Mbits of serial 25P80. It only takes about 98 sec +160 sec to read and write a chip of 64MB capacity. It supports common 8-PIN and 16-PIN 25 series chip with large capacity. So the programming speed is far beyond comparison. Note: 16MB or larger capacity flash chip cannot be programmed by general programmers because of programming speed, while the TL866 programmer can widely support 64MB Serial and parallel series of chips to 48 PIN. It provides with the remarkable quality that is distinct from other common programmer. Total time = erase time + programming time + check time The programmer in strict accordance with manufacturers require programming, and will never sacrifice the reliability of the programming in order to improve programming speed. This programmer can work strictly according to the manufacturer manual and never sacrifice the programming reliability in order to improve programming speed. Package : 1*True-USB TL866CS Programmer with High Quality 40pin ZIF 1* USB Cable (for both power supply and data communication) 1*Installation CD with latest MiniPro software 1*PLCC44-DIP44 socket adapter 1*PLCC32-DIP32 socket adapter 1*TSSOP8 and SOP16 adapter 1*PLCC IC extractor 1*150mil SOP8 socket adapter 1.200mil sop8 socket adapter TSOP32/40/48 to DIP40 Adapters for TL866CS TL866A USB Eprom Programmer Deccription: This is a newest complete standard 20mm TSOP adapter set for TL866CS/TL866A programmers . It is for both TL866CS programmer and TL866A Programmers. The adapter set can be used for all standard 20mm TSOP32,TSOP40, and the TSOP48 package chips. The set comes with TSOP48 ZIF board ,TSOP soldering board, and 4 base boards Package Included: 1.TSOP32 base board 2 TSOP48/SOP44 2-in-1 base board, 3.TSOP40A base board---8bit, 4.TSOP40B base board---16bit, 5.TSOP32/40/48 soldering top board. 6.TSOP48 ZIF socket top board SHIPPING All the items will be dispatched within 1 business day by Hong Kong Airmail after the payment is clear. Items will arrive in 7-25 business days. The arrival time depends on some factors and different areas: Please choose some local sellers, if you cannot wait patiently in the shipping time we declared. Once you purchase, please DON’T leave negative or neutral feedback if you haven’t received item in 30 days, because we have mentioned the shipping time repeatedly. Customs duty is obligation and liability of a citizen in your country, so buyer should be responsible for any tax and custom duty incurred. For example, Laser Pointer is unacceptable in some countries. Therefore, please double check your local customs policy carefully before purchase. Or, we will NOT be responsible for any failure delivery related destination customs issue. PAYMENT We accept PayPal only. We only ship item to your PayPal verified address. Payment must be received within 3 Days from the date of purchase. Please leave note in PayPal when making the payment if you have any special request (colors/size). Orders will be processed instantly and dispatched in same day normally, so we do NOT accept any Email/Message note before or after you place orders. REFUND & REPLACEMENT POLICY All the products we are selling include factory warranty, don’t cover items that have been abused, burned and damaged in any form. Please contact us via eBay Message if you have NOT received item in 30 days, we will check it with post office, and then resend or refund any missing item. In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it within 7 Days of receipt. The postage and packaging fee will NOT be refunded. We will not be responsible for the delivery or insurance charges incurred in returning item back to us. If you return an item purchased from us, it must be back in Factory Condition. This includes packaging, inserts, manuals etc. Please allow up to 5 Working Days for us to process your returned item. FEEDBACK & CONTACT US If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. If no response within 24 Hours, please check the spam in your mail box. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem. Please DON’T leave negative or neutral feedback if you haven’t received item in 30 days, because we have mentioned the shipping time repeatedly. On Sep-21-14 at 18:11:58 PDT, seller added the following information:
