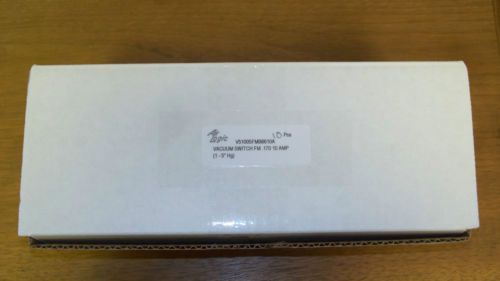

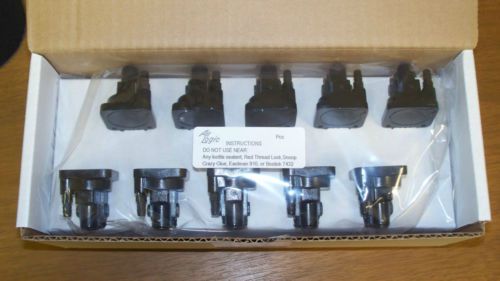

V-5100 Series Subminiature Vacuum Switch Box Of 10

US $120.00

Yreka, California, United States
Jan 29th

Open on mobile:
QR code

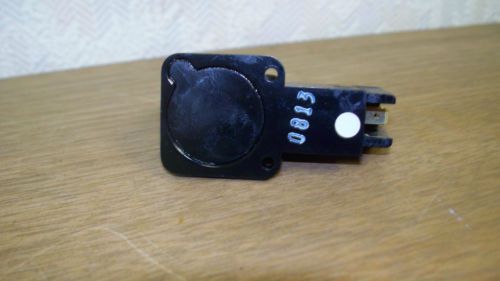

V-5100 Series Subminiature Vacuum Switch Box of 10, Part number V-5100-5 Below is information off their web site regarding this part. Features Low Cost Subminiature Size Low Differential Snap-Action Switch Fast Response The V-5100 Series Subminiature Vacuum Switches interface from vacuum to electrical control circuits; they are ideal for low differential vacuum applications. The switches are adjustable 1 to 28" Hg with a maximum signal pressure of 29.9" Hg. The switches have three electrical terminals: Normally Open, Normally Closed and Common. 15 AMP switches are standard, other amperages are available; see chart below. Four mounting styles are available: Flush Mount, Manifold Mount, Panel Mount, and Pipe Thread Mount. The Flush Mount has .125" diameter mounting holes for mounting on a flat surface. The Manifold Mount is designed to mount directly on pneumatic circuit boards or manifold subplates; a Buna-N o-ring is supplied. The Panel Mount has a unique thread that goes from 1/8-27 tapered pipe thread to 1/8-27 straight pipe thread; a mounting nut is supplied. The Pipe Thread Mount has 1/8-27 tapered pipe threads. The switches are provided with a B80 Barb, 10-32 UNF Barbed Fitting, for 1/16" I.D.tubing unless otherwise requested. Electrical Specifications Switch Action: Single pole, double throw Electrical Rating: 15 AMP is standard; no selection number is required. 0.1 to 25 AMP switches are available; see chart Electrical Switch: UL and CSA Approved, (UL# E12252 N) (CSA File# LR 42370) Electrical Connections: .187" quick-connect terminal Mechanical Specifications Operating Speed: Activate or release in 25 milliseconds Signal Pressure: 29.9" Hg maximum Adjustment Range: 1 to 28" Hg Temperature Limits: 40 degrees to 120 degrees F. (4 degrees to 49 degrees C) Materials Housing: Polysulfone Diaphragm: Polyurethane Spring: Stainless Steel or Music Wire Port Connections 10-32 female threads, furnished with barbed fitting: B80: 10-32 UNF Barbed Fitting for 1/16" I.D. tubing B85: 10-32 UNF Barbed Fitting for 1/8" I.D. tubing B86: 10-32 UNF Barbed Fitting for .170" I.D. tubing Accessory Connections F-5100-5-FT-3C: 5 Ft. - 5100 Wire Harness (20 gauge wire & 3 terminal connections) F-5100-10-FT-3C: 10 FT. - 5100 Wire Harness (20 gauge wire & 3 terminal connections) Mounting Flush Mount: .125" diameter mounting hole; use No. 4 self-tapping or 5-40 screw Manifold Mount: Two .125" diameter mounting holes; use No. 4 self-tapping or 5-40 screw (A Buna-N o-ring is supplied) Panel Mount: External 1/8-27 NPT to 1/8-27 NPS, internal threads are 10-32 UNF. 7/16" diameter mounting hole is required. (A mounting nut is supplied) Pipe Thread Mount: 1/8-27 male tapered tapered pipe threads with 10-32 UNF internal threads Other Information V-5100 Part Number Selection 5100 Series Switch Dimensions ( ) = Metric Dimensions Please order by Model Number, Adjustment Range, Mounting Style, Port Connection, and Switch Selection. (A B80 Barbed Fitting will be supplied if a Port Connection is not specified.)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Air Logic
MPN	V-5100-5
Model	Vacuum Switch
Country of Manufacture	United States
